Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 77
GMK4100L-1
23.11.2017
3.2.24 Access ladders and ladders
Different access ladders and ladders are on the truck crane depending on
the version.

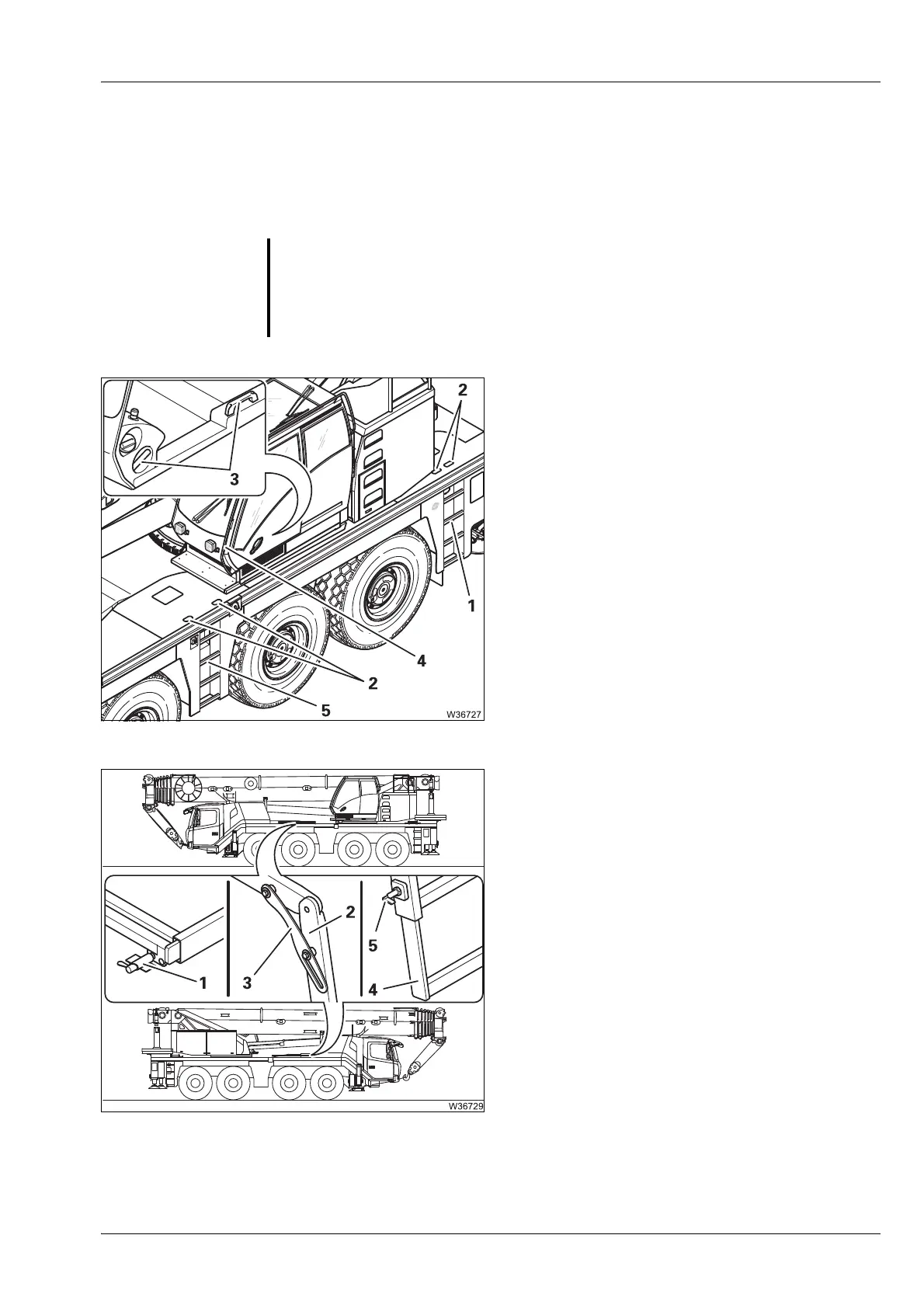

Fixed ladders
Access ladders (1) and (5) with hand holes (2)
are located on both sides.
When the crane cab door is open, the
handles (3) can be reached.
The handle (4) is located on the outside of the
crane cab.
For the version with the large receptacle, the
access ladders (5) are replaced by swing-out
ladders.
Swing-out ladders
– Folding out
• Release the spring latch (1).
• Swing the ladder (2) outwards and fold
downwards – locking bar (3) engages.
• If need be – engage the spring latch (5) and
pull out another access ladder (4).
s
G
Hazard due to unsecured ladders
Always secure the ladders before driving. The prevents the ladders falling
down or folding out whilst driving and thus endangering other vehicles.
