Operating elements for crane operation
9.1 Overview of the operating elements
9 - 88 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

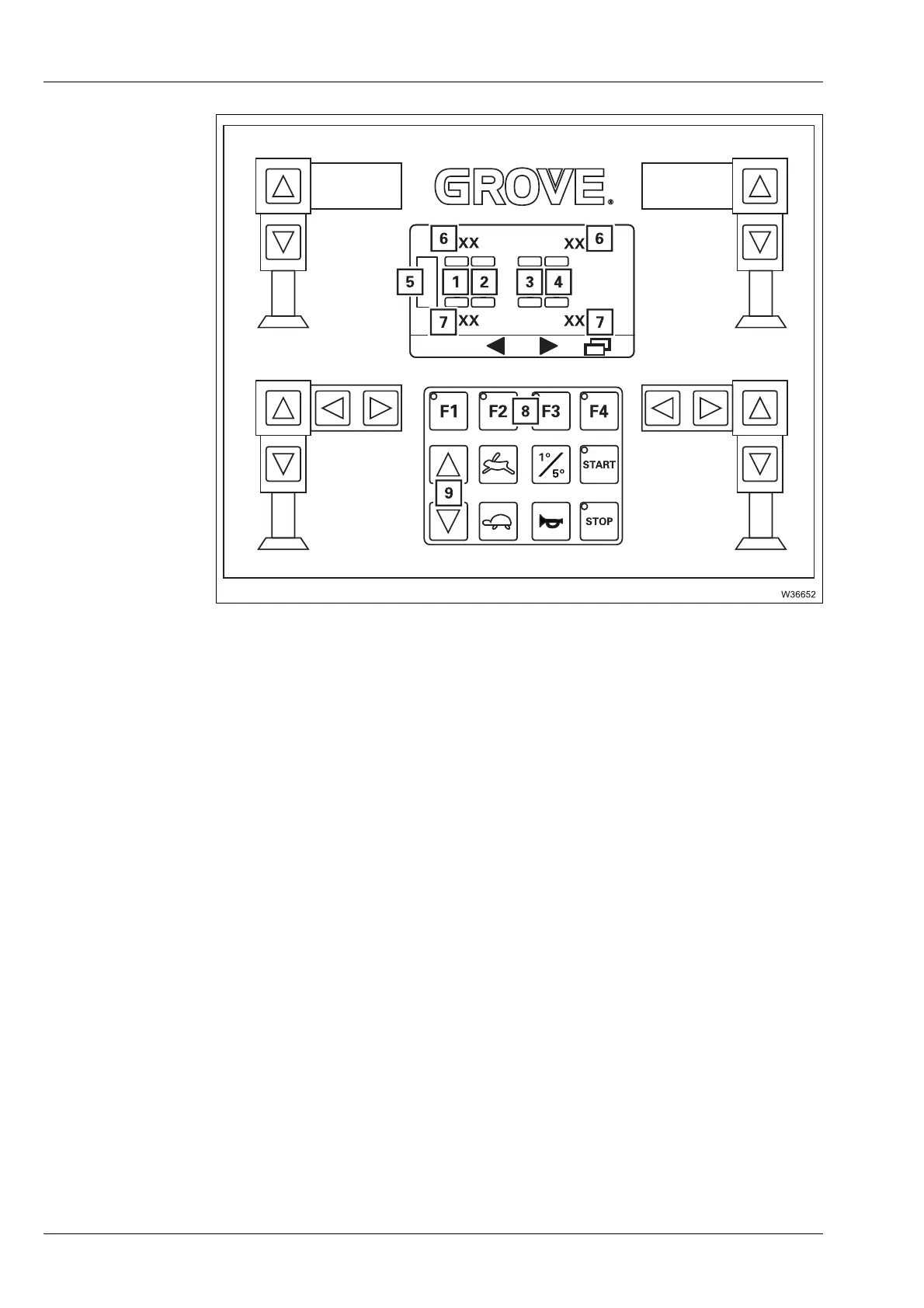

Raise axle menu
1 to 4 Pre-selection display
à p. 9 - 106
5 Directional indicator
6 Wheel load display, opposite
à p. 9 - 107
7 Wheel load display, operator's side
à p. 9 - 107
8 Pre-selecting wheels
à p. 9 - 106
9 Lifting/lowering wheels
à p. 9 - 107
