2016 OWNERS MANUAL / 0163

The Tournament Mode is limited to the set speed of the event.

The Training Mode operates like the Tournament Mode without the

set speed limitation.

SLALOM SCREEN

TOURNAMENT OR TRAINING

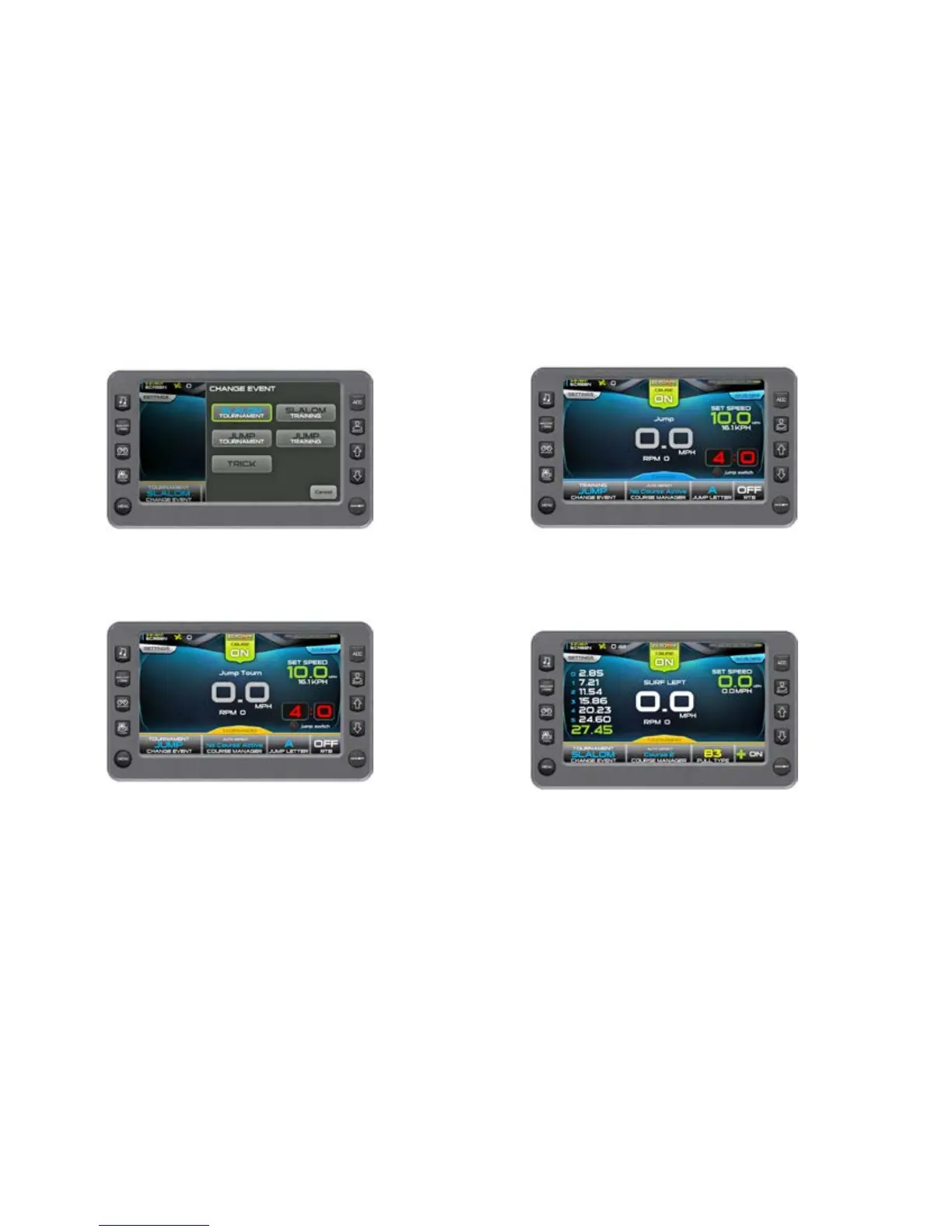

The screen illustrates the display available when the event being

tracked is the Slalom event; the three-event feature is turned on

and is in tournament mode. The Touch Commands aid in setting up,

controlling and tracking the Slalom event.
