Powerhead
Page 4A-20 90-8M0065421 NOVEMBER 2012
Powerhead Disassembly
Oil Pan Removal

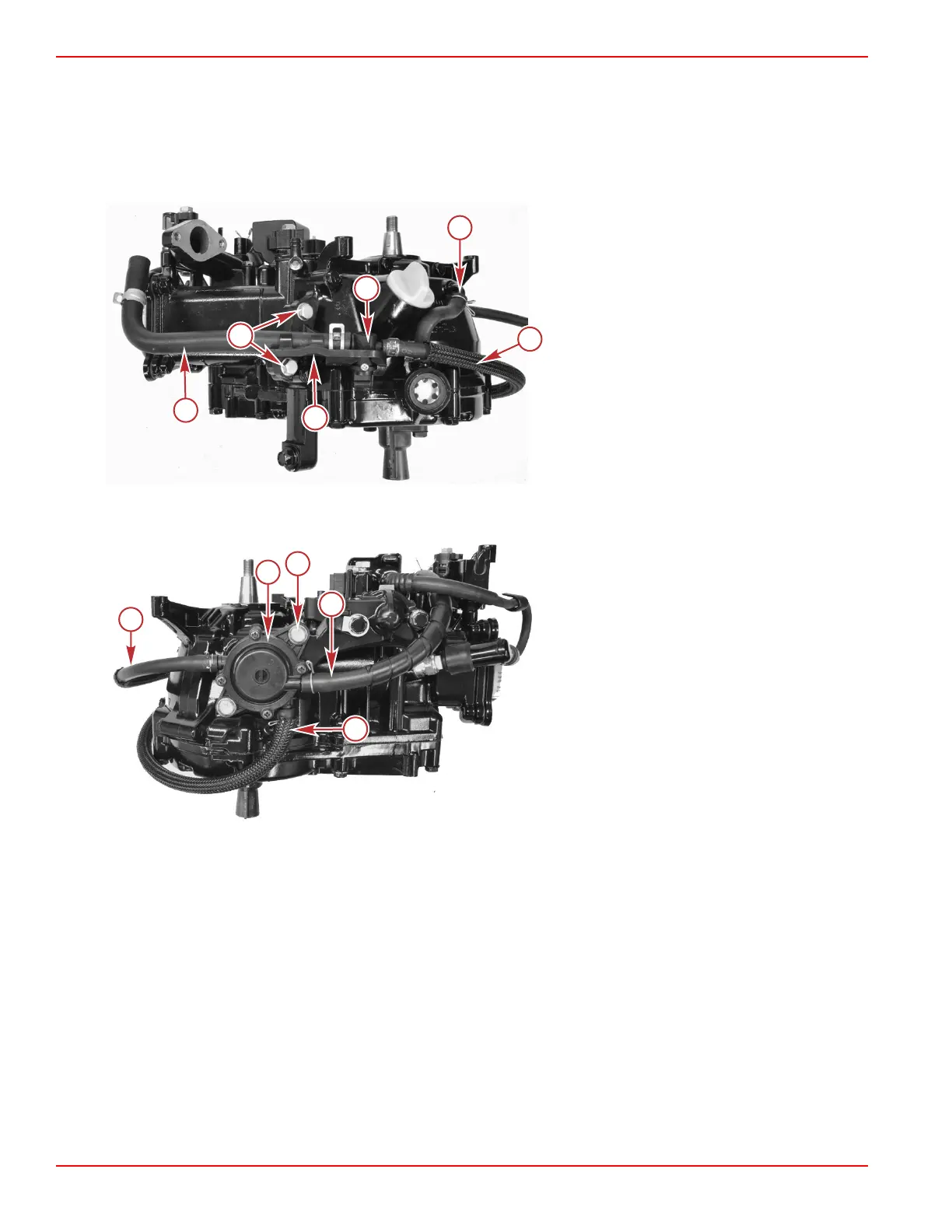

1. Remove the oil sight gauge hose.
2. Remove the fuel shutoff valve/hose assembly.
3. Remove the fuel shutoff valve bracket.
a - Oil sight gauge hose
b - Fuel pump inlet hose
c - Fuel shutoff valve
d - Fuel shutoff valve bracket
e - Bolt (M6 x 20) with washer
f - Fuel tank outlet hose
4. Remove the hoses from the fuel pump. Wipe up any spilled fuel immediately.
5. Remove the two bolts securing the fuel pump.
a - Fuel pump
b - Bolt (M6 x 30) (2)
c - Pulse hose
d - Hose from the fuel shutoff valve
e - Hose to the carburetor
6. Remove the eight bolts securing the oil pan to the cylinder block.
7. Remove the oil pan.
8. Remove the oil pan/cylinder block gasket.
