Gear Housing
Page 6A-22 90-8M0065421 NOVEMBER 2012

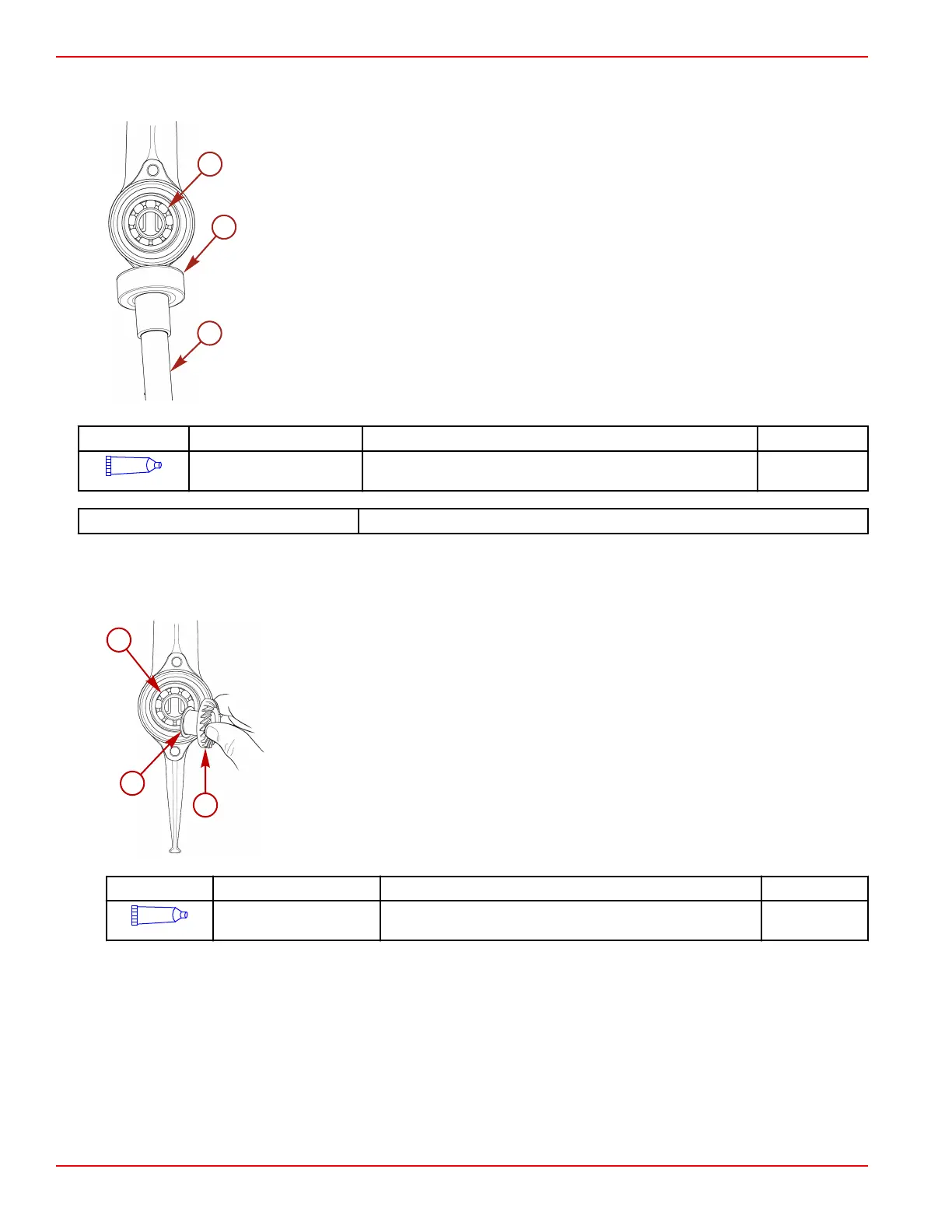

Lubricate the outside diameter of the bearing with Premium Gear Lubricant. Position the bearing in the gear housing. Seat the
bearing in the gear housing using a mandrel and a driver from the bearing removal and installation kit.
a - Bearing
b - Mandrel (38628)
c - Driver (91‑37323)
Tube Ref No. Description Where Used Part No.
82
Premium Gear Lubricant Outside diameter of forward gear bearing 92-858058K01
Bearing Removal and Installation Kit 91‑31229A7
Forward Gear
1. Lubricate the forward gear bronze propeller shaft bearing and the roller bearing surface with Premium Gear Lubricant.
2. Place the forward gear with the shim (retained) into the forward bearing.
a - Forward bearing
b - Shim
c - Forward gear
Tube Ref No. Description Where Used Part No.
82
Premium Gear Lubricant Forward gear bronze bearing 92-858058K01
b
c
a
b
c
25616
c
a
b
c
25617
