Tiller Handle
Page 7B-6 90-8M0065421 NOVEMBER 2012

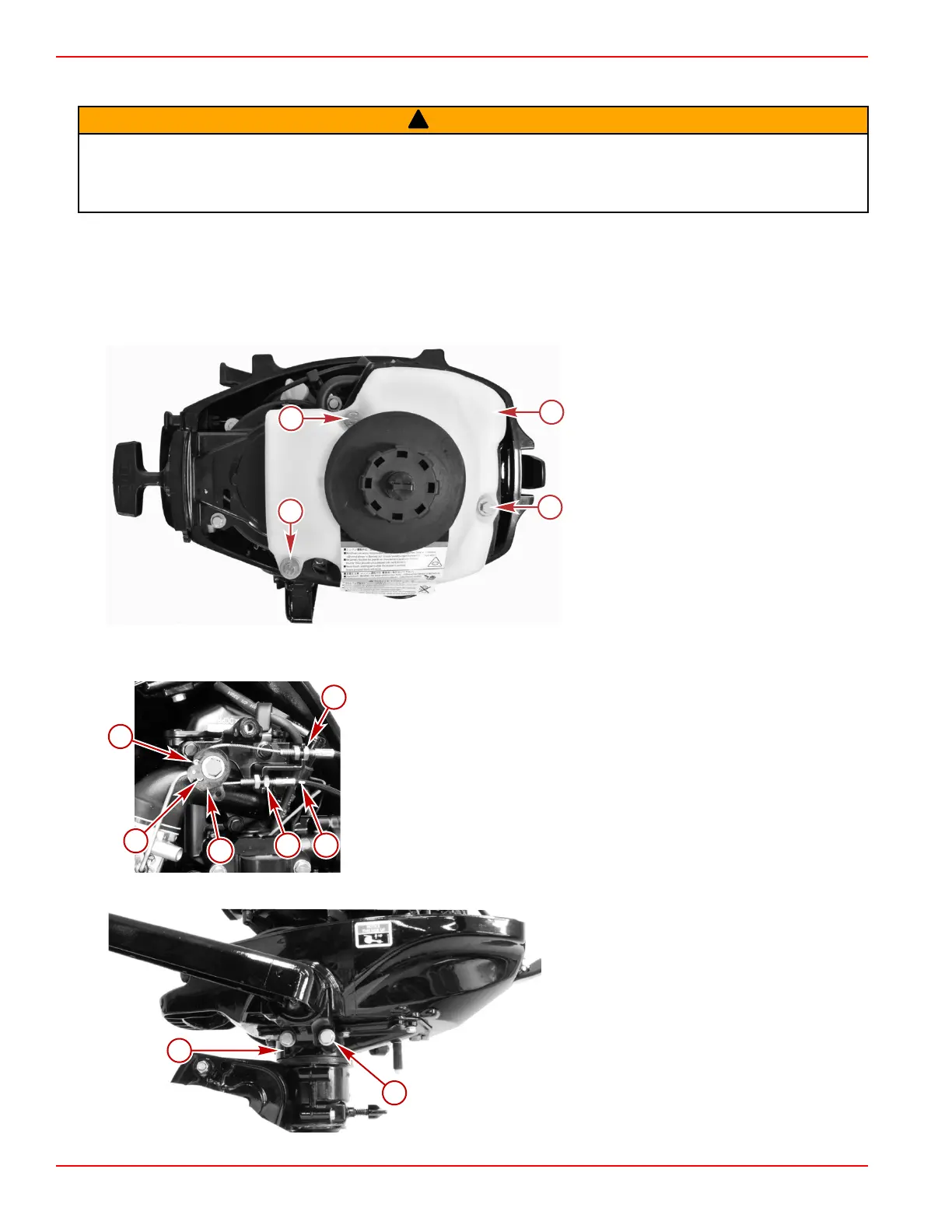

Tiller Handle Removal
!
WARNING
Fuel is flammable and explosive. Ensure that the key switch is off and the lanyard is positioned so that the engine cannot
start. Do not smoke or allow sources of spark or open flame in the area while servicing. Keep the work area well ventilated
and avoid prolonged exposure to vapors. Always check for leaks before attempting to start the engine, and wipe up any
spilled fuel immediately.
1. Remove the top cowl.
2. Drain the fuel tank.
IMPORTANT: Use an approved container to collect and store the fuel. Wipe up any spillage immediately. Materials used to
contain spillage must be disposed of in an approved receptacle. Any fuel system service must be performed in a
well‑ventilated area.
3. Remove the three bolts and washers securing the fuel tank to the engine, and remove the fuel tank.
a - Fuel tank
b - Bolt and washer (M6 x 25) (3)
4. Place a match mark on the acceleration throttle cable as shown.
5. Loosen the throttle cable jam nuts and remove the throttle cable ends from the throttle drum.
a - Jam nuts (two per cable)
b - Match mark on acceleration throttle cable
c - Throttle drum
d - Throttle cable ends
6. Remove the two bolts securing the steering bracket to the bottom cowl. Remove the steering bracket and tiller handle.
a -
Tiller handle mounting bolt and washer (M8 x
35) (2)
b - Steering bracket
To Next Page
