Tiller Handle
90-8M0065421 NOVEMBER 2012 Page 7B-7
Tiller Handle Disassembly
1. Remove the screw from the tiller handle grip. Slide the grip off of the tiller handle.
2. Loosen the friction knob.
3. Remove the screw from the tiller handle bracket. Remove the throttle shaft from the tiller handle.
4. Place a match mark on the acceleration throttle cable and cable end.
5. Remove the cable ends from the pulley on the throttle shaft.
6. Remove the throttle shaft from the tiller handle.

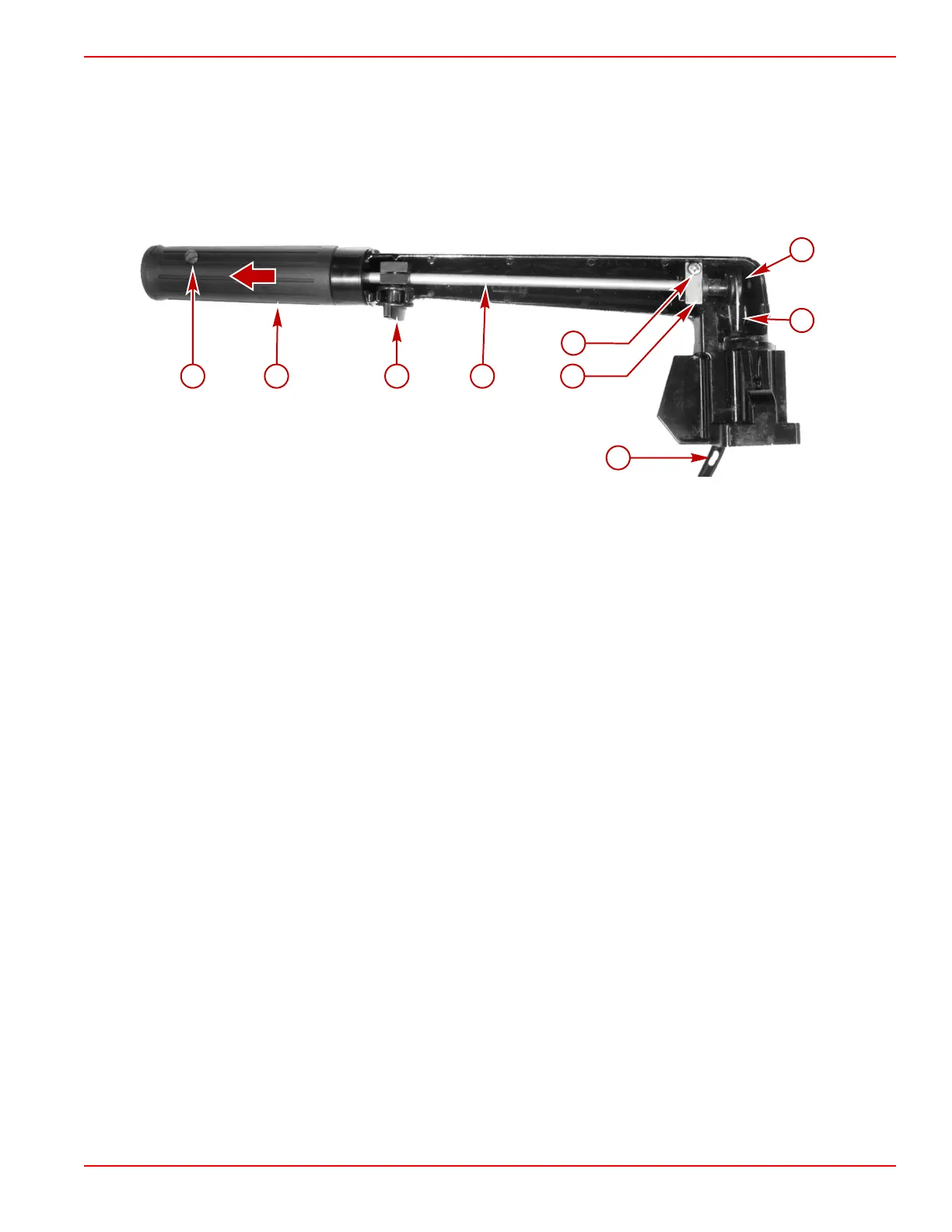

a - Tiller handle screw
b - Grip
c - Friction knob
d - Throttle shaft
e - Screw
f - Bracket
g - Pulley
h - Acceleration throttle cable
i - Match mark on acceleration cable
7. Remove the throttle cables from the handle.
Tiller Handle Reassembly
NOTE: The deceleration and acceleration cables refer to the direction that the cable ends pull at the throttle drum on the
powerhead.
1. Install the throttle friction components onto the throttle shaft.
2. Install the throttle shaft into the tiller handle.
26022
a c
db
e
f
g
h
i
