Gear Housing
90-8M0065421 NOVEMBER 2012 Page 6A-15

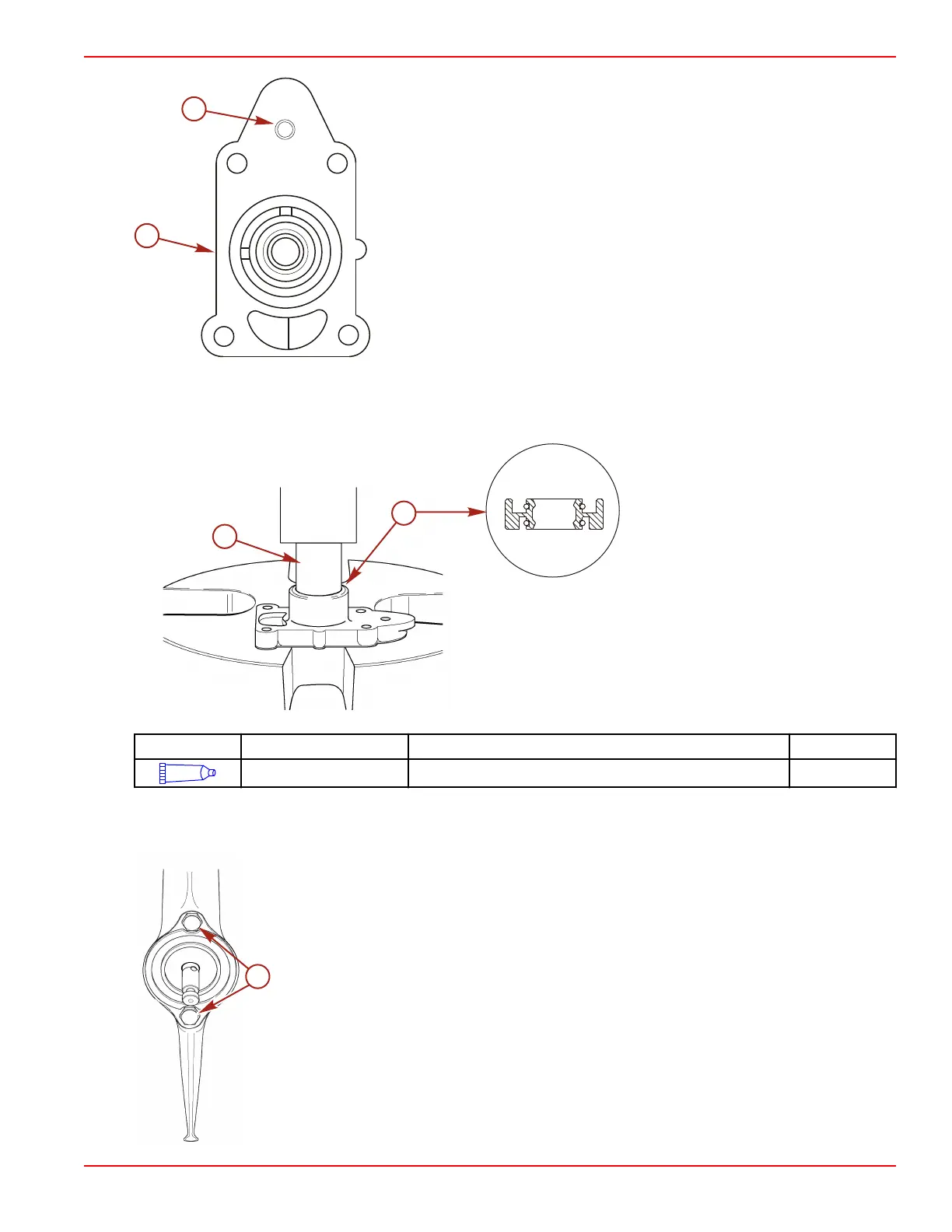

a - Pump base
b - O‑ring
8. The water pump base seal should be replaced as a normal repair procedure. Use a punch to remove the seal, being
careful not to damage the pump base seal surface. If the surface is damaged, replace the water pump base.
9. Apply 2‑4‑C with PTFE to the new seal lips. Press the new seal into the pump base with a 16 mm (11/16 in.) socket.
a - Seal
b - Socket
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Water pump base seal lips 92-802859A 1
Bearing Carrier and Propeller Shaft
1. Remove the two bolts and flat washers.
a - Bolts and flat washers
To Next Page
