Carburetor and Fuel Pump
Page 3A-20 90-8M0065421 NOVEMBER 2012
5. Clean the carburetor body, float bowl, and components in an ultrasonic cleaner. Follow the instructions of the
manufacturer.
Carburetor Assembly

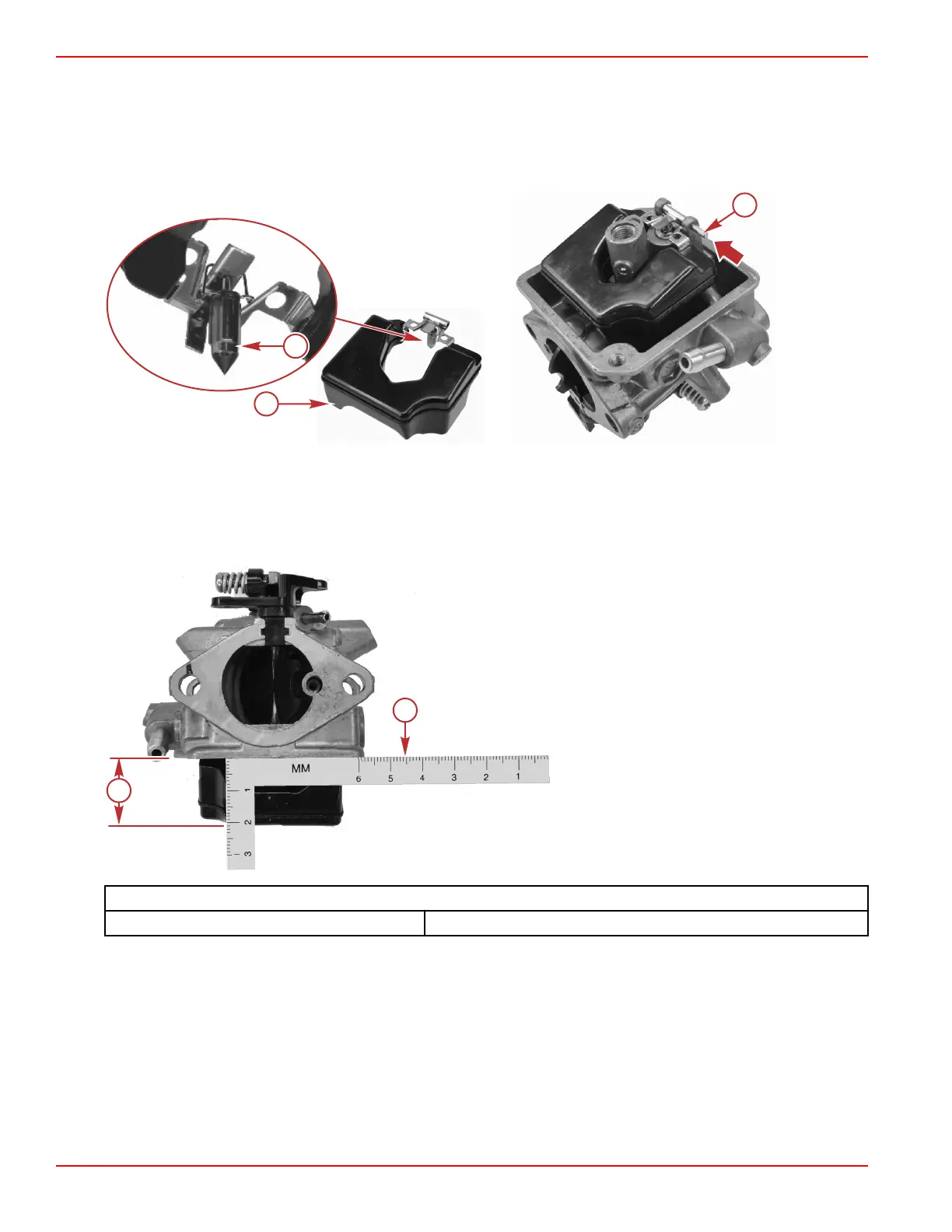

1. Install the inlet needle assembly onto the float arm.
2. Install the float. Push in the float pin in the direction of the arrow.
a - Inlet needle assembly
b - Float
c - Knurled end of float pin
3. Check the float level using a carburetor scale. Adjust the float level by bending the float arm.
a - 21 mm (0.827 in.)
b - Carburetor scale (obtain locally)
Float Level Measurement
Float level 21 mm (0.827 in.)
