Recoil Starter
Page 8A-6 90-8M0065421 NOVEMBER 2012
Recoil Starter Removal
!
WARNING
Fuel is flammable and explosive. Ensure that the key switch is off and the lanyard is positioned so that the engine cannot
start. Do not smoke or allow sources of spark or open flame in the area while servicing. Keep the work area well ventilated
and avoid prolonged exposure to vapors. Always check for leaks before attempting to start the engine, and wipe up any
spilled fuel immediately.
1. Remove the top cowl.
2. Remove the three bolts and washers securing the fuel tank to the engine.
3. Drain the fuel tank.
IMPORTANT: Use an approved container to collect and store the fuel. Wipe up any spillage immediately. Materials used to
contain spillage must be disposed of in an approved receptacle. Any fuel system service must be performed in a
well‑ventilated area.
4. Remove the fuel tank from the engine. Position the fuel tank to prevent fuel leakage.

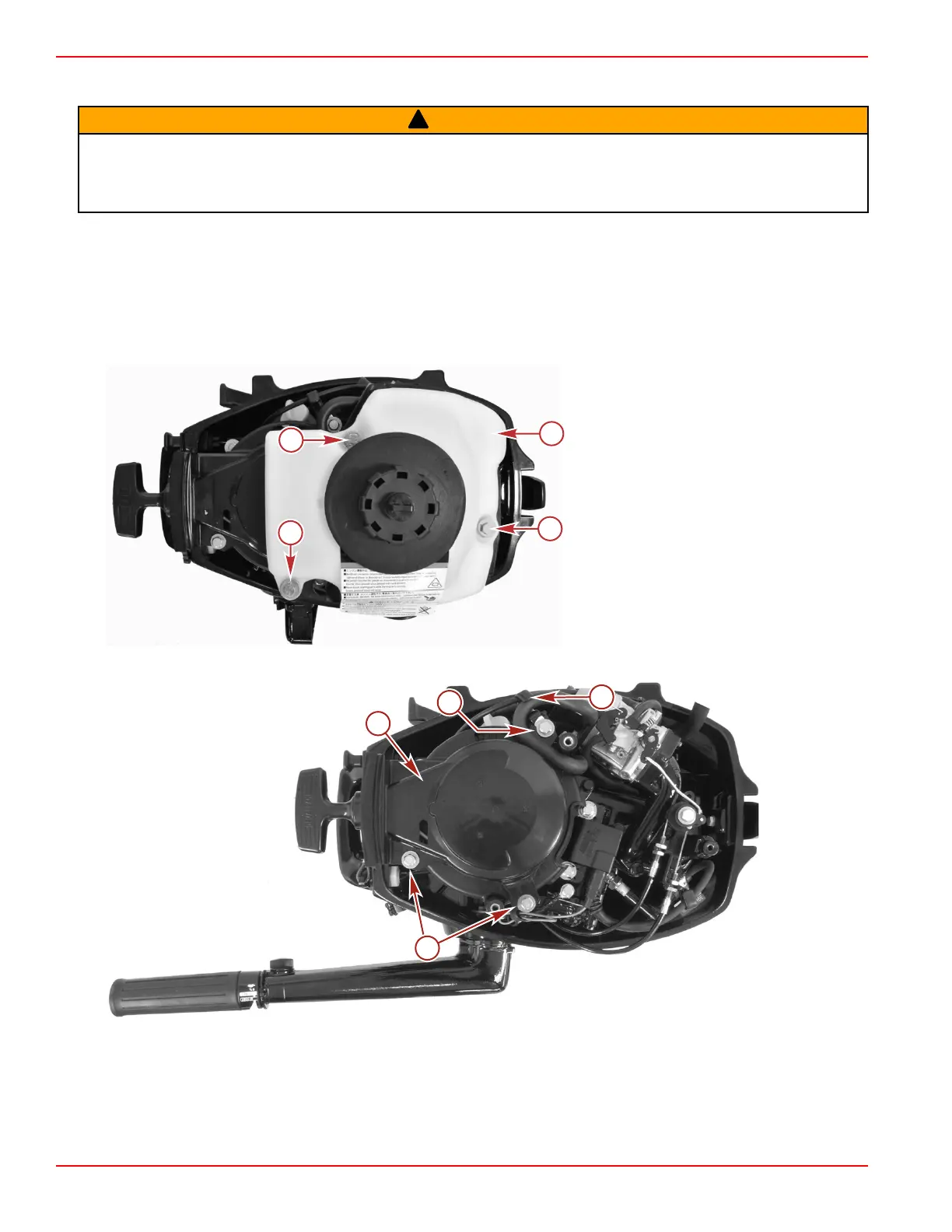

a - Fuel tank
b - Bolt and washer (M6 x 25)
5. Remove the three bolts securing the recoil starter assembly. Remove the recoil starter assembly from the outboard.
a - Recoil starter assembly
b - Bolts and washers
c - J‑clamp
