Mercury FourStroke 3.5 User Manual

General Information
90-8M0065421 NOVEMBER 2012 Page 1C-3

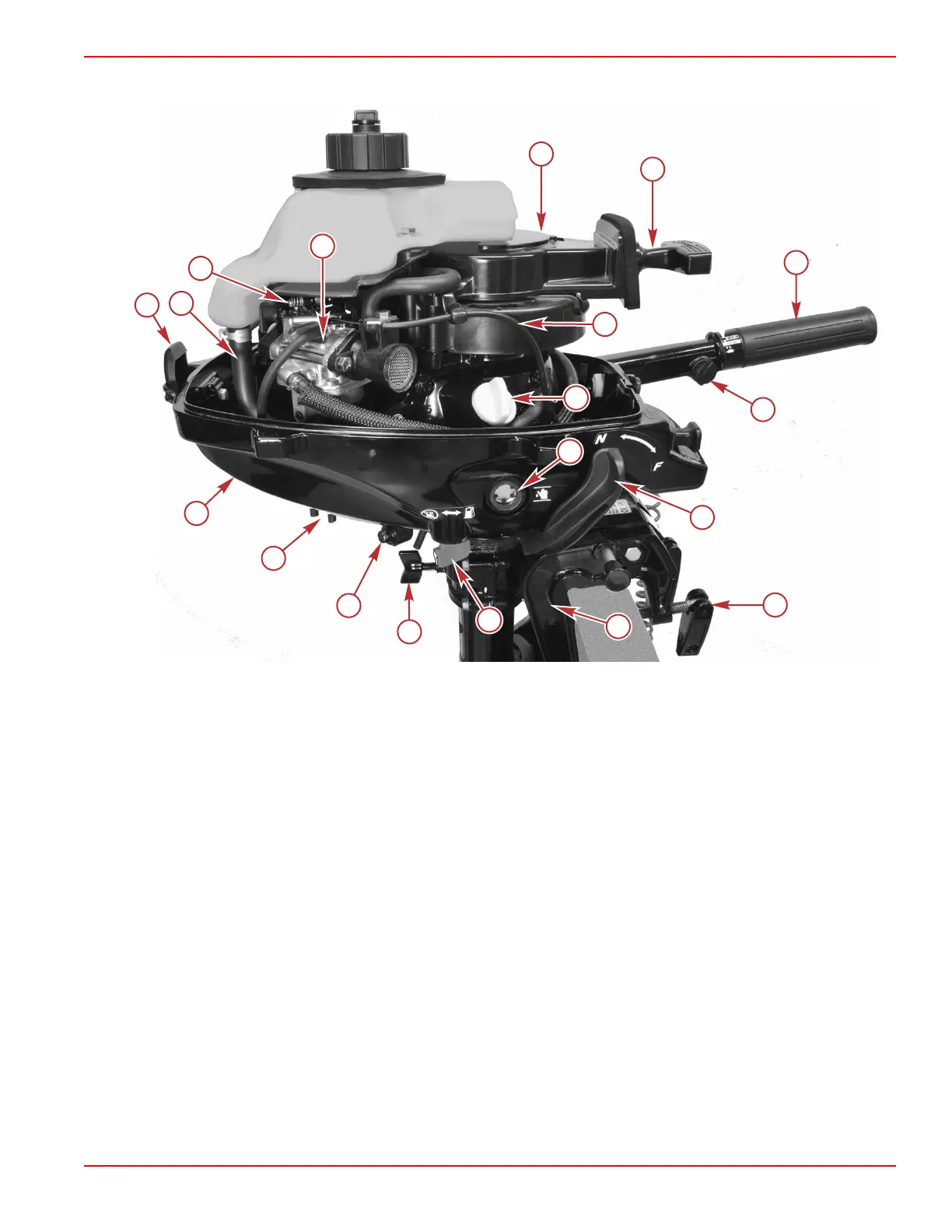

2/2.5/3.5 FourStroke Starboard View
a - Recoil starter
b - Recoil starter handle
c - Throttle grip
d - Throttle friction knob
e - Shift lever
f - Clamp handle
g - Clamp bracket
h - Choke cable
i - Oil fill cap
j - Oil level sight window
k - Fuel tank on/off valve
l - Steering friction knob
m - Oil drain plug
n - Carburetor vent hoses
o - Bottom cowl
p - Rear cowl latch
q - Fuel tank outlet hose
r - Idle speed screw
s - Carburetor
49955
a
b
c
d
f
e
h
i
j
k
l
m
n
o
p
q
r
s
g

Mercury FourStroke 3.5 Specifications

General

Brand	Mercury
Model	FourStroke 3.5
Category	Outboard Motor
Language	English
