Mercury FourStroke 3.5 User Manual

Outboard Installation
Page 1D-4 90-8M0065421 NOVEMBER 2012

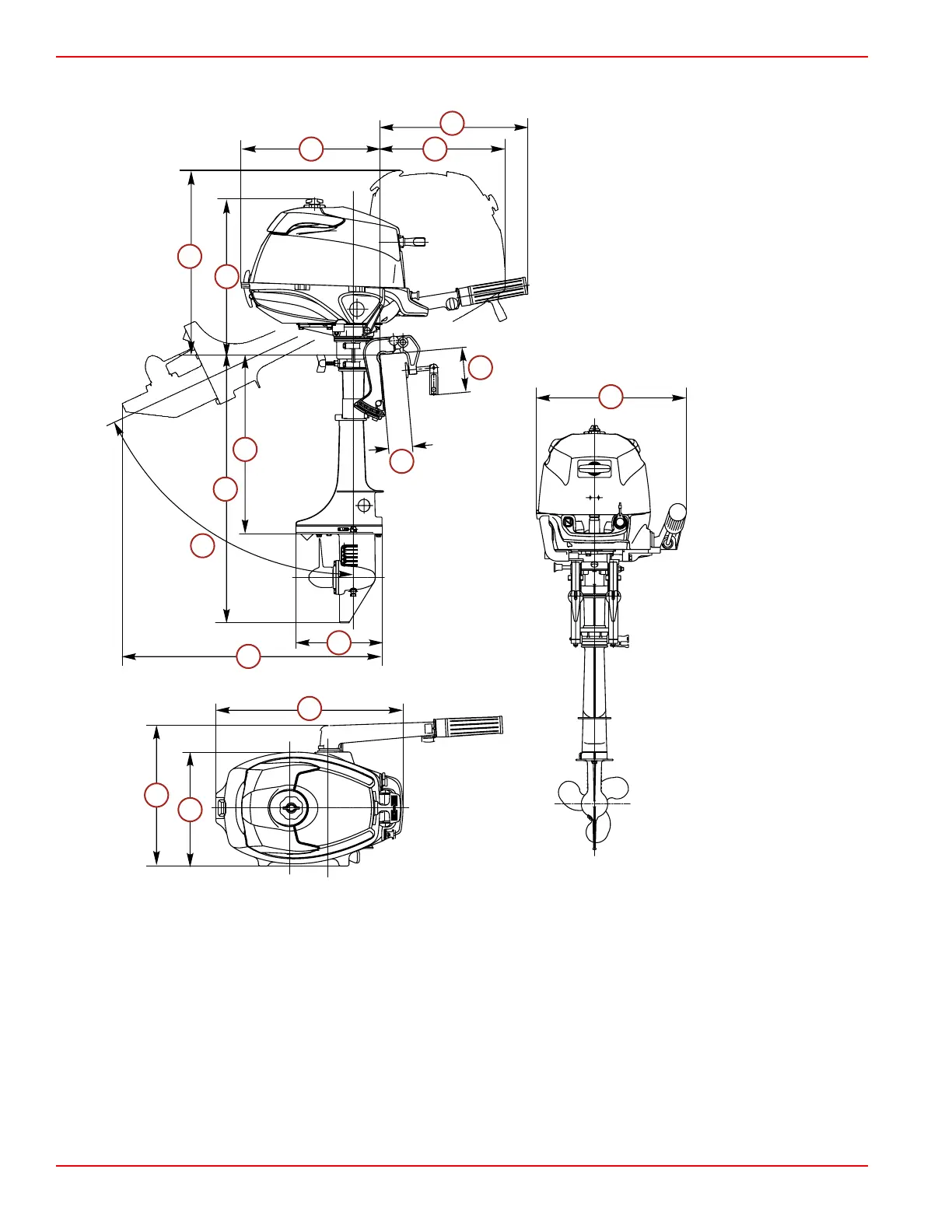

Installation Drawings
a - 377 mm (14.8 in.)
b - Short shaft ‑ 649 mm
(25.5 in.); long shaft ‑
776 mm (30.6 in.)
c - Short shaft ‑ 434 mm
(17.1 in.); long shaft ‑
561 mm (22.1 in.)
d - 446 mm (17.6 in.)
e - 108 mm (4.3 in.)
f - 358 mm (14.1 in.)
g - 336 mm (13.2 in.)
h - 303 mm (11.9 in.)
i - 58 mm (2.3 in.)
j - 208 mm (8.2 in.)
k - 628 mm (24.7 in.)
l - 363 mm (14.3 in.)
m - 340 mm (13.4 in.)
n - 276 mm (10.9 in.)
o - 453 mm (17.8 in.)
p - 65°
a
b
c
d
e
f
g
h
i
j
k
p
l
o
n
m
26743
