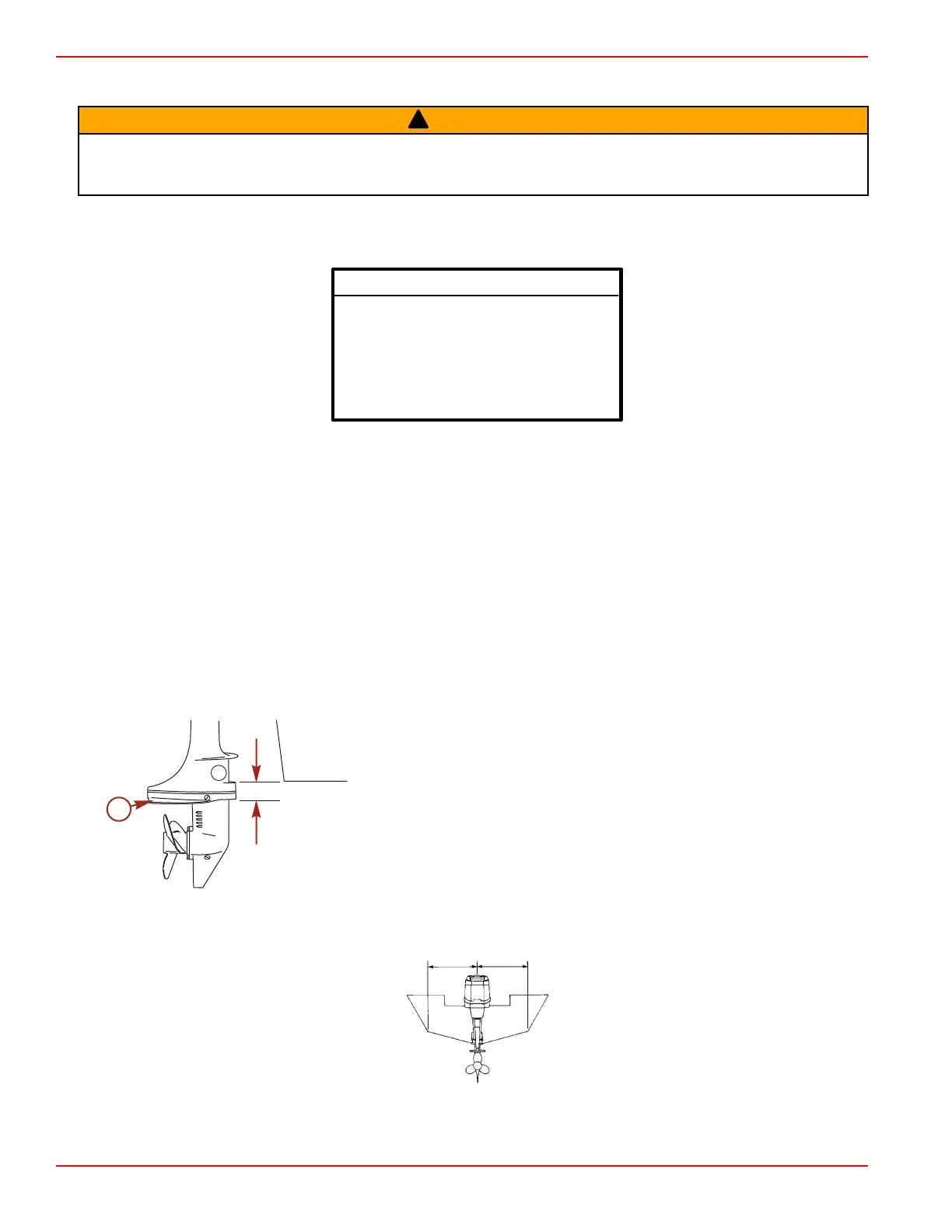

Outboard Installation
Page 1D-2 90-8M0065421 NOVEMBER 2012
Boat Horsepower Capacity
!
WARNING
Exceeding the boat's maximum horsepower rating can cause serious injury or death. Overpowering the boat can affect boat
control and flotation characteristics or break the transom. Do not install an engine that exceeds the boat's maximum power
rating.
Do not overpower or overload your boat. Most boats will carry a required capacity plate indicating the maximum acceptable
power and load as determined by the manufacturer following certain federal guidelines. If in doubt, contact your dealer or the
boat manufacturer.
U.S. COAST GUARD CAPACITY
MAXIMUM HORSEPOWER XXX
MAXIMUM PERSON
CAPACITY (POUNDS) XXX
MAXIMUM WEIGHT
CAPACITY XXX
26777
Selecting Accessories for Your Outboard
Genuine Mercury Precision or Quicksilver Accessories have been specifically designed and tested for your outboard. These
accessories are available from Mercury Marine dealers.
IMPORTANT: Check with your dealer before installing accessories. The misuse of approved accessories or the use of
nonapproved accessories can damage the product.
Some accessories not manufactured or sold by Mercury Marine are not designed to be safely used with your outboard or
outboard operating system. Acquire and read the installation, operation and maintenance manuals for all your selected
accessories.
Installing the Outboard
Boat Transom Height Requirement
Measure the transom height of the boat. The anti‑ventilation plate should be 25–50 mm (1–2 in.) below the bottom of the boat.
a - Anti‑ventilation plate
Installing the Outboard on the Transom
1. Place the outboard on the centerline of the transom.
