Shift Linkage
90-8M0065421 NOVEMBER 2012 Page 7A-7

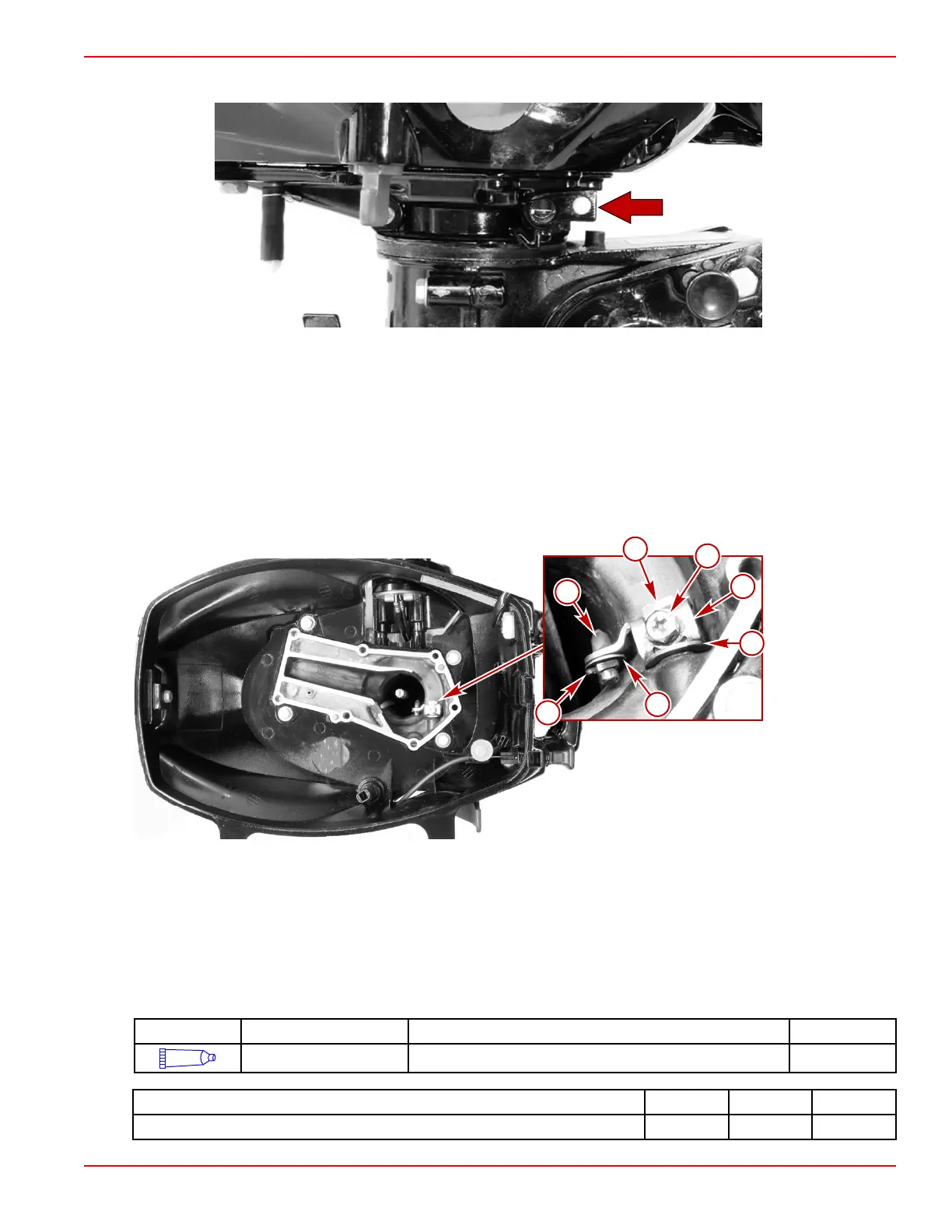

7. Remove the detent ball and spring from the driveshaft housing.
26790
Shift Linkage Installation
1. Install the spring and detent ball into the driveshaft housing.
2. Lubricate the O‑rings and shaft on the shift lever with 2‑4‑C with PTFE.
3. Install the shift lever into the driveshaft housing.
4. Install a washer onto the shift lever.
5. Install the shift shaft lever onto the shift lever. Secure with the screw. Tighten the screw to the specified torque.
6. Install the upper shift shaft into the shift shaft lever.
7. Install a washer and cotter pin.
a - Shift lever
b - Screw
c - Shift shaft lever
d - Washer
e - Washer
f - Cotter pin
g - Upper shift shaft
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Shift lever shaft and O-rings 92-802859A 1
Description Nm lb‑in. lb‑ft
Screw (M5 x 12) 4 35
a
b
c
d
e
f
g
26781
