Carburetor and Fuel Pump
Page 3A-16 90-8M0065421 NOVEMBER 2012

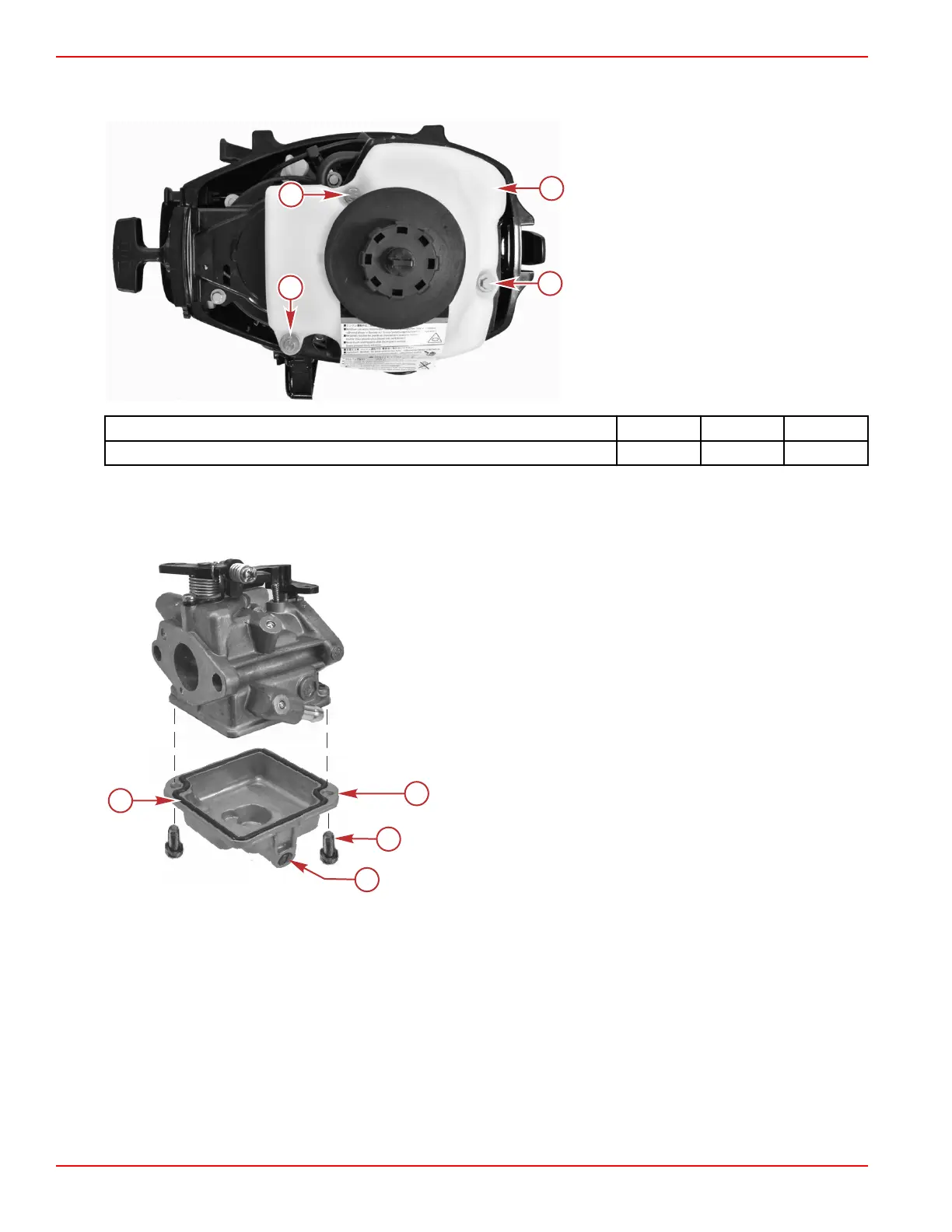

13. Install the fuel tank onto the engine. Secure the fuel tank with three bolts and washers. Tighten the bolts to the specified
torque.
a - Fuel tank
b - Bolts and washers
Description Nm lb‑in. lb‑ft
Fuel tank bolts 6 53
Carburetor Disassembly
1. Remove the drain screw and drain the carburetor before disassembly.
2. Remove the two screws securing the float bowl. Remove the float bowl.
a - Float bowl
b - Screw
c - Drain screw
d - O‑ring gasket
50010
a
b
b
b
50770
a
b
c
d
