Ignition
90-8M0065421 NOVEMBER 2012 Page 2A-7
Puller Set FT8948‑1
Description Nm lb‑in. lb‑ft
Flywheel puller bolts 6 53
Installation

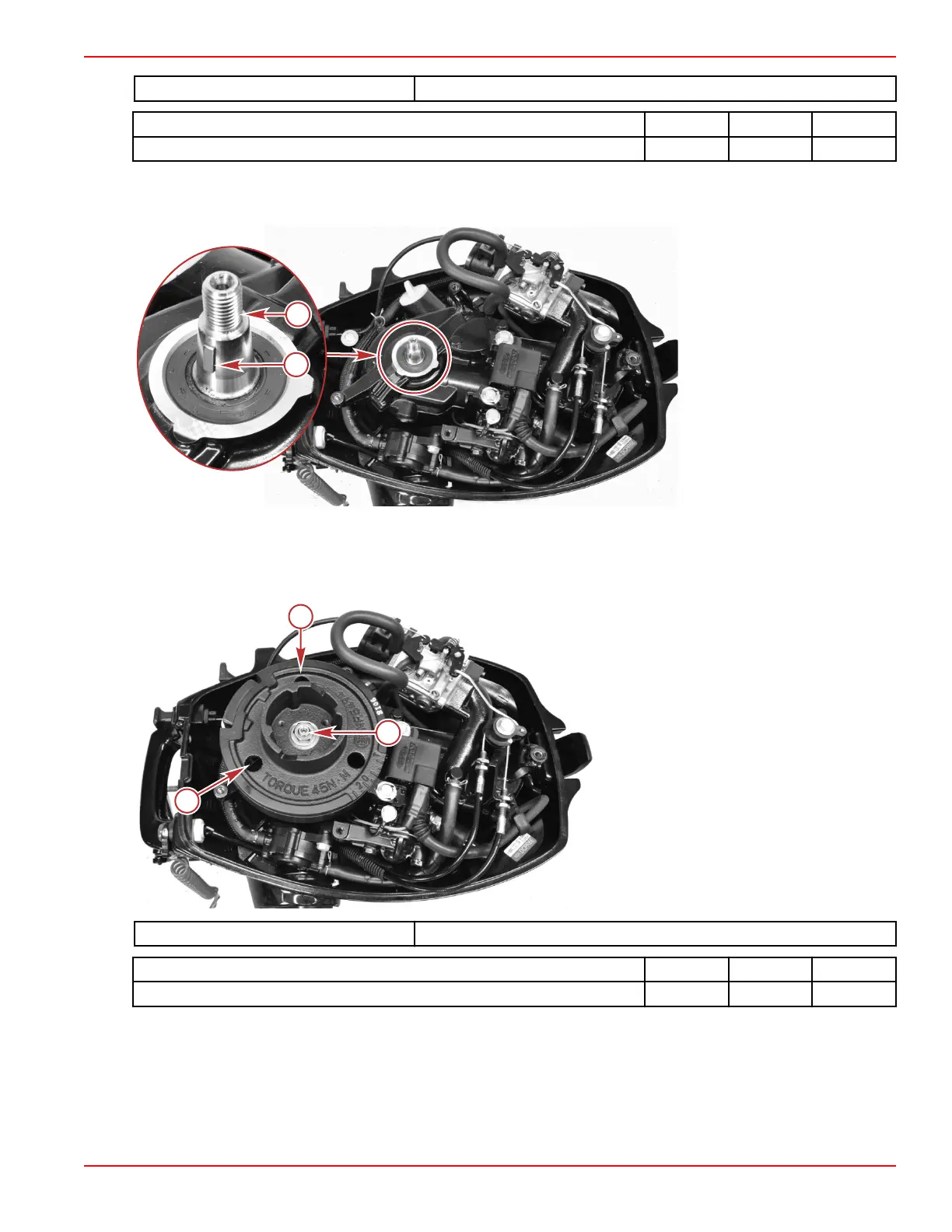

1. Install the flywheel key into the crankshaft keyway.
a - Crankshaft
b - Flywheel key
2. Align the flywheel keyway with the key. Install the flywheel onto the crankshaft. Ensure the flywheel is fully seated on the
crankshaft taper.
3. Install the washer and flywheel nut.
4. Use the flywheel holding tool to hold the flywheel. Tighten the flywheel nut to the specified torque.
a - Flywheel
b - Flywheel nut and washer
c - Holes for holding the flywheel
Flywheel Holder 91‑83163M
Description Nm lb‑in. lb‑ft
Flywheel nut 45 33
