Gear Housing
Page 6A-24 90-8M0065421 NOVEMBER 2012

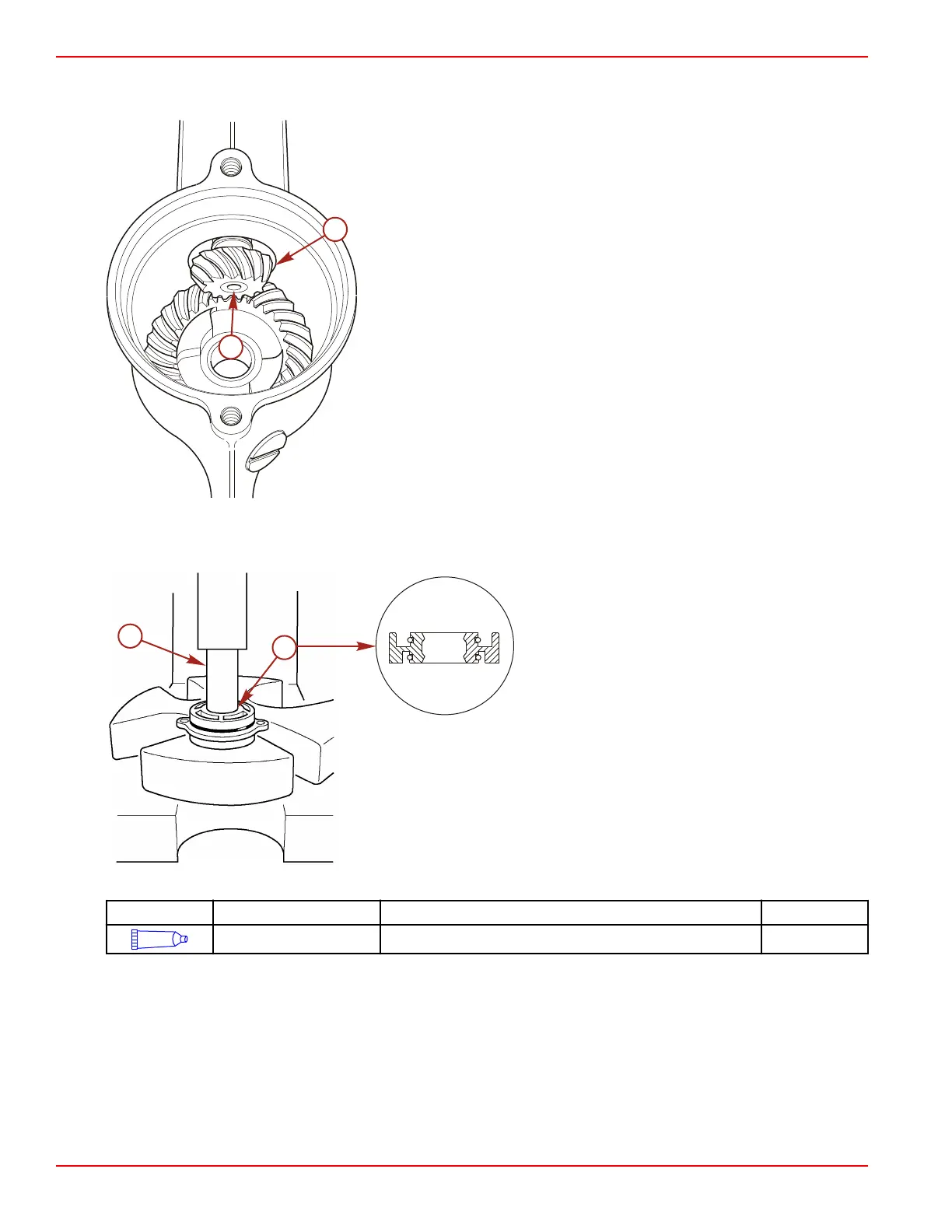

4. Slide the driveshaft assembly through the spacer into the gear housing while installing the pinion gear onto the lower
driveshaft splines.
a - Driveshaft
b - Pinion gear
Bearing Carrier Assembly
1. Apply 2‑4‑C with PTFE to the new seal lips. Press the new seal (flat side down) into the carrier with a 13/16 in. socket.
a - Seal (flat side down)
b - Socket
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Seal lips 92-802859A 1
2. Apply 2‑4‑C with PTFE to the outside diameter of the new carrier bearing.
