Powerhead
90-8M0065421 NOVEMBER 2012 Page 4A-23

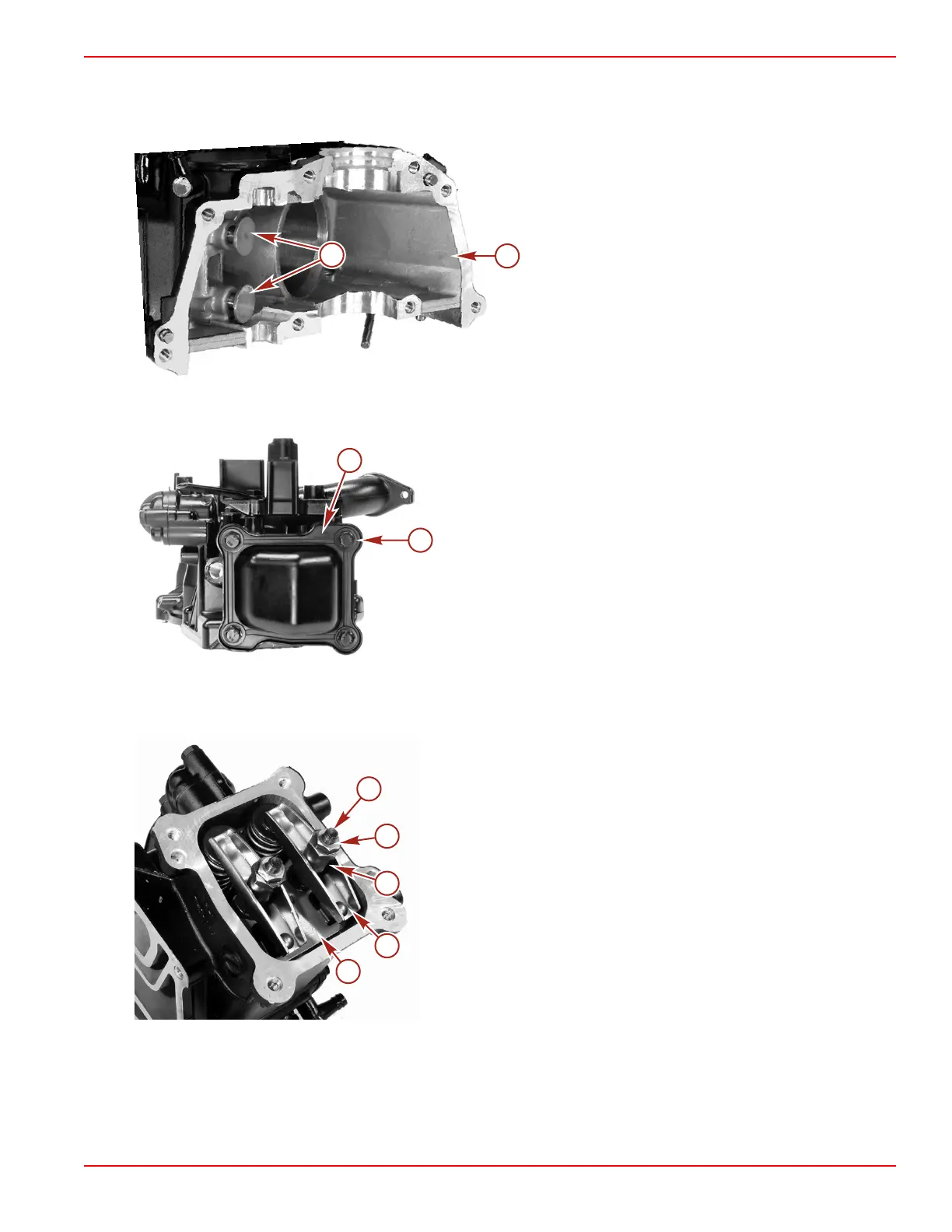

Valve Lifter/Rocker Arm Disassembly
1. Remove the valve lifters and push rods.
a - Valve lifter and push rod
b - Cylinder block
2. Remove the cylinder head cover.
3. Remove the gasket. Clean the gasket surface on the cylinder head cover and the cylinder block.
a - Cylinder head cover
b - Bolt and washer (M6 x 16) (4)
4. Remove the rocker arm nut.
5. Remove the rocker arm pivot and rocker arm.
6. Remove the pivot bolt and guide plate.
a - Pivot bolt
b - Nut
c - Pivot
d - Rocker arm
e - Guide plate
7. Use a suitable box end wrench to compress the valve spring to release the valve keepers.
