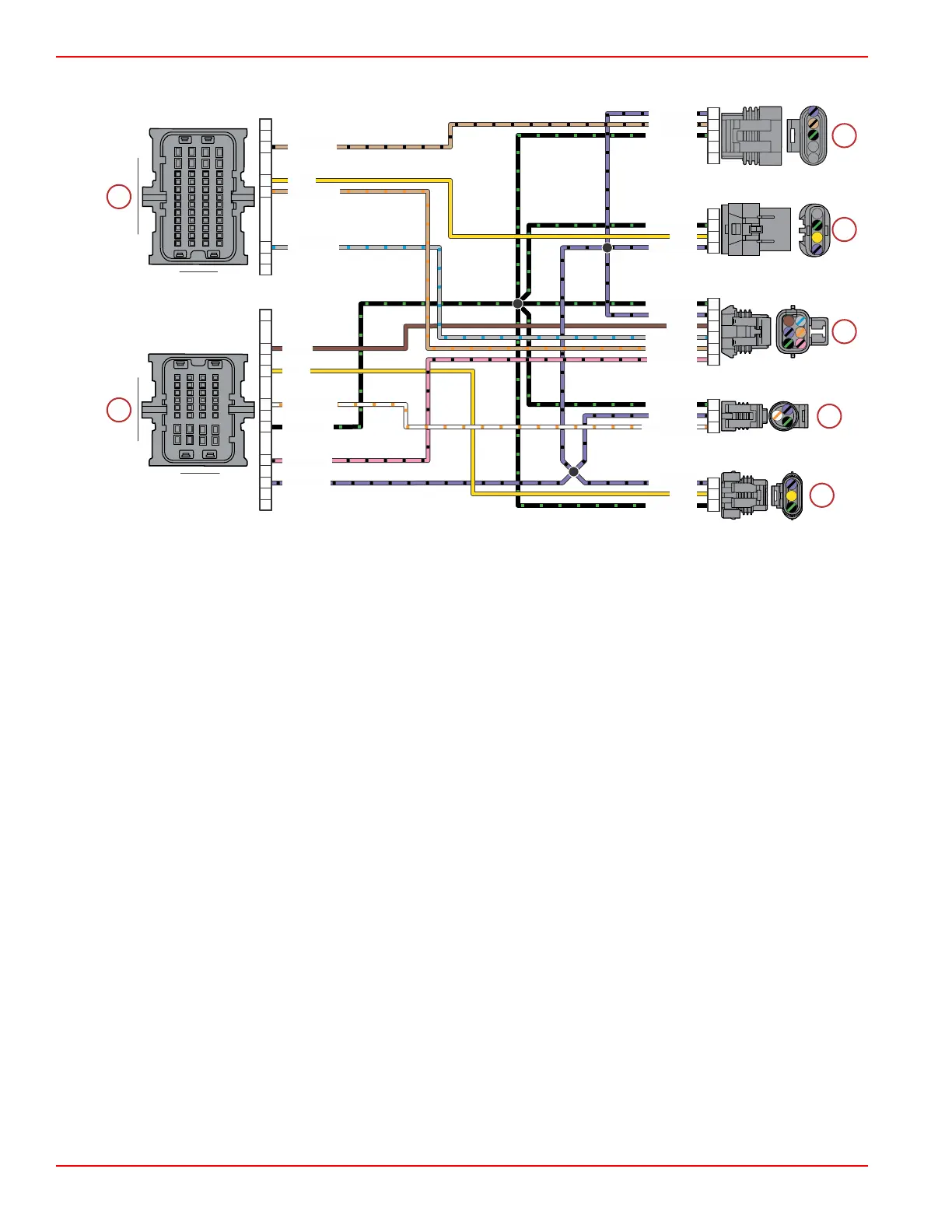

Sensor Power C
a - Oil level sensor, if equipped
b - Trim position sensor
c - Boat harness
d - Pitot pressure sensor
e - Manifold absolute pressure sensor
f - Propulsion control module connector C
g - Propulsion control module connector B
Circuit Description
PCM sensor power C (XDRP3) supplies 5 volts to the sensors identified on the preceding diagram. The purple and black wire
from pin E4 of PCM connector C connects to splices 124A and 124B, which feed all four identified sensors, as well as the boat
harness.
PCM sensor ground C (XDRG3) connects all four identified sensors and the boat harness to ground through the PCM (pin E3
of connector C). The black and green ground circuit incorporates a single splice (125A).
Block Water Pressure Sensor
NOTE: Not all models are equipped with a block water pressure sensor.
The block water pressure sensor measures the pressure of the coolant that the water pump supplies to the cylinder block. The
sensor converts the measured pressure to a voltage that is read by the PCM.
