Module Data Screen

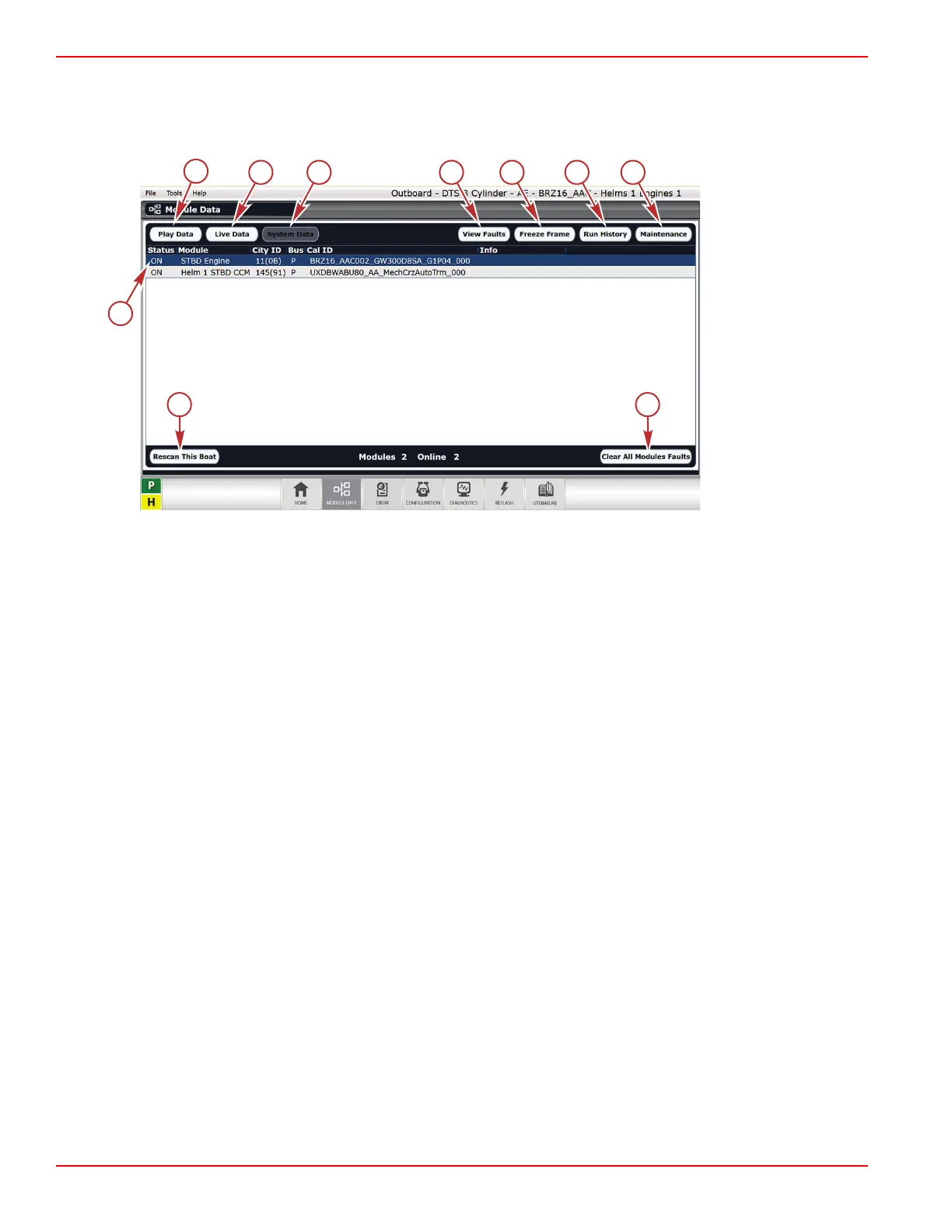

After the eBOM is selected, selecting the Module Data screen will bring up a selection of modules connected to the boat. This
includes the PCM 112 and any other modules, such as the command control module (CCM). After the engine PCM is selected,
other screens can be accessed as shown in the following image.
a -
Play Data button—Plays back recorded data, in the Live Data screen, or on the Graph or Meters tab.
b -
Live Data button—Displays data as it is being received. Refer to Section 3C ‑ CDS G3—Live Data.
c -
System Data button—Used on multiple engine applications.
d -
View Faults button—Lists the active faults. Refer to Section 4A ‑ Fault Codes.
e -
Freeze Frame button—Displays a snapshot of engine data at the moment of the last time each fault occurred. Refer to
Section 3D ‑ CDS G3—PCM 112 Freeze Frame Data.
f -
Run History button—Provides access to a run time history map. Each time value is assigned to an RPM band. The data
on this screen cannot be cleared or reset with the CDS G3 tool.
g -
Maintenance button—Displays the current maintenance value, and provides access to resetting the maintenance
percentage to 100%.
h -
Clear All Modules Faults button—Clears existing faults. Used to clear the buffer. Faults that are still active will reappear
after a few moments.
i -
Rescan This Boat button—Refreshes the list of modules on the boat.
j -
Status—Displays the status of each listed module.
Troubleshooting with the Computer Diagnostic System (CDS G3)
Page 3B-8 © 2018 Mercury Marine 90-8M0146617 eng JULY 2018
