4.0 System Components
4.1 Main Fire Control Panel

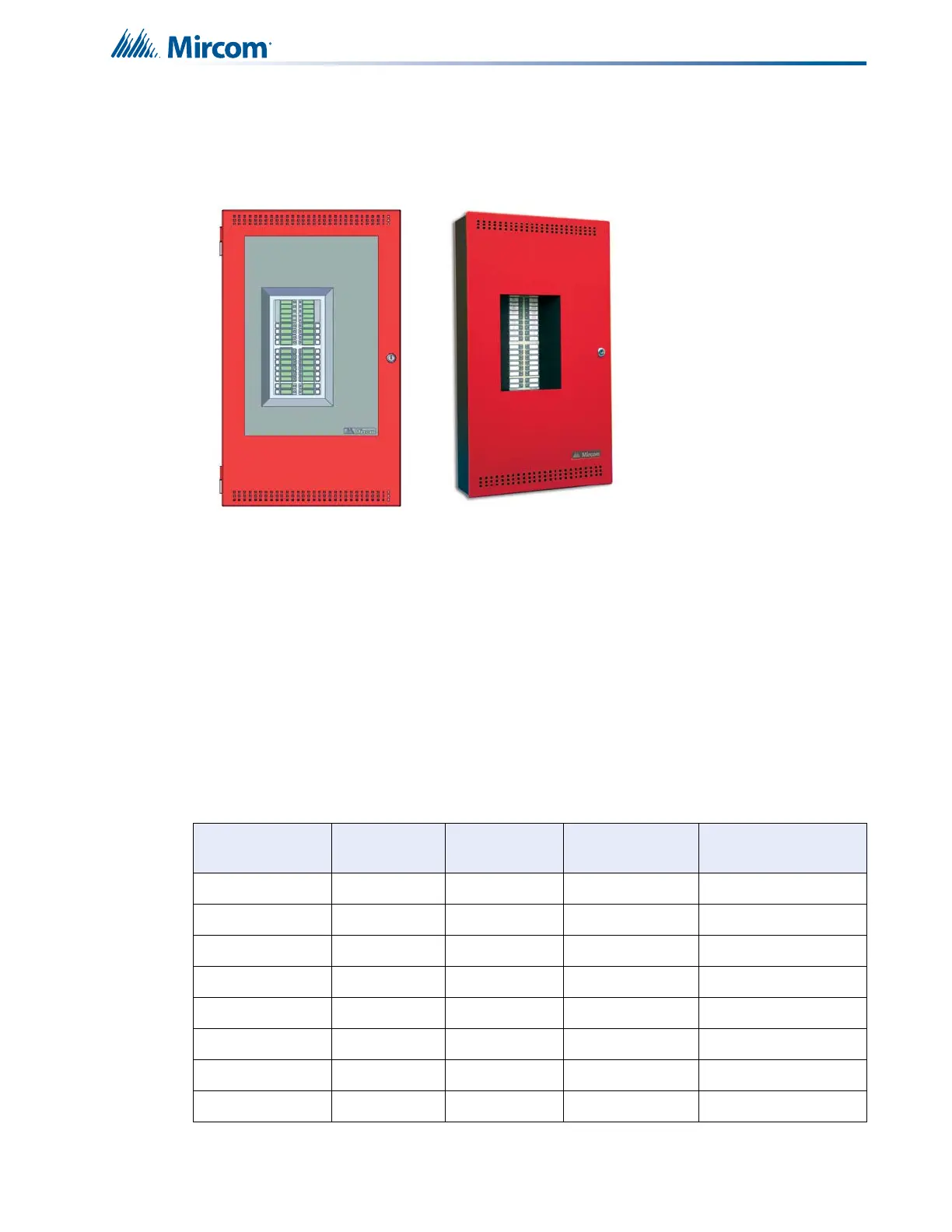

Figure 1 FA-300 LED Series
All FA-300 LED Series Panels have the following features:
• LED Display.
• Two six zone ICAC-306 Input Class A Converter adder modules may be used for
Class A (Style D) wiring of Initiating circuits.
• One OCAC-304 Output Class A Converter adder module may be used for Class A
(Style Z) wiring of the Indicating circuits.
• Contain Common Alarm, Common Supervisory & Common Trouble Relays, Auxiliary
Alarm Relay (disconnectable), an RS-485 Interface for Remote Annunciators and a
Resettable Four Wire Smoke Detector Power Supply.
• Used with Mircom BAT-12V12A (12 Amp-hour) batteries (two required).
Table 1 FA-300 LED Series Comparison Chart
Model # of zones # of initiating
circuits
On board Dialer Door Color
FA-301-12LDW 12 12 yes white
FA-301-12LDR 12 12 yes red
FA-301-12LW 12 12 no white
FA-301-12LR 12 12 no red
FA-301-8LDW 88 yes white
FA-301-8LW 88 no white
FA-301-8LDR 88 yes red
FA-301-8LR 88 no red

Mircom FA-301-12LDR Specifications

General

Brand	Mircom
Model	FA-301-12LDR
Category	Control Panel
Language	English
