Mircom FA-301-12LDR User Manual

17
5.0 Mechanical Installation
5.1 Installing the Enclosure
Install the FA-300 Series Fire Alarm Panel enclosure as shown below for the twelve-, eight-,
and six-zone models. Mount enclosure surface mount using the four mounting holes, as
shown and the screws provided.

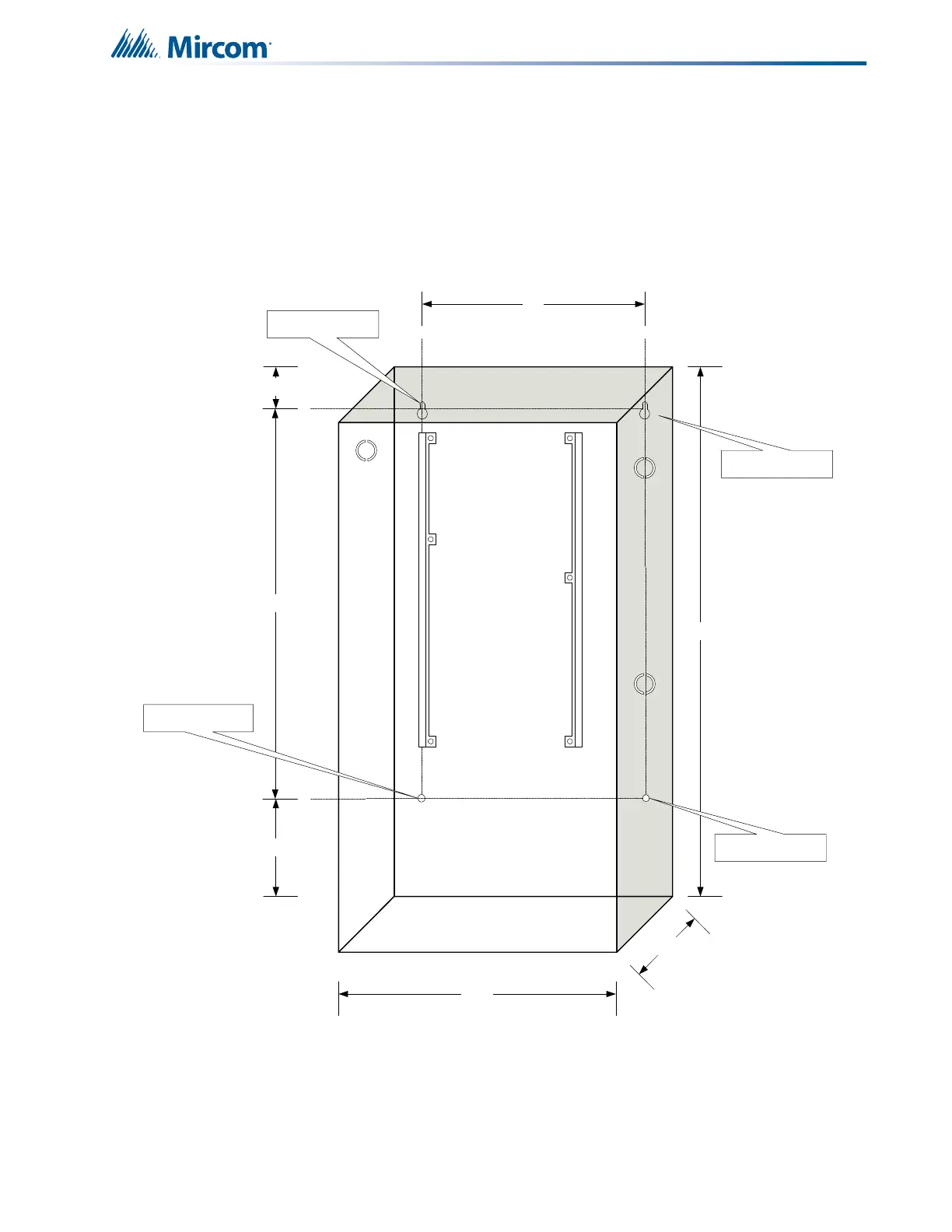

Figure 2 Box dimensions, surface mount
The backbox may be semi-flush mounted using the trim ring model FA-UNIV-TRB (BLACK),
see Figure 3. Remove the door (also disconnect the ground strap), the dead front and semi-
11"
14.5"
1.5"
20.5"
5.4"
4.5"
25.9"
Mounting Hole
Mounting Hole
Mounting Hole
Mounting Hole
