2Unpacking to Installation
Installation
2-15
2.2.3 Transportation procedures (Transporting with a crane)

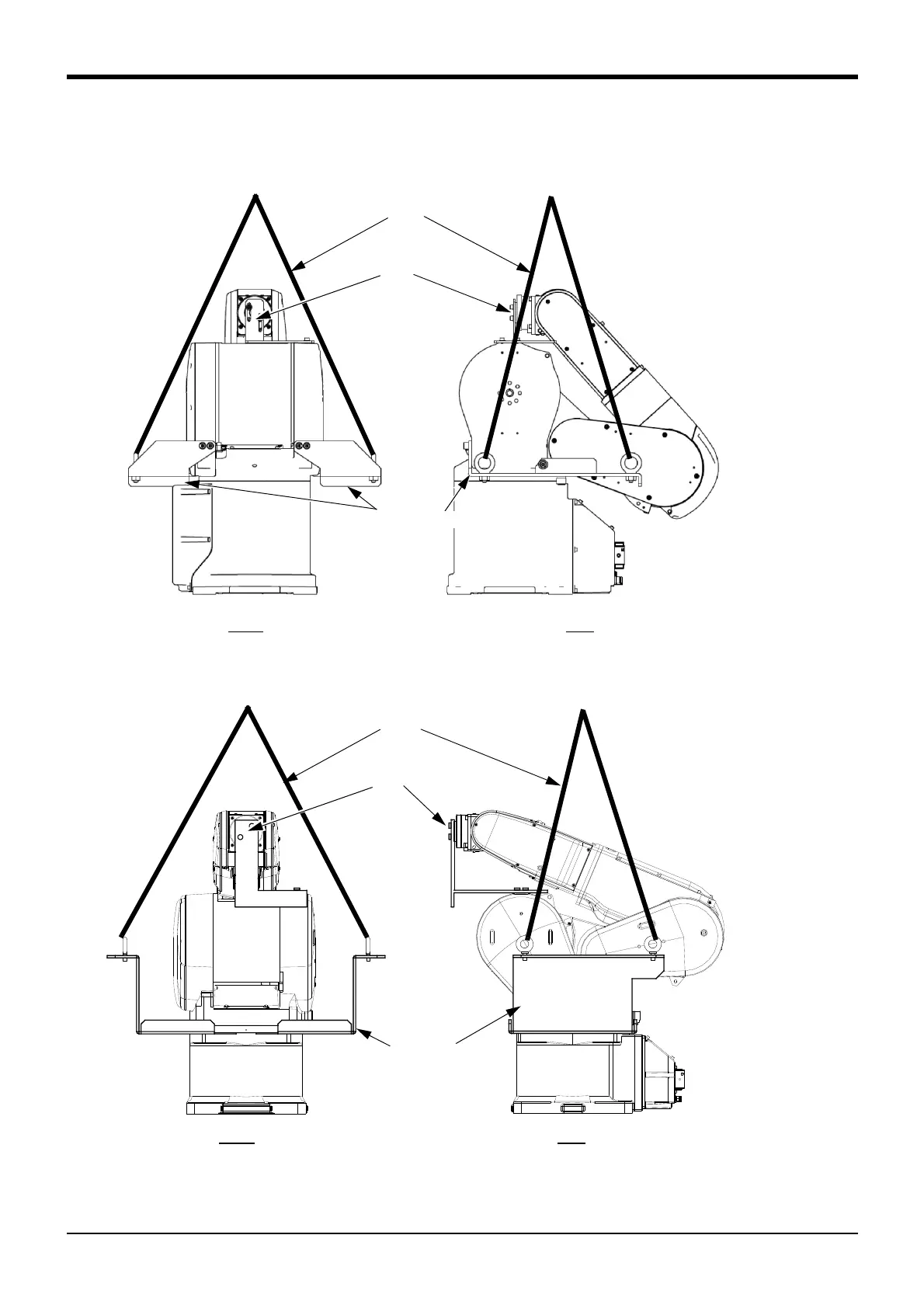

The transportation procedure is shown in Fig. 2-5 for (RV-4FR/7FR series) and Fig. 2-6 (RV-13FR series).
Fig.2-5 ： Transportation procedure (transporting with a crane: RV-4FR/7FR series)
Fig.2-6 ： Transportation procedure (transporting with a crane: RV-13FR series)
Front Side
Wire
Note 1)
Fixing plate
Transporting jig
Mass
RV-4FR: Approx. 39kg
RV-4FRL: Approx. 41kg
RV-4FRJL: Approx. 39kg
RV-7FR: Approx. 65kg
RV-7FRL: Approx. 67kg
Note) The figure is the RV-4 F
series. The shape and
installation screw of the
suspension fitting of RV-
7F series differ.
RV-4FR/RV-7FR series
Note 1) Use wires that are
1000 mm or more.
Front Side
Fixing plate
Transporting jig
Mass
RV-13FR/20FR: Approx. 137kg
RV-7FRLL/13FRL: Approx. 145kg
RV-13FR series
Wire
Note 1)
Note 1) Use wires that are
1000 mm or more.
To Next Page
