FX Series Programmable Controlers Applied Instructions 5

5-22

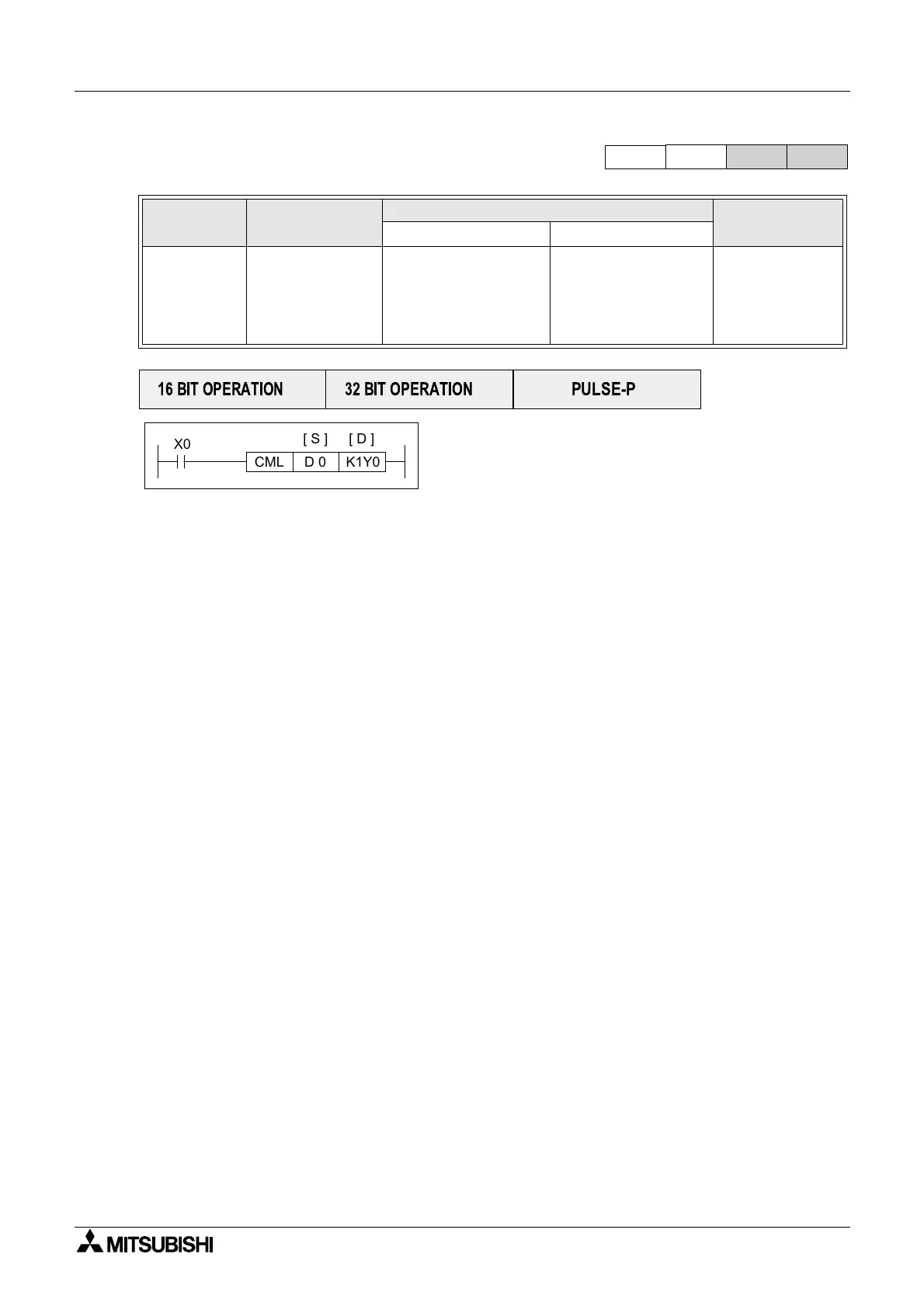

5.2.5 CML (FNC 14)

Operation:

A copy of each data bit within the source device (S) is

inverted and then moved to a designated destination

(D).

This means each occurrence of a ‘1’ in the source data will become a ‘0’ in the destination data

while each source digit which is ‘0’ will become a ‘1’. If the destination area is smaller than the

source data then only the directly mapping bit devices will be processed.

Mnemonic Function

Operands

Program steps

CML

FNC 14

(Compliment)

Copies and

inverts the source

bit pattern to a

specified

destination

K, H,

KnX, KnY, KnM, KnS,

T, C, D, V, Z

KnY, KnM, KnS,

T, C, D, V, Z

CML,CMLP:

5steps

DCML,

DCMLP:

9steps

2NC

PULSE-P

16 BIT OPERATION

32 BIT OPERATION

CML D 0 K1Y0

[ S ] [ D ]
