Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-72

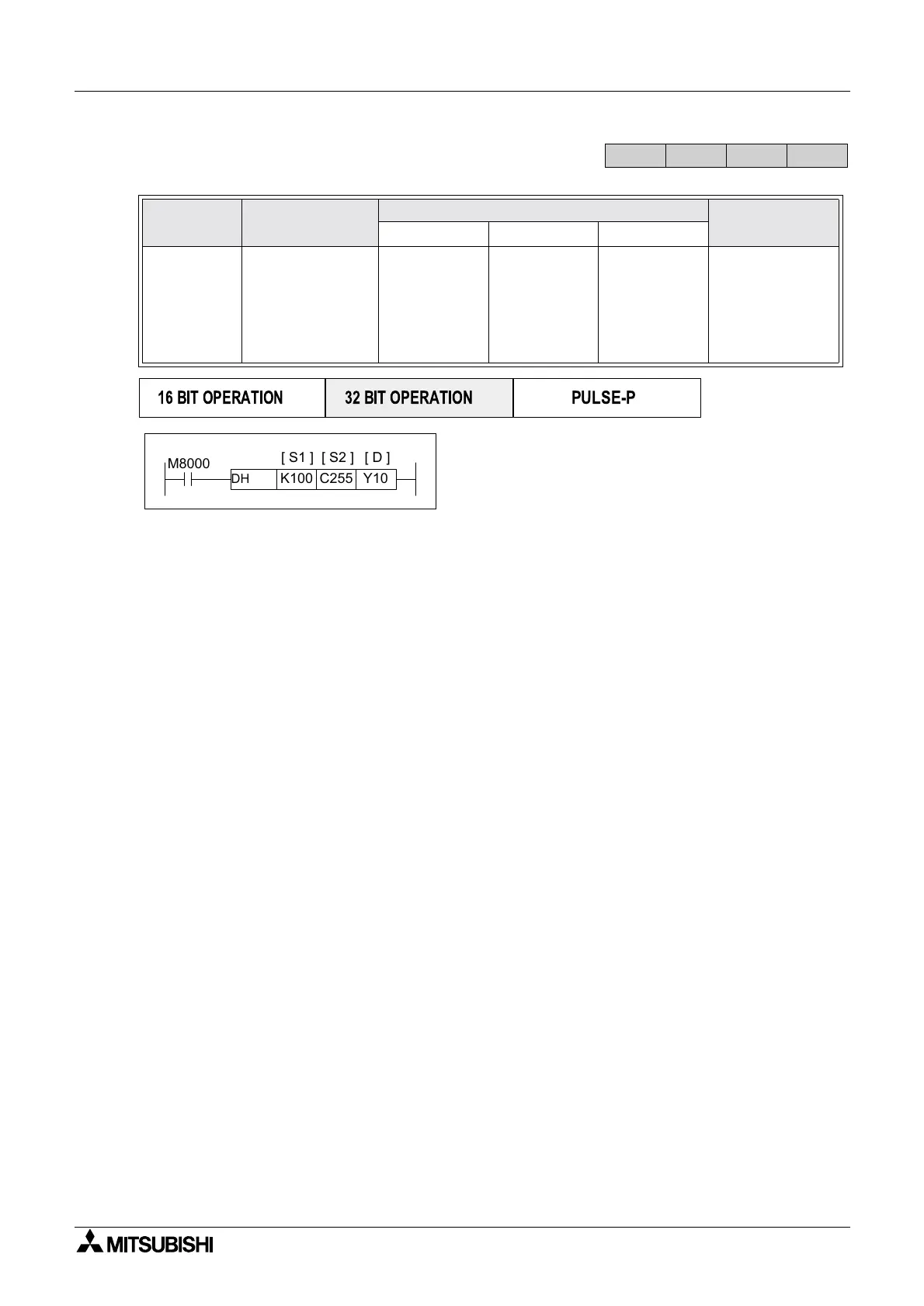

5.6.4 HSCS (FNC 53)
Operation:
The HSCS set, compares the current value of the
selected high speed counter (S
2)against a selected
value (S
1). When the counters current value
changes to a value equal to S
1the device specified
as the destination (D)is set ON. The example above shows that Y10 would be set ON only
when C255’s value stepped from 99-100 OR 101-100. If the counters current value was forced
to equal 100, output Y10 would NOT be set ON.
Mnemonic Function
Operands
Program steps
S
1 S2 n
HSCS
FNC 53
(
High speed
counter set)
Sets the selected
output when the
specified high
speed counter
value equals the
test value
K, H,
KnX, KnY,
KnM, KnS,
T, C, D, V, Z
C
Note:
C = 235 to 254,
or available
high speed
counters
Y, M, S
Interrupt point-
ers
I010 to I060
canbeset.
DHSCS:
13 steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
M8000
C255 Y10
[ S1 ] [ S2 ]
K100
[ D ]
DHSCS
