Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-52

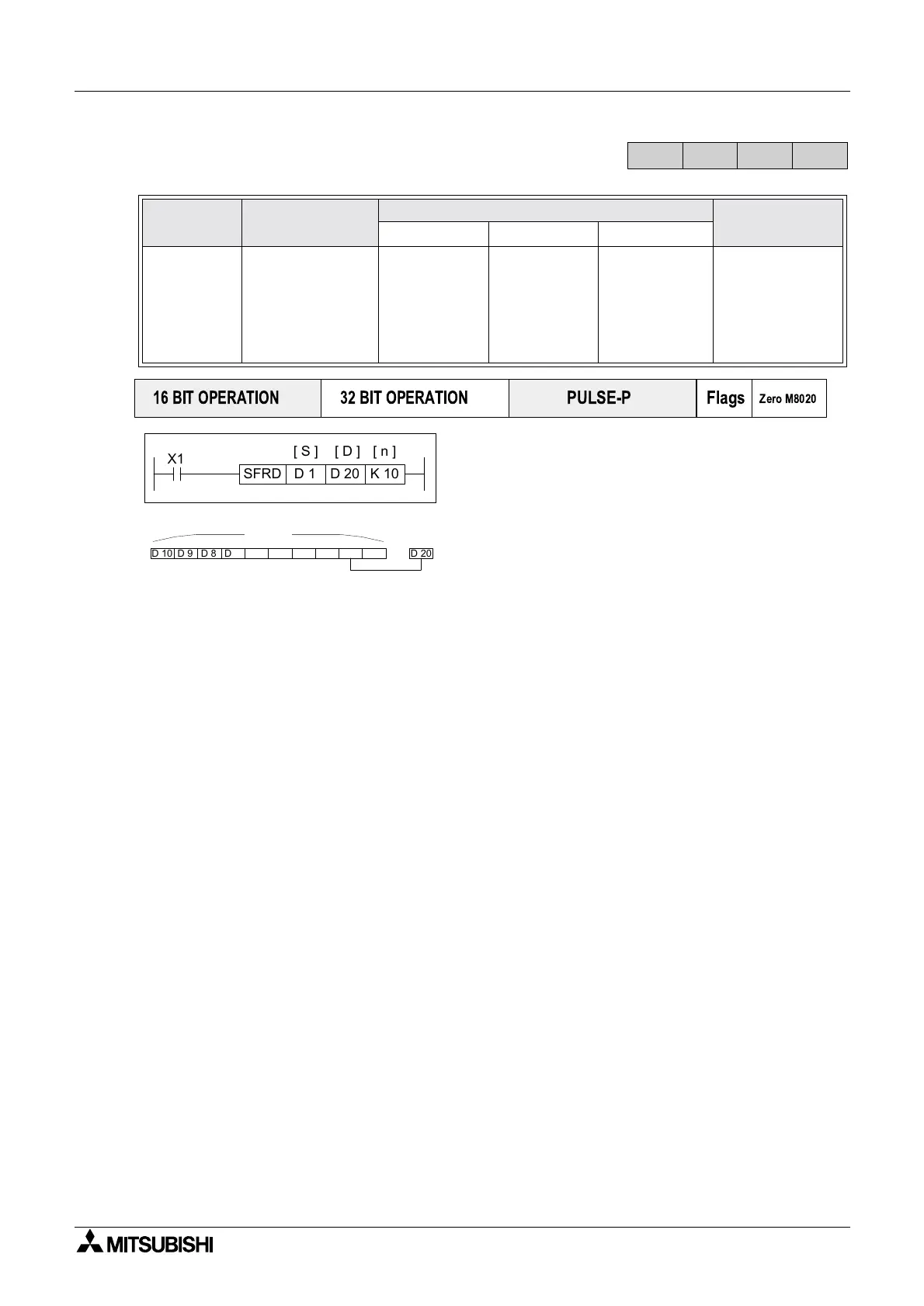

5.4.10 SFRD (FNC 39)
Operation:
The source device (S) identifies the head address
of the FIFO stack. Its contents reflect the last entry
point of data on to the FIFO stack, i.e. where the
end of the FIFO is (current position).
This instruction reads the first piece of data from
the FIFO stack (register S
+1), moves all of the data
within the stack ‘up’ onepositiontofilltheread
area and decrements the contents of the FIFO
head address (S) by 1. The read data is written to
the destination device (D).
When the contents of the source device (S) are
equal to ‘0’ (zero), i.e. the FIFO stack is empty, the
flag M8020 is turned ON.
Points to note:
a) FIFO is an abbreviation for ‘First-In/ First-OUT’.
b) Only n
-1 pieces of data may be read from a FIFO stack. This is because the stack requires
that the first register, the head address (S) is used to contain information about the current
length of the FIFO stack.
c) This instruction will always read the source data from the register S
+1.
d) This instruction should be used in conjunction with SFWR FNC 38. The n parameter in both
instructions should be equal.
Mnemonic Function
Operands
Program steps
SD n
SFRD
FNC 39
(Shift
register read)

This instruction
reads and
reduces FIFO
stack- must be
used with SFWR
FNC 38
KnY, KnM,
KnS,
T, C, D,
KnY,
KnM,KnS,
T, C, D
KnY, KnM,
KnS,
T, C, D,
KnY,
KnM,KnS,
T, C, D, V, Z
K,H,

Note:
2≤ n≤ 512
SFRD,
SFRDP:
7steps
FX1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
Flags
Zero M8020
X1
SFRD
D 20 K 10
[ S ] [ D ]
D 1
[ n ]
D 20D 10 D 9 D 8 D 7 D 6 D 5 D 4 D 3 D 2 D 1
[D]
= 10
[n]
