Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-61

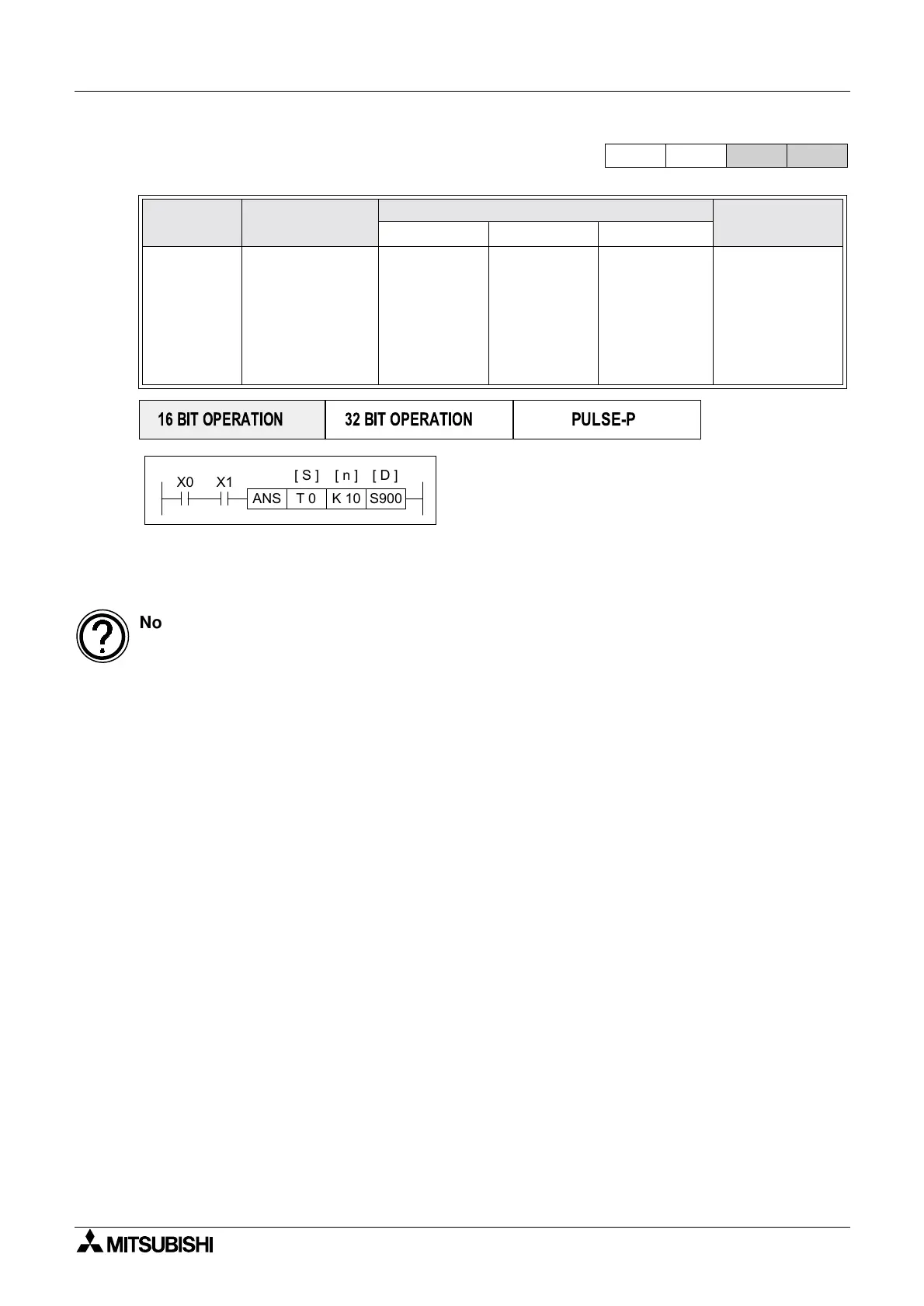

5.5.7 ANS (FNC 46)
Operation:
This instruction, when energized, starts a timer (S)
for n,100 msec. When the timer completes its cycle
the assigned annunciator (D) is set ON.
If the instruction is switched OFF during or after completion of the timing cycle the timer is
automatically reset. However, the current status of the annunciator coil remains unchanged.
Mnemonic Function
Operands
Program steps
SD n
ANS
FNC 46
(Timed
annunciator
set)
This instruction
starts a timer.
Once timed out
the selected
annunciator flag is
set ON
T
Note:
available
range
T0 to T199
S
Note:
annunciator
range S900 to
S999
K

Note:
n range 1 to
32,767 - in
units of
100msec
ANS:
7steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
X0
K 10 S900
[ S ] [ D ]
T 0ANS
[ n ]
X1
Note: This is only one method of driving annunciator coils, others such as direct setting can
also be used.
