5-22
Troublesho
oting Charts:
Top/CID Display Fail
ure

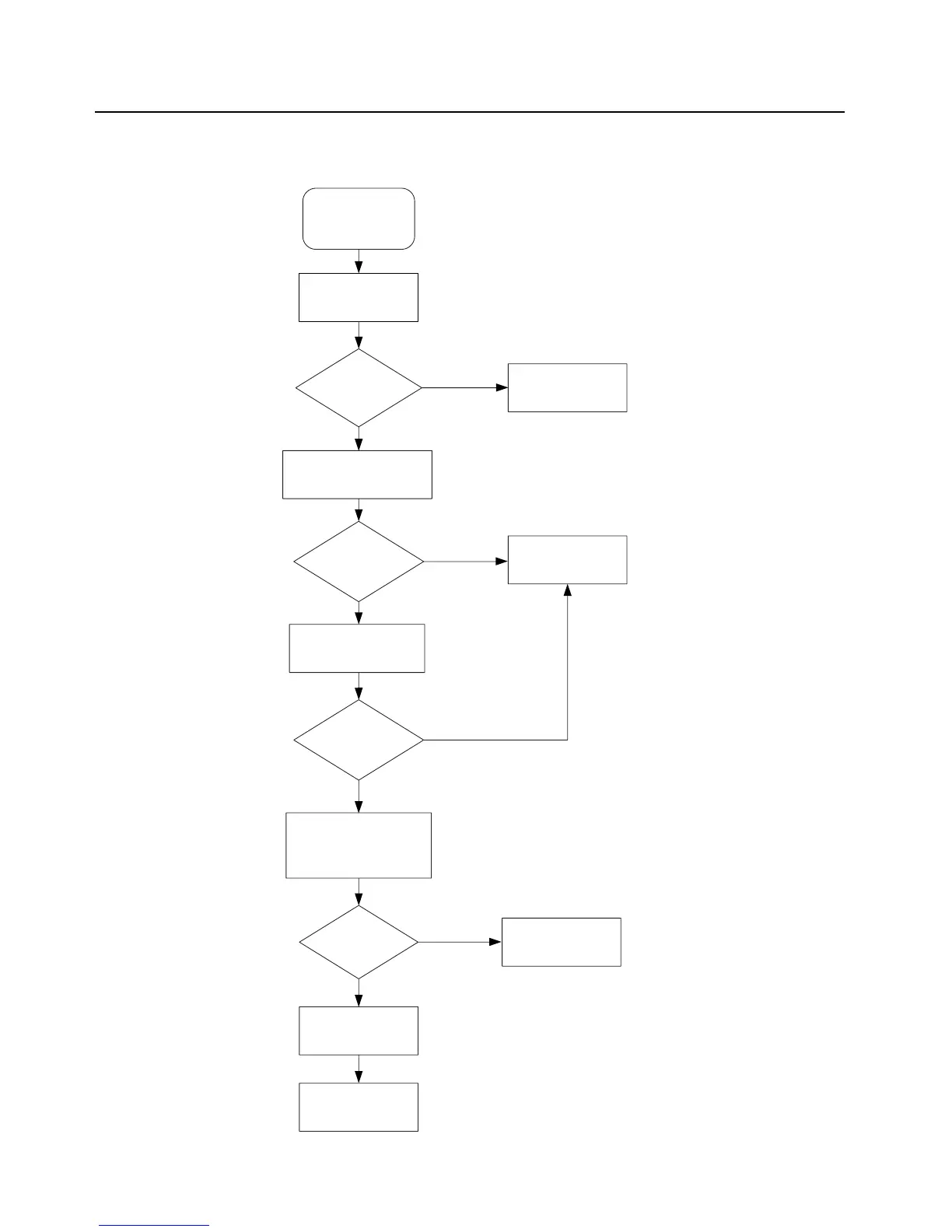

5.5
T
op/CID Display Failure
Replace Control Top
Assembly
No Top Display
1.8V < V < 2.0V?
Check DC on V_EXT_1.85
(pin 29 of J2101)
Problem
Resolved?
Check DC on V_2.775D
(pin 30 of J2101)
2.7V < V < 2.9V?
Check SPI CLK (R2136),
Data (Pin 39 of J2101),
and CS (Pin 43 of J2101)
Signals Present?
Check Mating Board
Connectors
Replace Board With
Bad Connectors As
Needed
End
Yes
No
Proceed to DC
Flowchart
Replace Vocon
Board
No
Yes
Yes
Yes
No
No
