Schematics, Boards Over
lays, and Parts Lists
: Transceiver (RF) Boards: 700–800 MHz
8-83

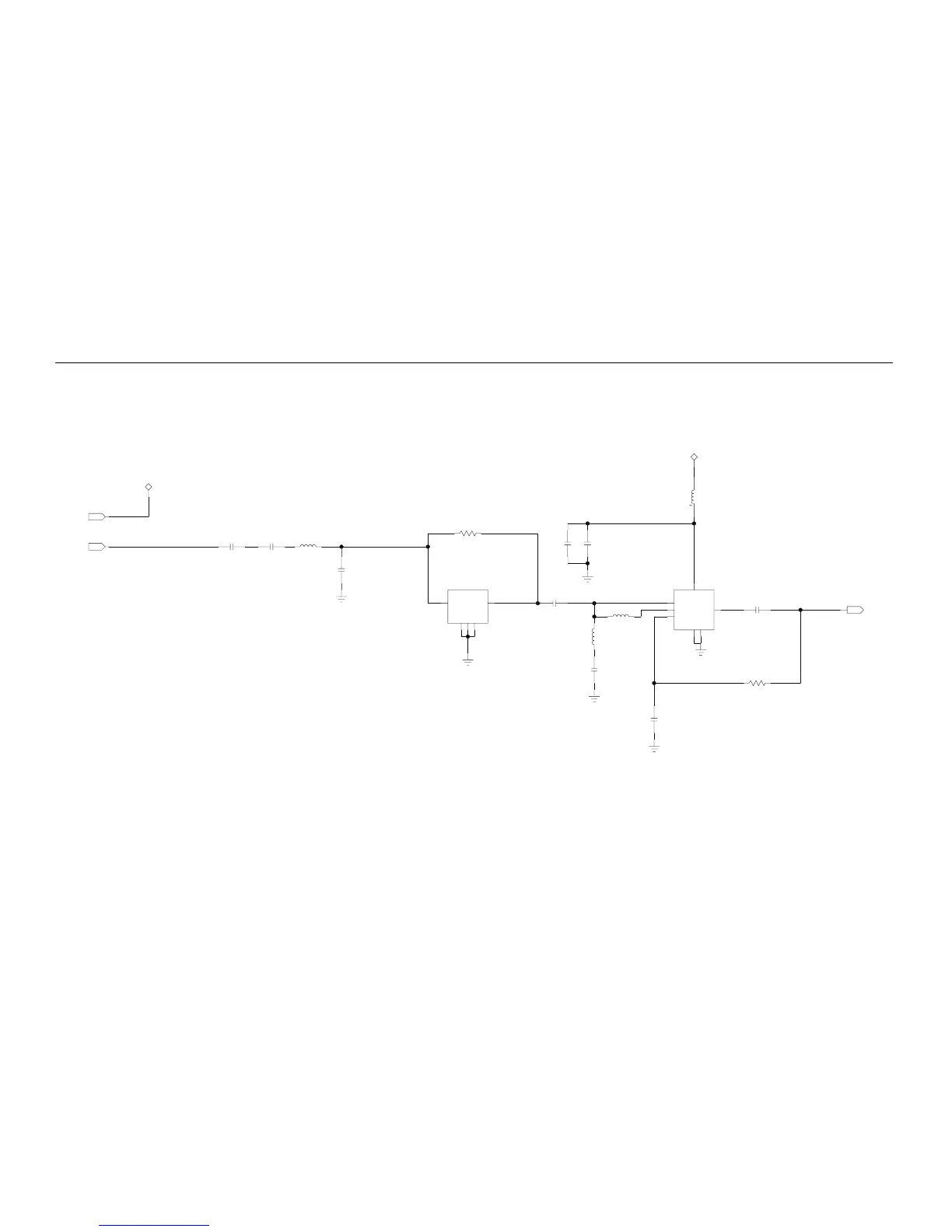

Figure 8-51. NUF6750A GPS Circuit
DC_LIN_3V
RF_ANT
IN
IN
C1301
.5PF
18NH
12PF
1.8PF
C1309
C1302
L1305
GND1
GND2
OUT
GND3
IN
DNP
FARF6KA1G5754
FL1301
2
3
5
14
12PF
C1303
12PF
1000PF
0
C1305
R1304
C1304
100NH
4.7PF
5.6NH
C1306
L1301
L1302
AI
BIAS
PON
VCC
GND
DEG
AO
1
2
3
7
4
5
BGA615L7
U1304
6
TL_RF_GPS_OUT
18PF
C1308
DC BIAS FOR GPS LNA ADDED TO RF BOARD
(FROM EXPANSION BOARD/GPS IC: GPS_LNA_PON)
12PF
1K
R1307
C1307
18NH
DC_LIN_3V
L1303
1
2
OUT
358
360
