3-2
Theory of Operation:

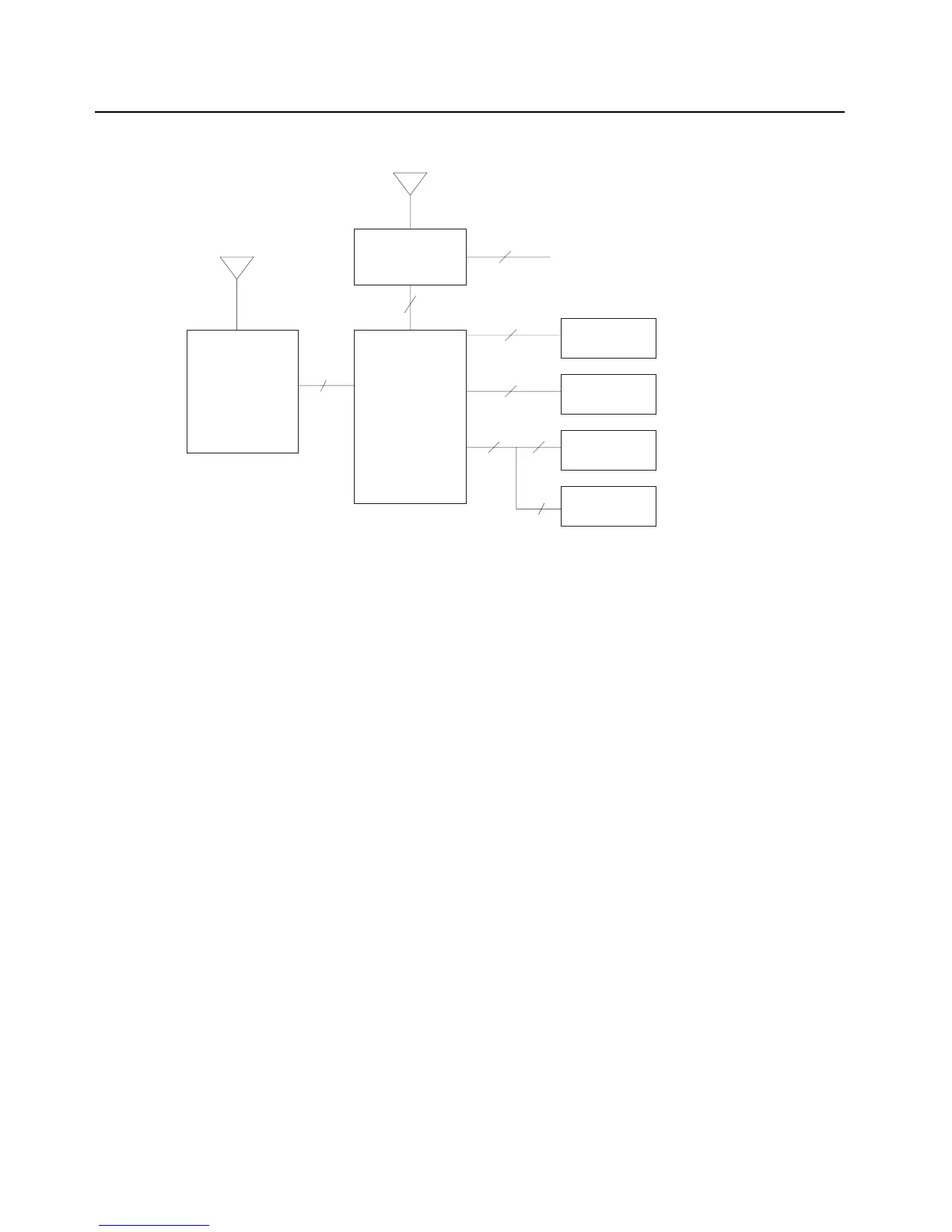

Figure 3-1. APX 5000/ APX 6000/ APX 6000XE/ SRX 22
00 Overall Block Diagram
Antenna
Transceiver
Board
40
VOCON
Board
Expansion
Board
Bluetooth
Antenna
80
16
External Accessory Connector
External Antenna
Top Display
Controls Top
50
20
30
Front Display
Keypad
22
20
27
29
