6-76 Troubleshooting Waveforms: Bluetooth Steady-State
6.18.5 Expansion Board Waveforms – LF Coil with TX and RX

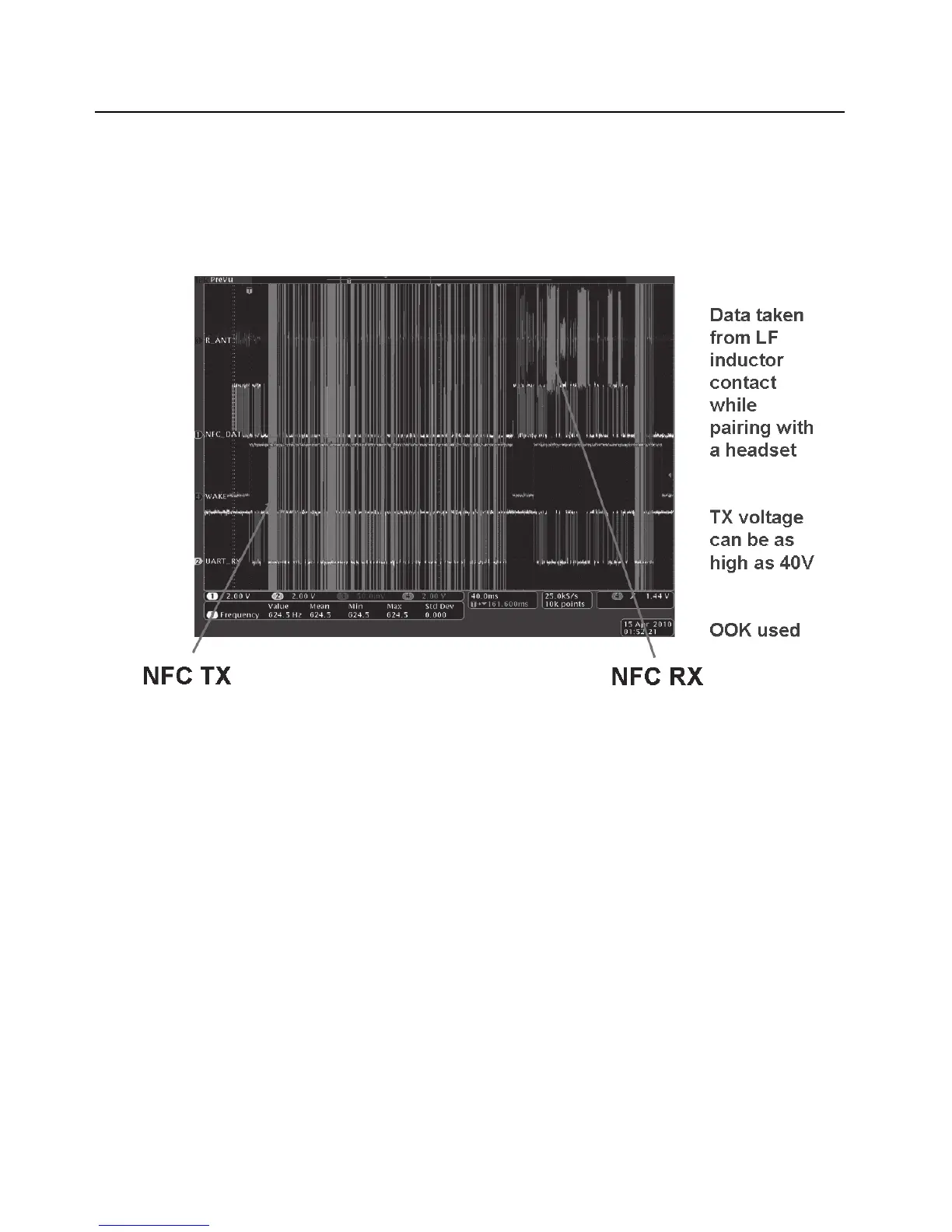

Figure 6-71. Expansion Board – LF Coil with TX and RX Waveform Measured by a Conducted Cable on LF Coil
