6-44 Troubleshooting Waveforms: Expandable Memory (eMMC)
6.14.6 MMC_CMD: Correctly Measured

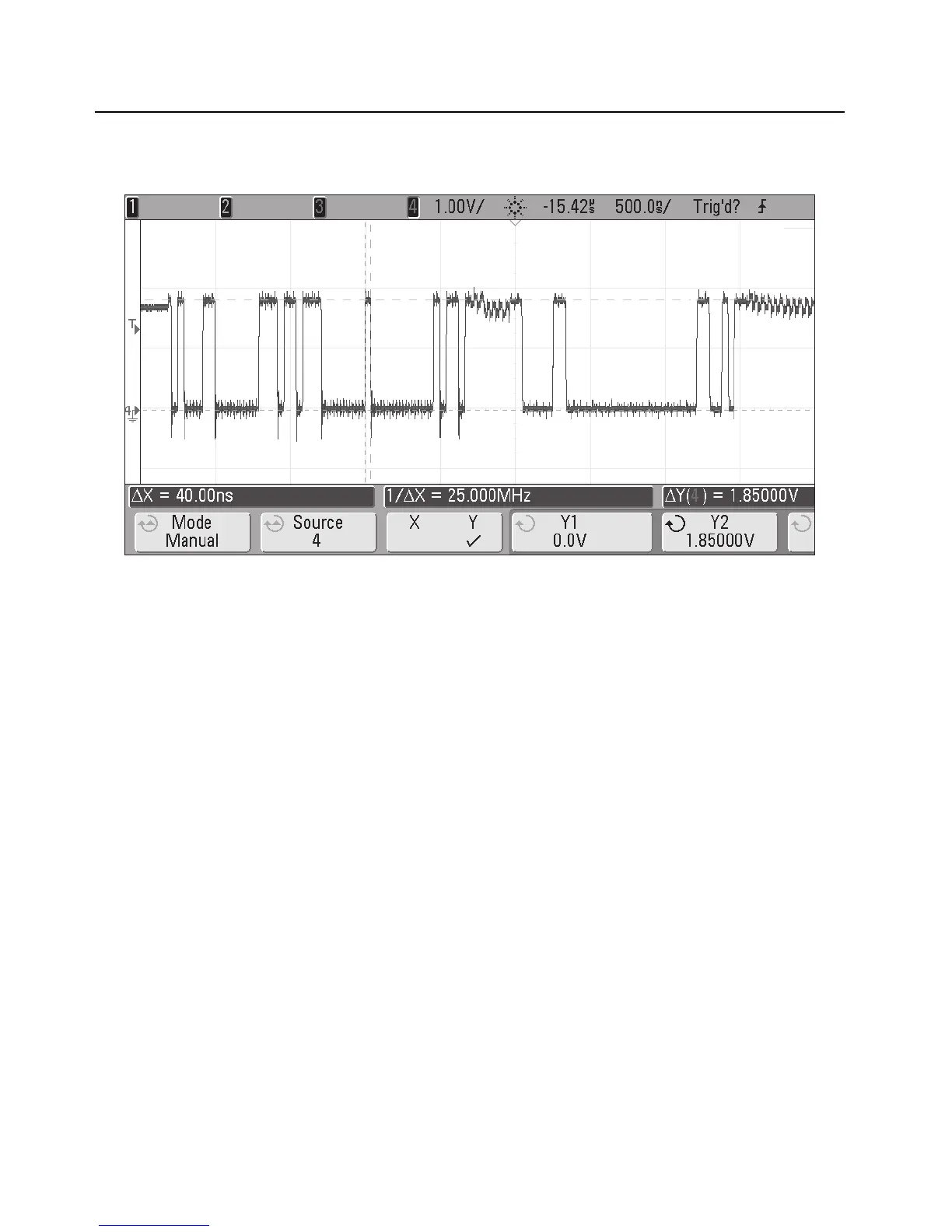

Figure 6-42. MMC_CMD actual waveform when probing with active probes; short wires; GND pin soldered
