Motorola MC2100 User Manual

Accessories 6 - 3
Single-slot USB Cradle
The Single-slot USB cradle:
• Provides 5.4VDC power for operating the MC21XX and charging the battery.
• Provides a USB port for data communication between the MC21XX and a host computer.
• Provides USB host communications between the MC21XX and a peripheral device.
Battery Charging
The Single-slot USB cradle can charge theMC21XX main battery. To charge the MC21XX:
1. Slide the MC21XX into the slot. The MC21XX LED Indicator indicates the MC21XX battery charging
status. The battery charges in approximately four hours. See Table 1-1 on page 1-6 for charging status
indications.

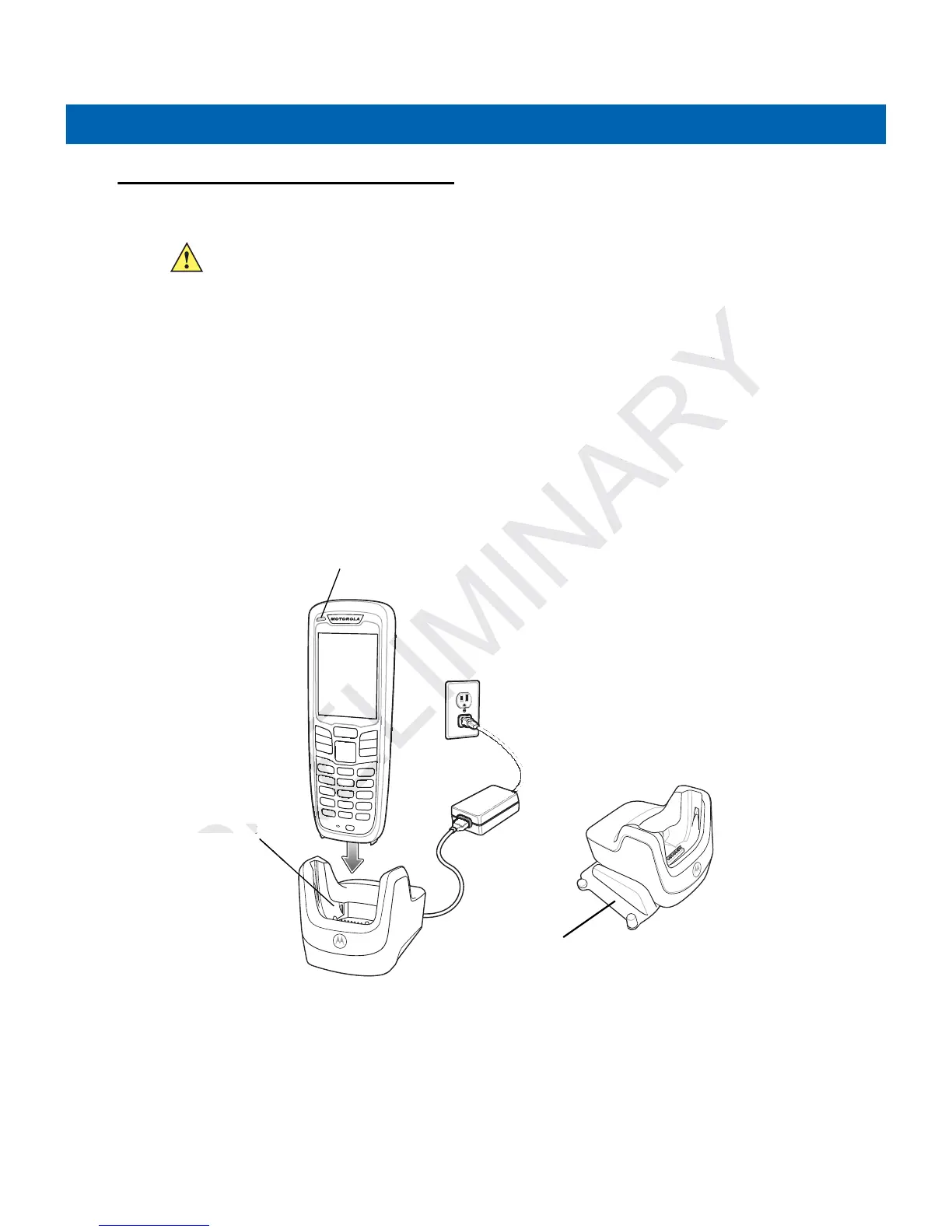

Figure 6-1 Single-slot USB Cradle
2. When charging is complete remove the MC21XX from the cradle.
Each Single-slot USB cradle comes with a mating adapter. Use the mating adapter to connect two or more
cradles together. Each cradle still requires a power supply.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
7-2.
LED
Indicator
MC21XX Slot
Mating Adapter
