6 - 4 MC21XX Series User Guide
Four-slot Charge Only Cradle
The Four-slot Charge Only cradle:
• Provide 5.4 VDC power for operating the MC21XX and charging the battery.
• Simultaneously charges up to four MC21XXs.
Battery Charging
The Four-slot Charge Only cradle can charge up to four MC21XXs simultaneously. To charge the MC21XX:
1. Slide the MC21XX into the cradle slot.

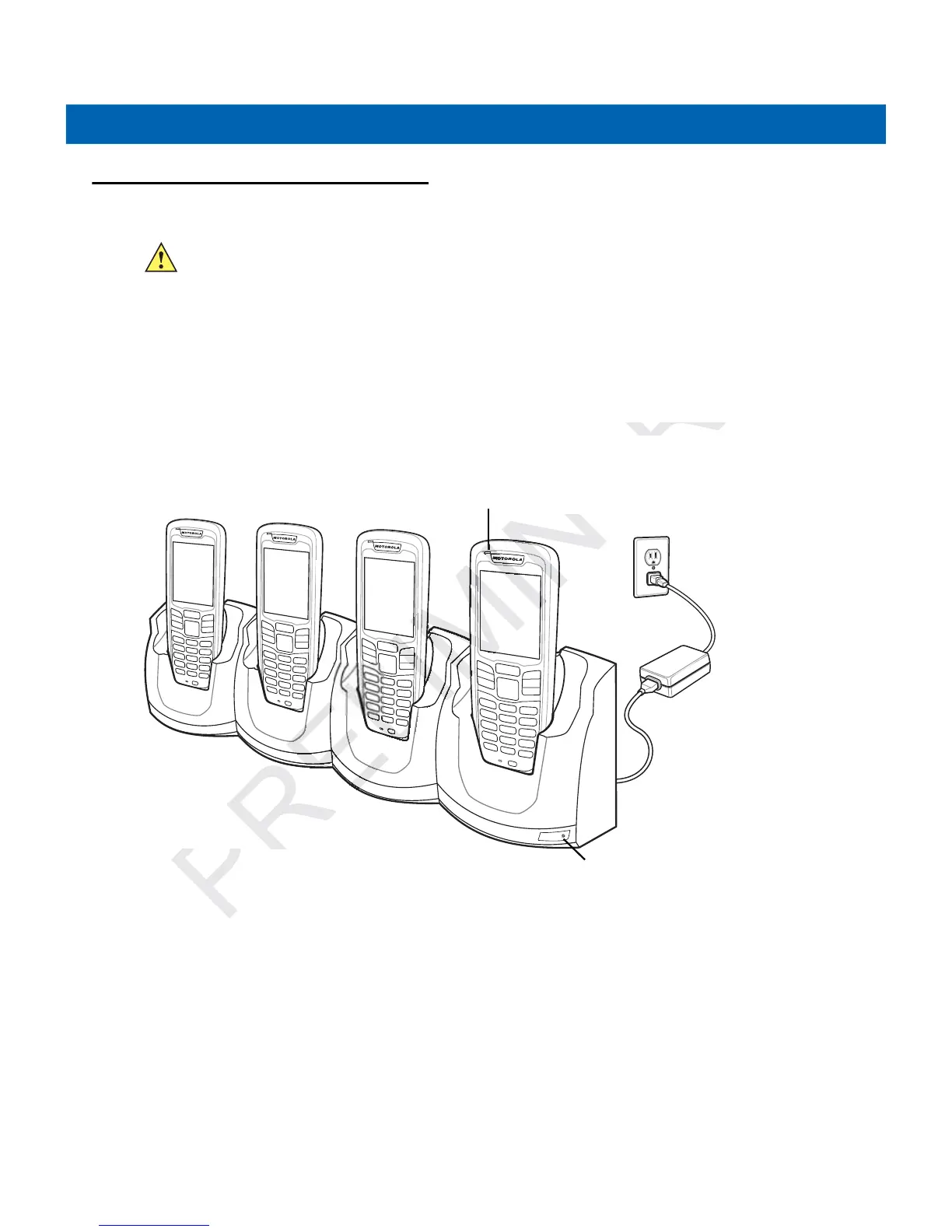

Figure 6-2 Four-slot Charge Only Cradle
2. The MC21XX LED Indicator indicates the MC21XX battery charging status. The battery usually charges in
approximately four hours. See Table 1-1 on page 1-6 for charging status indications.
3. When charging is complete, remove the MC21XX from the cradle.
Power LED
The green Power LED lights to indicate that the Four-slot Charge Only cradle is connected to a power source.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
7-2.
LED Indicator
Power LED
