Motorola MC2100 User Manual

Accessories 6 - 5
Four-slot Ethernet Cradle
The Four-slot Ethernet cradle:
• Provide 5.4 VDC power for operating the MC21XX and charging the battery.
• Simultaneously charges up to four MC21XXs.
• Connects the MC21XX to an Ethernet network.
Battery Charging
The Four-slot Ethernet cradle can charge up to four MC21XXs simultaneously. To charge the MC21XX:
1. Slide the MC21XX into the cradle slot.

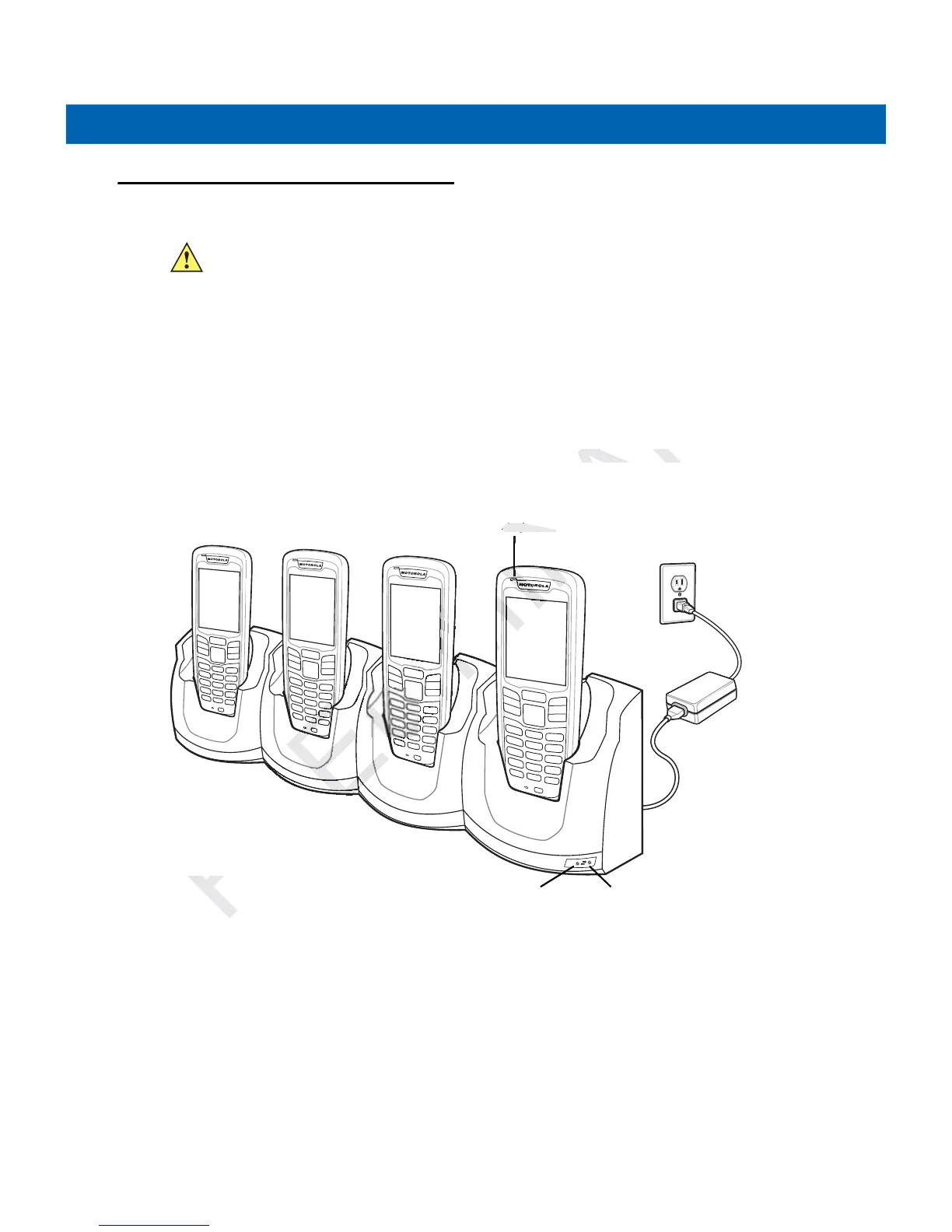

Figure 6-3 Four-slot Ethernet Cradle
2. The MC21XX LED Indicator indicates the MC21XX battery charging status. The battery usually charges in
approximately four hours. See Table 1-1 on page 1-6 for charging status indications.
3. When charging is complete, remove the MC21XX from the cradle.
LED Charge Indications
The Four-slot Ethernet cradle use the MC21XX amber LED Indicator to indicate the battery charging status.
See Table 1-1 on page 1-6 for charging status indications.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
7-2.
100
Mbps
LED Indicator
Speed LED Link LED
