Set Up the Switch in Your Network and Power On the
Switch

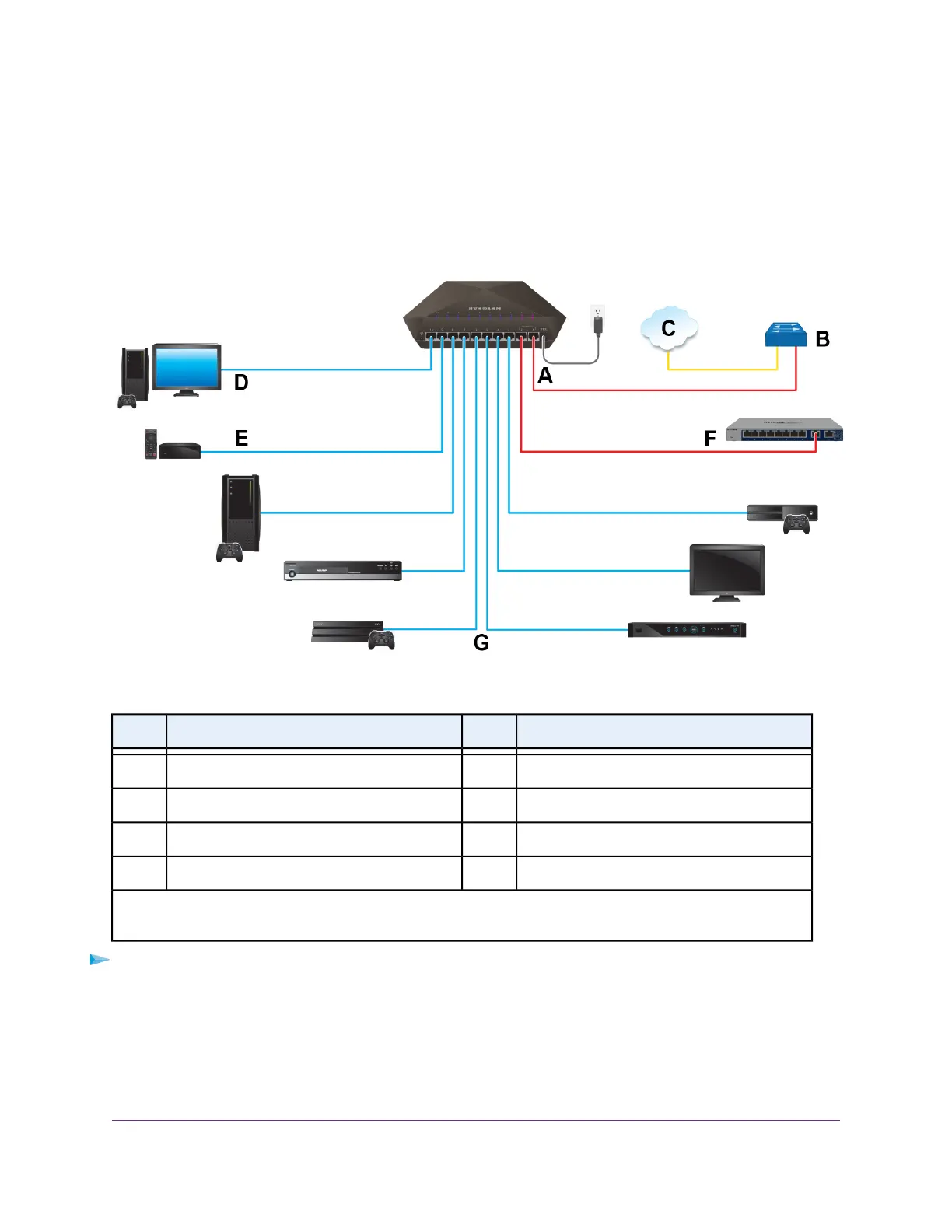

Figure 5. Sample connections
Table 2. Figure components
DescriptionLetterDescriptionLetter
Main media streaming deviceEGS810EMX switchA
High-speed device such as another switchFNetwork routerB
Other network devicesGInternetC
Main gaming deviceD
Red lines indicate 10G (or 5G or 2.5G) connections. Blue lines indicate 1G connections. A yellow line indicates
a direct Internet connection.
To set up the switch in your network and power on the switch:
1. Connect LAN port 1 on the switch (A) to a LAN port on a router (B) that is connected to the Internet (C).
Port 1 and port 2 support 10G, 5G, and 2.5G speeds only if your router and Internet connection support
these speeds. Otherwise, these ports operate at 1G speed.
2. On the switch, connect your devices as follows:
Install and Access the Switch in Your Network
12
Nighthawk Pro Gaming SX10 Switch Model GS810EMX
