NSD Varicam VS-5ED User Manual

1-4.

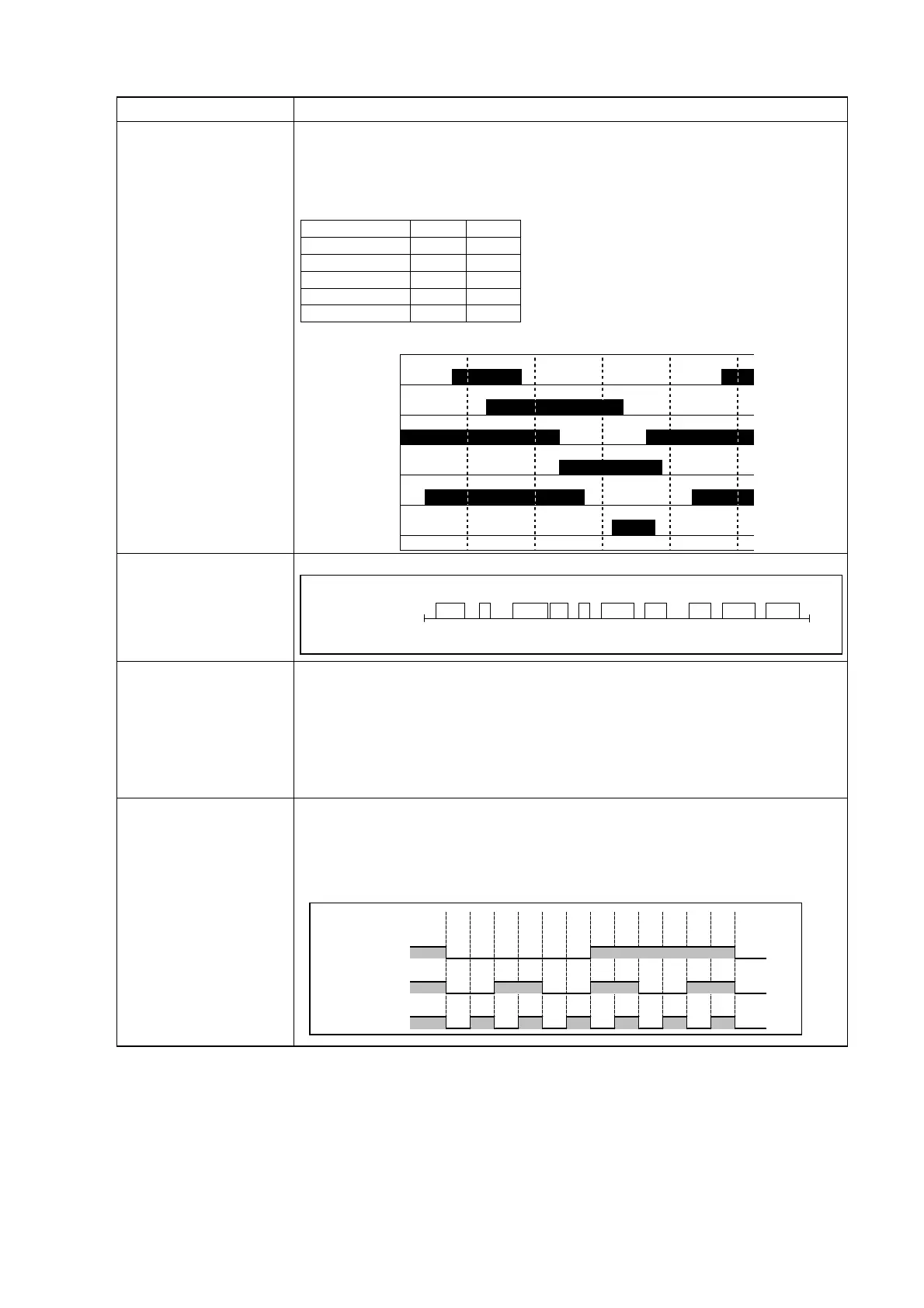

Functions
Function Description
Switch Output
Function
The operating principle is the same as the mechanical cam disk and limit
switch format. ON/OFF settings are designated at the Controller, and switch
output ON/OFF operations occur according to the rotation angle of the Sensor.
＜
Ex
＞
ON Angle OFF Angle

0
゜  
90
゜ 
180
゜
270
゜
0
゜
90
゜
Switch output 1
Switch output 2
Switch output 3
Switch output N
Switch output 1
75
゜
165
゜
Switch output 2
120
゜
300
゜
Switch output 3
320
゜
210
゜
:
210
゜
350
゜
:
30
゜
250
゜
Switch output N
280
゜
340
゜
Multi-Dog Function
Up to 10 ON/OFF values (dogs) can be designated for each switch.
1 2 3 4 5 6 7 8 9 10
Protected Switch
Function
The primary feature of the Varicam system is that it enables switch output
settings to be changed quickly and easily. However, there are certain switch
outputs where an easy setting change is not desirable.
The “Protected Switch” function is used in such cases to prevent the setting
from being changed in the usual manner. To change or delete a protected
switch, the Protected Switch function must first be canceled.
The Protected Switch function can be used for switch Nos. 1-10.
Timing Pulse Output
This output, which consists of ON/OFF signal outputs evenly spaced through 1
revolution, is convenient for detecting the rotation speed. 60, 180, or 360(per
revolution) timing pulse types can be selected.
●Current Position Value & Pulse Output

C
urrent Position Value 359.5 0 0.5 11.5 2 2.5 3 3.5 4 4.5 5 5.5
Timing Pulse output ON
（60-pulse） OFF
Timing Pulse output ON
（180-pulse） OFF
Timing Pulse output ON
（360-pulse） OFF
0
゜
360
゜
(0
゜
)
Switch output
ON
OFF
●A-4●
