5-2-2.

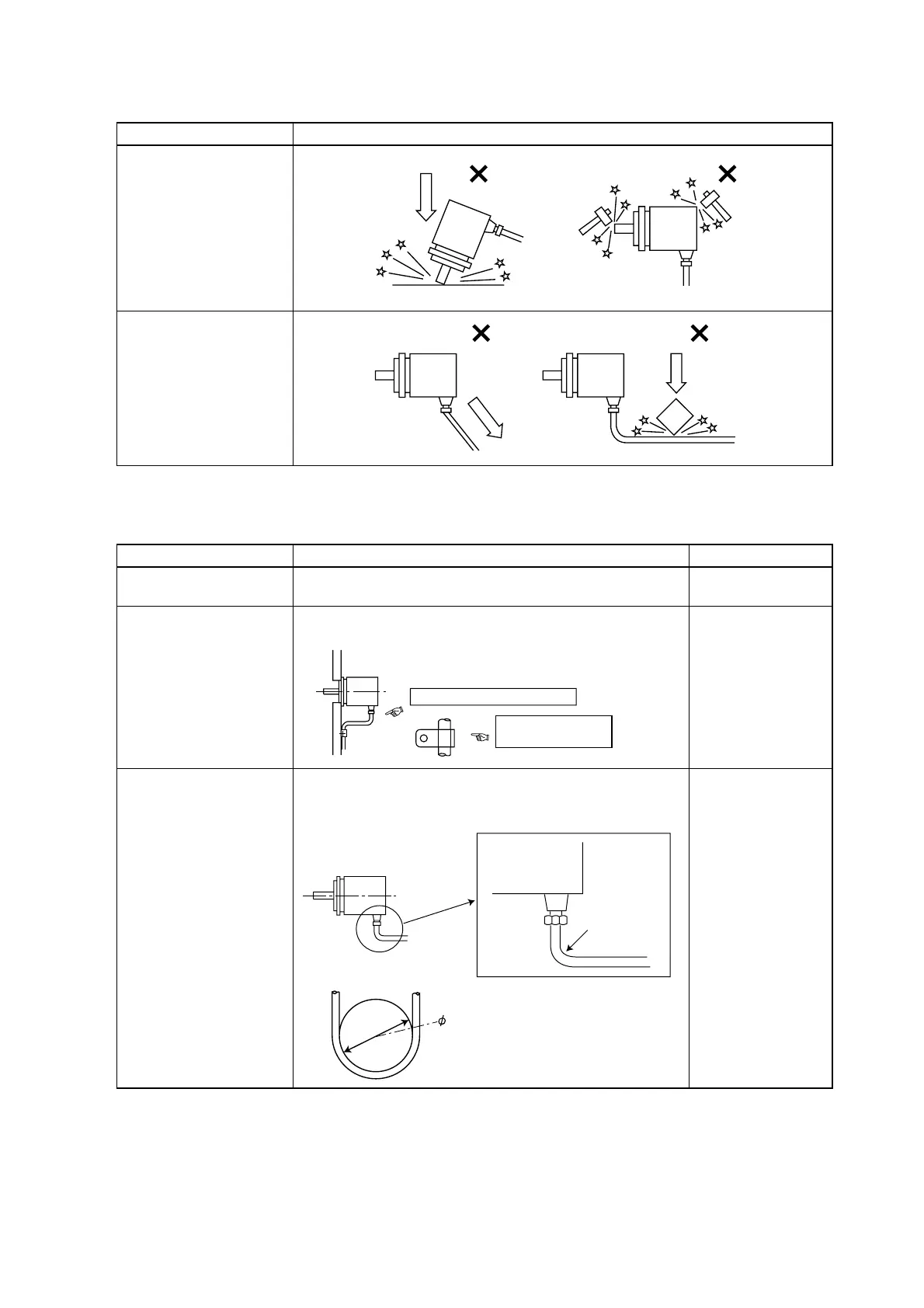

Sensor Mounting Procedure & Precautions
●
Sensor Handling
Item Description
Never drop the Sensor, or
subject it to excessive
forces or shocks.
Avoid stepping on, or
applying excessive stress
to the cable.
●
Sensor Body
Item Description Remarks
(1) Mounting dimensions
①Refer to the outline drawing for the Sensor model in question
to determine the mounting dimensions.
(2) Cable port
①When possible, the cable port should be facing downward.
(3) Cable
①The bend diameter for movable parts should never be less
than 150mm (robot cable).
Do not use the
standard cable for
movable parts.
●B-3●
Cable port should face downward.
Use cable clamps, etc.,
to secure the cable.
R40 or more
150 or more
