5-2.
Mounting Procedure & Precautions
The Controller and Sensor installation procedure and precautions are described in this section. Refer to
item 3 (Outer Dimensions) at the Specifications Section for further mounting information.
5-2-1.
Controller Mounting Procedure & Precautions
When installing the Controller, the following conditions and precautions should be observed.
●
Installation Site
The following conditions should be satisfied:
1) The Controller should not be exposed to direct sunlight.
2) The ambient temperature should be kept within a 0-55℃ range.
3) The ambient humidity should be kept within a 20-90% RH range.
4) Avoid areas where condensation is likely (high humidity areas with extreme temperature changes).
5) Avoid areas where dust is excessive.
6) Avoid areas containing high levels of salt or rust.
7) The site should be free of flammable and corrosive gases.
8) The site should be away from splashing water, oil, or chemicals.
9) Avoid areas where vibration and shocks are excessive.
●
Installation Precautions
1) Either secure the unit with 2 M4 screws, or secure it to a DIN rail.
(Recommended DIN rail: PFP100N (2) (Omron Co.)
2) In order to improve noise resistance, install as far away as possible from high-voltage and power cables.

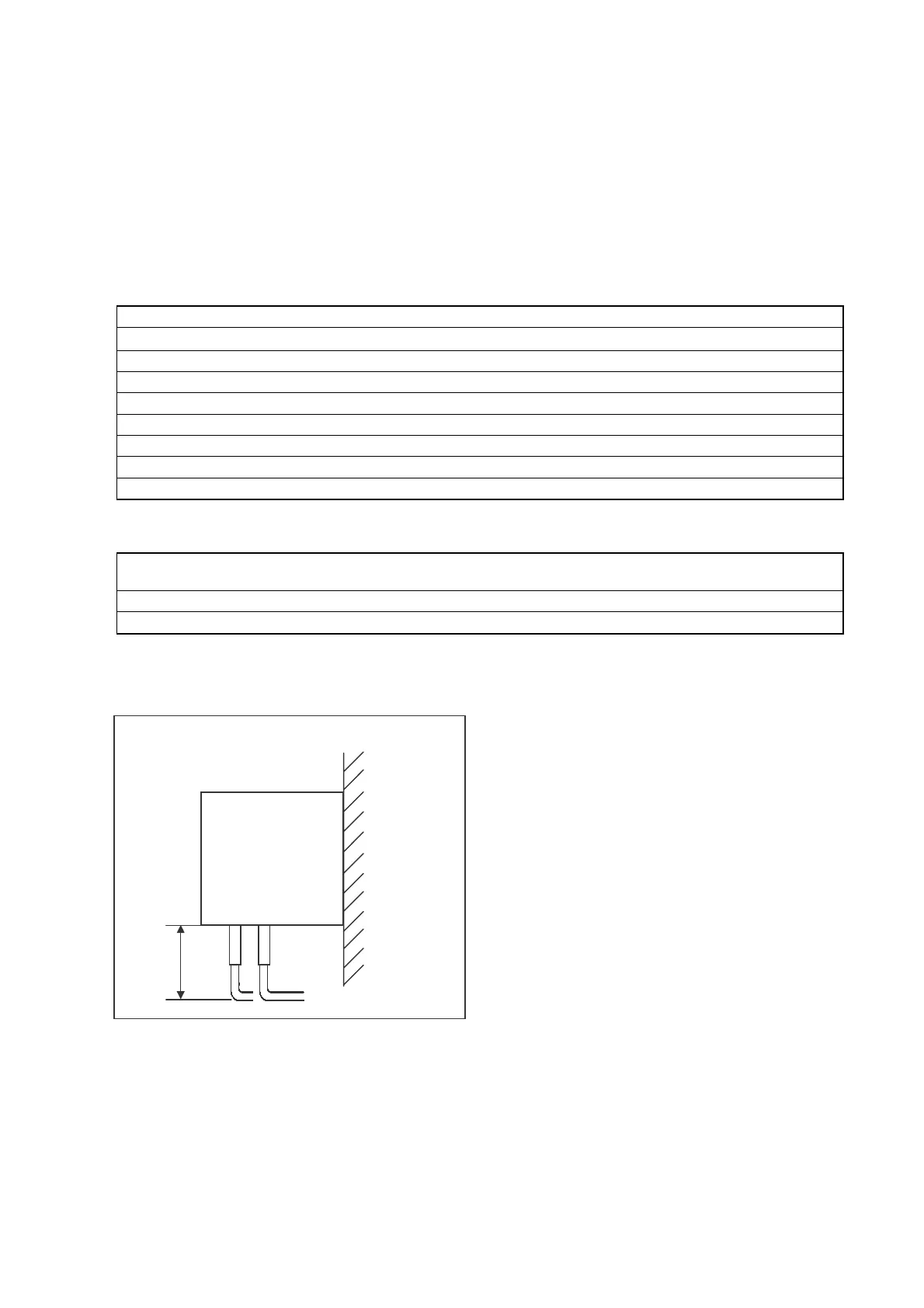

3) A space of approximately 85mm is required beneath the Controller to plug in and unplug the connectors.
(85)
Controller
●B-2●
