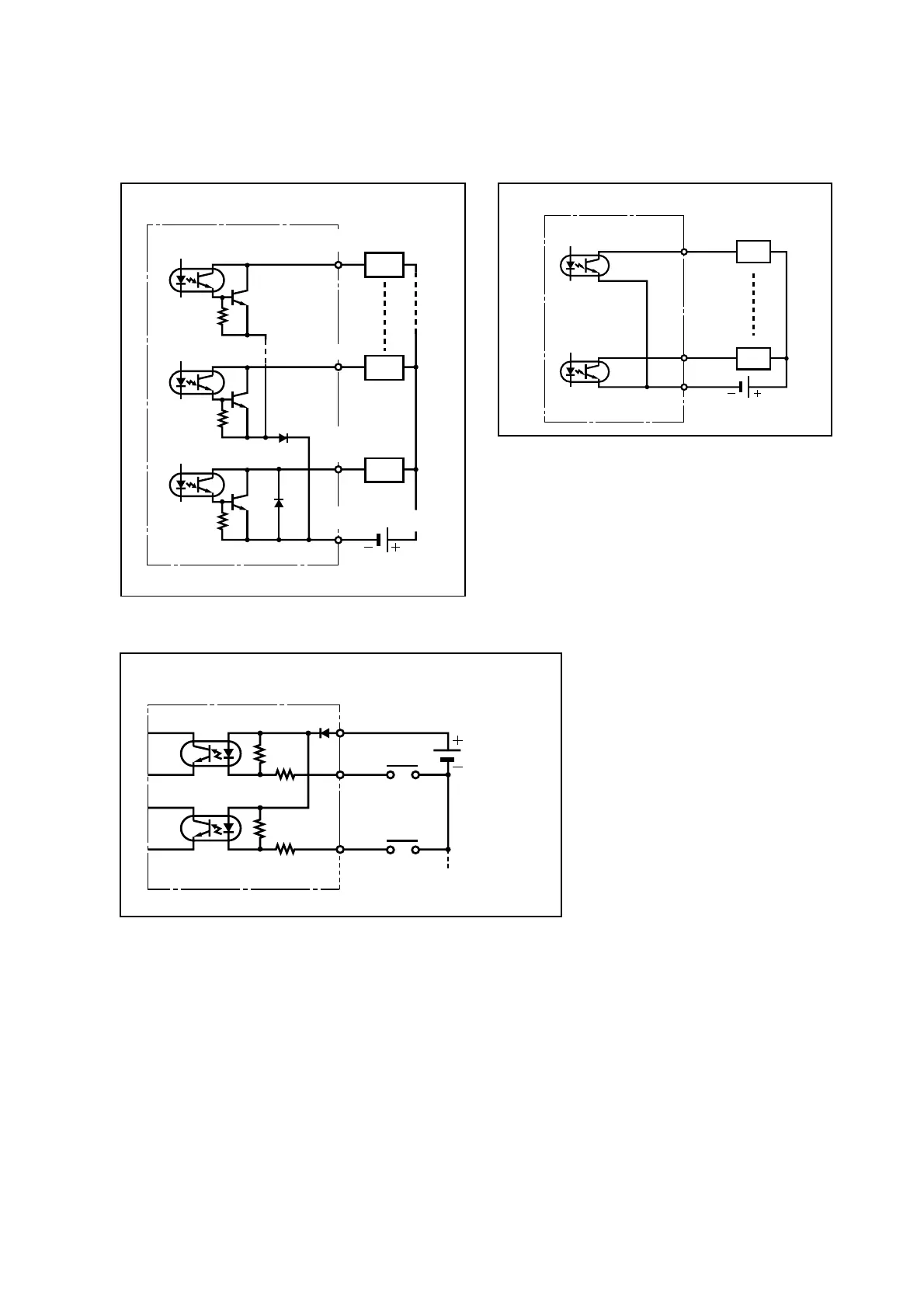

6-3-3.
Circuit Diagram
(1) Outputs
(2) Inputs
●B-8●
[1] Switch outputs, System Ready, timing
pulse, and Program No.
[2] Current position and latch pulse
Switch outputs 1-24
System Ready
Timing
Pulse
Internal circuit
L
L
0V output common
30VDC Max.
L
Display
Internal circuit
L
L
30VDC Max.
+24V input common
HOLD input
Internal circuit
30VDC
Max.
Program No. input
