NSD Varicam VS-5ED User Manual

6-3-5.

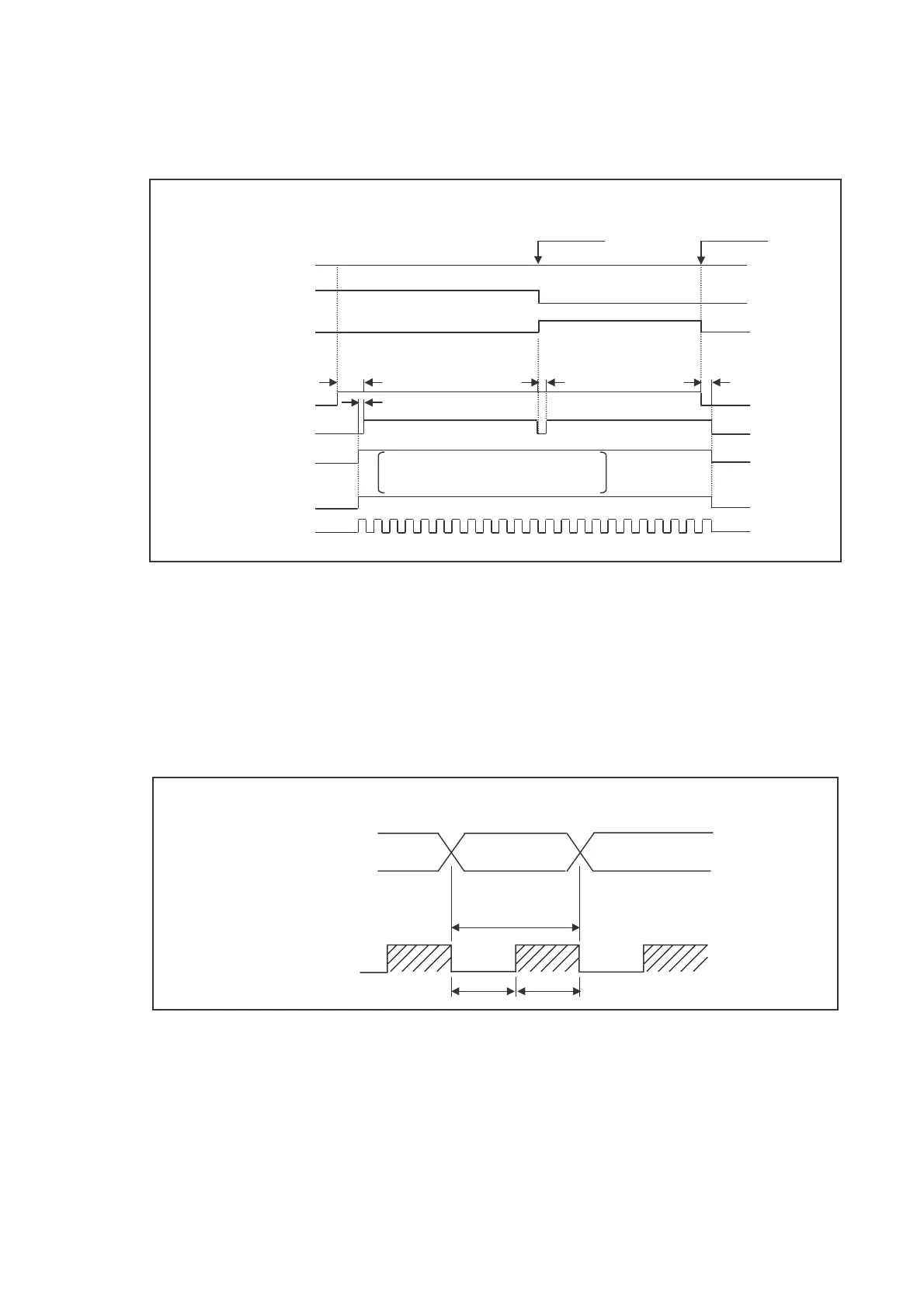

Signal Timing
(1) Program No. Input & Switch Output (For VS-5ED and VS-5EX)
When the Program No. is changed by an external input, the output timing will be as shown
below.
Note: When the Program No. is changed, the System Ready signal switches OFF for
approximately 2 seconds, and a “HOLD” status is established for the switch outputs and timing
pulse. Use care when designating the signal inputs.
(2) Current Position Output & Latch Pulse (For VS-5ED & VS-5EX)
The current position value stabilizes at the leading edge of the latch pulse. Therefore, the
current position value should be read at that time.
T2≒T1÷2
(The T1 initial setting should be designated as 0.352ms, 17.6ms, or 35.2ms.)
Power OFF
Assuming that power is switched
ON with Program No.2 selected.
Program No. input
1
2
4
T1
T2 T3
ON
OFF
●B-12●
Change to Program No.4
Power
System Ready
Switch output
Switch output
Timing pulse output
Approx. 2.7s Approx. 2s Approx. 0.01s
Approx. 20
μ
s
Switch output ON/OFF switching occurs
according to the setting values.
Current position value
Latch pulse
Data changes Data changes
