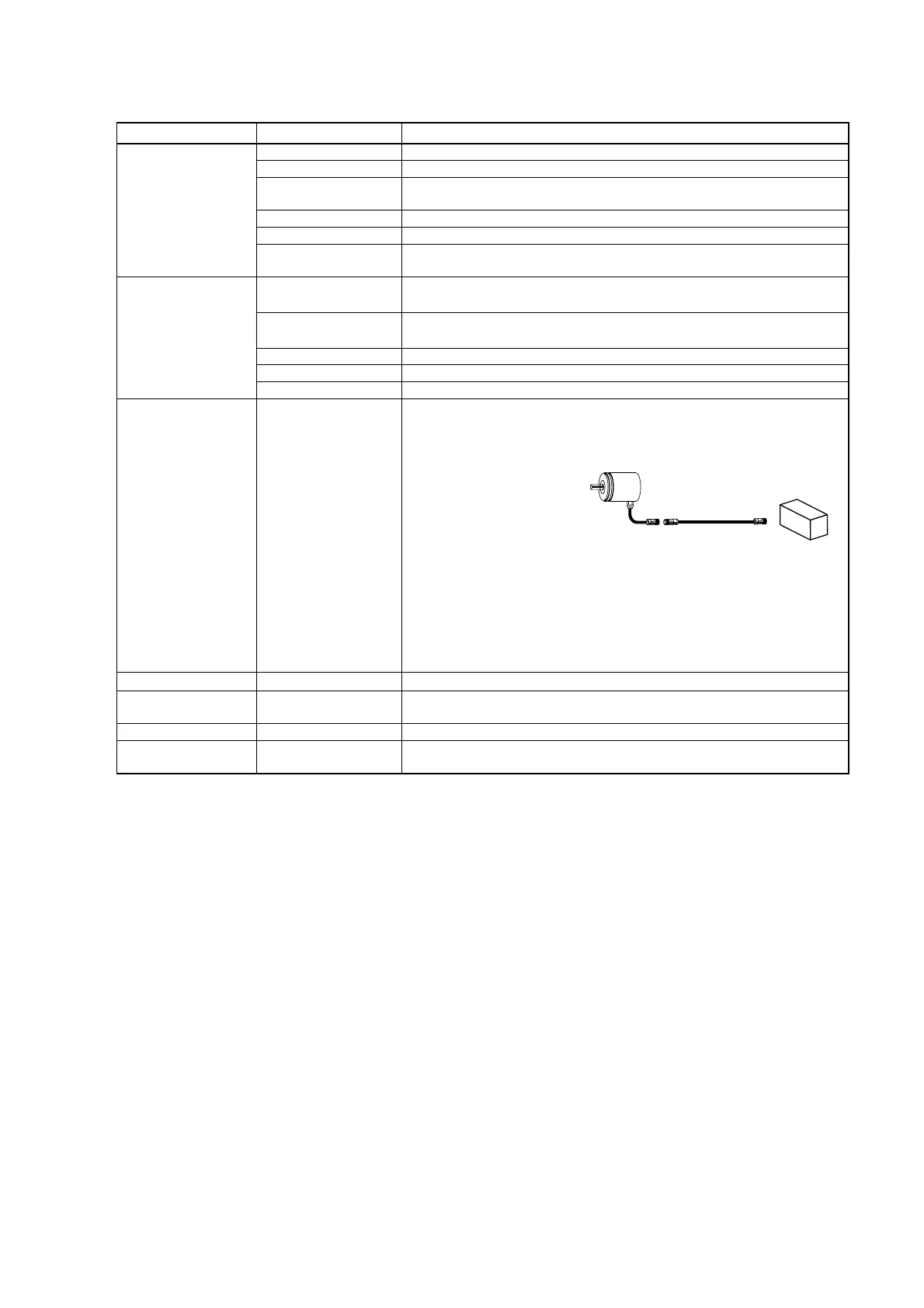

Model List
Select the appropriate Model from the Table below.
Name Model Description
VS-5E 1Program, 24-point output, Power voltage 100VAC
VS-5ED 8 Programs, 24-point output, Power voltage 100VAC
VS-5EX
16 Programs, 40 point output; or 32 Programs, 24-point output, Power
voltage 100VAC
VS-5E-1 1 Program, 24-point output, Power voltage 24VDC
VS-5ED-1 8 Program, 24-point output, Power voltage 24VDC
Controller
VS-5EX-1
16 Programs, 40-point output; or 32 Programs, 24-point output, Power
voltage 24VDC
VRE-P062SAC
Outer shape: 62 dia. shaft type: Notched, with servo mounting fixture
(
*1
).
VRE-P062SBC
Outer shape: 62 dia. shaft type: Keyway, with servo mounting fixture
(
*1
).
VRE-P062FAC Outer shape: 62 dia. shaft type: Notched, with flange mounting format.
VRE-P062FBC Outer shape: 62 dia. shaft type: Keyway, with flange mounting format.
Sensor
VRE-P028SAC Outer shape: 28 dia. shaft type: Notched, with servo mounting fixture.
Extension cable 3P-S-0102-2
3P-S-0102-3
3P-S-0102-5
3P-S-0102-8
3P-S-0102-10
3P-S-0102-15
3P-S-0102-20
3P-S-0102-30
3P-S-0102-50
3P-S-0102-100
3P-RBT-0102-3
3P-RBT-0102-5
3P-RBT-0102-10
3P-RBT-0102-15
3P-RBT-0102-20
3P-RBT-0102-30
3P-RBT-0102-50
Standard cable
Robotic cable
2m
3m
5m
8m
10m
15m
20m
30m
50m
100m
3m
5m
10m
15m
20m
30m
50m
Sensor Extension cable Controller
Panel-mount fixture
VS-K05
Reinforced servo
mounting fixture
SH-01 Can be used with the VRE-P062SAC and VRE-P062SBC.
L-Shaped flange RB-01 Can be used with the VRE-P062.
External cable VS-C05-11m
VS-C05-22m
Can be used at either the switch output or BCD connector.
*1. The sensor’s servo mounting fixture is normally secured at 3 points. However for the 62 dia. type, a reinforced
fixture which is secured at 4 points is also available. (Specify when ordering.)
*2. Designate the desired cable length (in meters) at the [ L ] box portion of the model name.
