NSD Varicam VS-5ED User Manual

9-2-4.

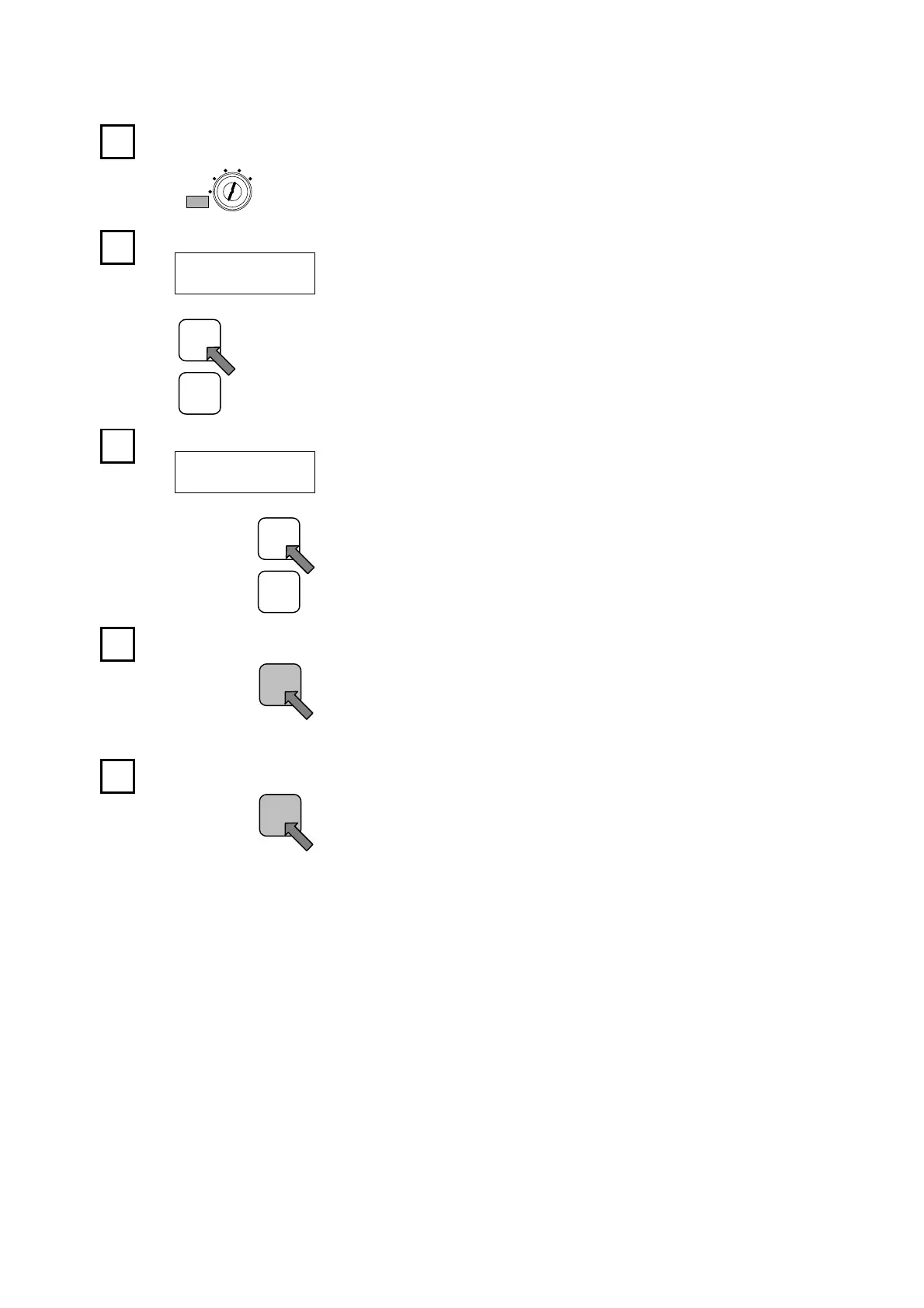

Canceling Switch Output Settings
The settings for a given switch No., and for all switch Nos. larger than that No. are canceled.
Set the key-switch to the CREAR position.
Select the desired Program No.
２
 PROGRAM
Select the desired switch No.
２ ０３
      SWITCH
Press the [SET] key.
The POSITION display will begin to flash.
To abort the CREAR operation, turn the key-switch to another
mode position.
Press the [SET] key again.
The setting will be canceled (cleared).
(In order to prevent accidental deletion of setting values, a
format is used in which the [SET] key must be pressed twice.)
Notes:
1. When the key-switch is set to the CLEAR position, the current position output and the latch pulse will be
ON. If an output HOLD status is in effect, the switch output and timing pulse output statuses will be
maintained when a change from the RUN to the CLEAR mode occurs. The System Ready output will
switch OFF at this time.
2. To cancel the settings for only one switch No., set the key-switch to the SET position, and designate the
same value for both the ON and OFF positions of that switch No.
１
１１
１
２
２２
２
３
３３
３
４
４４
４
SET
SETSET
SET
┼
─
┼
─
５
５５
５
SET
SETSET
SET
SET
TEACH
CLEAR
INIT
RUN
●C-18●
