NSD Varicam VS-5ED User Manual

6-3.

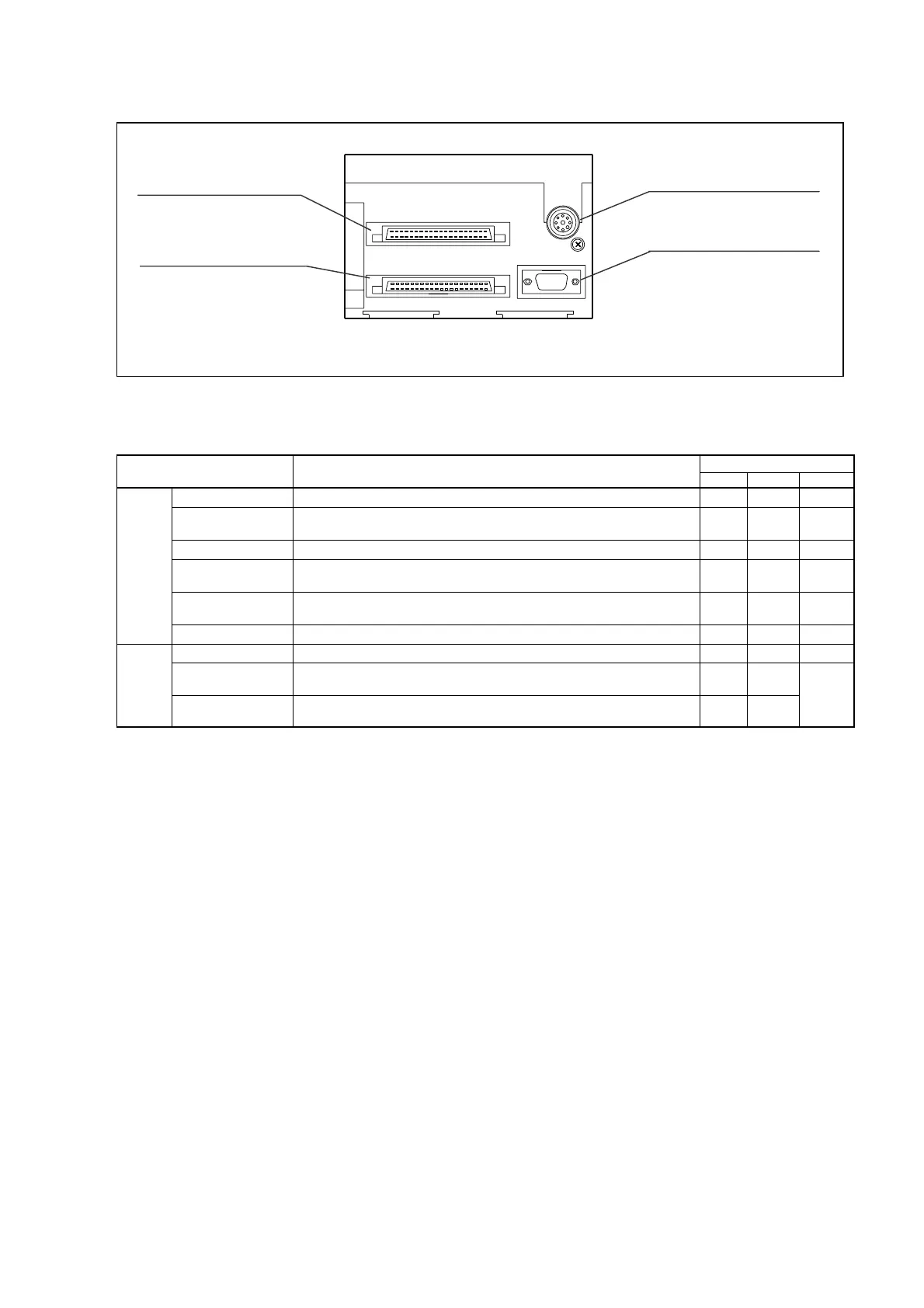

Connector Connections
6-3-1.
Connector Names & Functions
6-3-2.
Signal Names & Descriptions
Applicable Model
Name Description
VS-5E VS-5ED VS-5EX
Switch outputs ON/OFF signal outputs occur according to setting values.
○ ○ ○
System Ready
signal
Output when Controller and Sensor are functioning normally.
○ ○ ○
Timing pulse Outputs 60, 180, or 360 pulse signals per revolution.
○ ○ ○
Current position
value
BCD 3-digit + 0.5 degree unit signal output for current position
display.
○ ○
Latch pulse Latch pulse for current position output. The current position value
is stable at the leading edge of this pulse.
○ ○
Outputs
Program No. The currently selected Program No. is output.
○ ○
Program No. External Program No. input.
○ ○
Current position
HOLD
Used to prevent the current position value from changing while it
is being read by the Programmable Controller.
○
Inputs
External origin set Used for external origin setting inputs.
○
or
○
BCD OUTPUT
SWITCH OUTPUT
[1] Switch output connector
(For switch outputs, etc.)
[2] BCD connector

(For Program No. inputs and
current position outputs)
Sensor connector
Serial communication connector
The VS-5ED and VS-5EX Models are equipped with input/output connector [2].
●B-7●
(For connection to personal
computer, etc.)
