Model FZ-VS4 (15m) FZ-VSL4 (15m)
Ambient atmos-
phere
No corrosive gases
Material Cable sheath, connector: PVC
Minimum bending
radius
78 mm
Weight Approx. 1400g
*1. This data values are for reference only and not guaranteed values.

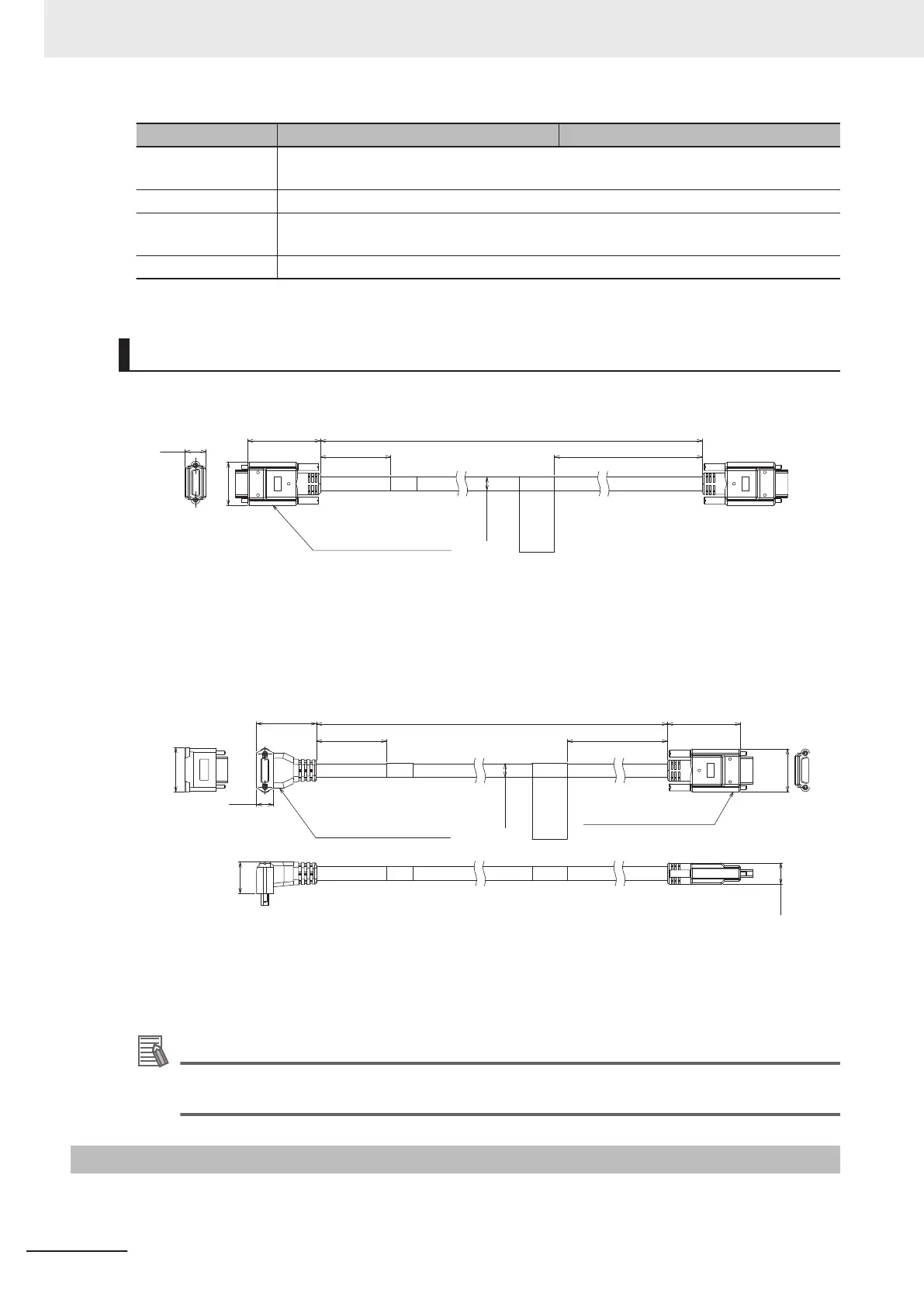

Dimensions
l
Long-distance Camera Cable: FZ-VS4
(*1)
26-pin
rectangular connector
L (*2)(42)
(100)(40)
7.8 dia.
(24)
(12)
*1. Each camera cables has polarity. Please ensure that the name plate side of the cable is con-
nected to the controller
.
*2. Cable is available in 15 m.
(Unit: mm)
l
Long-distance Right-angle Camera Cable: FZ-VSL4
(*1)
(18)
(12)
(25)
26-pin
rectangular connector
26-pin
rectangular connector
(100)
(24)
(42)L (*2)
(40)
(10)
(34)
7.8 dia.
*1. Each camera cables has polarity. Please ensure that the name plate side of the cable is con-
nected to the controller
.
*2. Cable is available in 15 m.
(Unit: mm)
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
3-3-4
Cable Connection Table
For connection of camera cables, refer to the following table.
3 Configuration
3-42
FH Series Vision System Hardware Setup Manual (Z366-E1)
