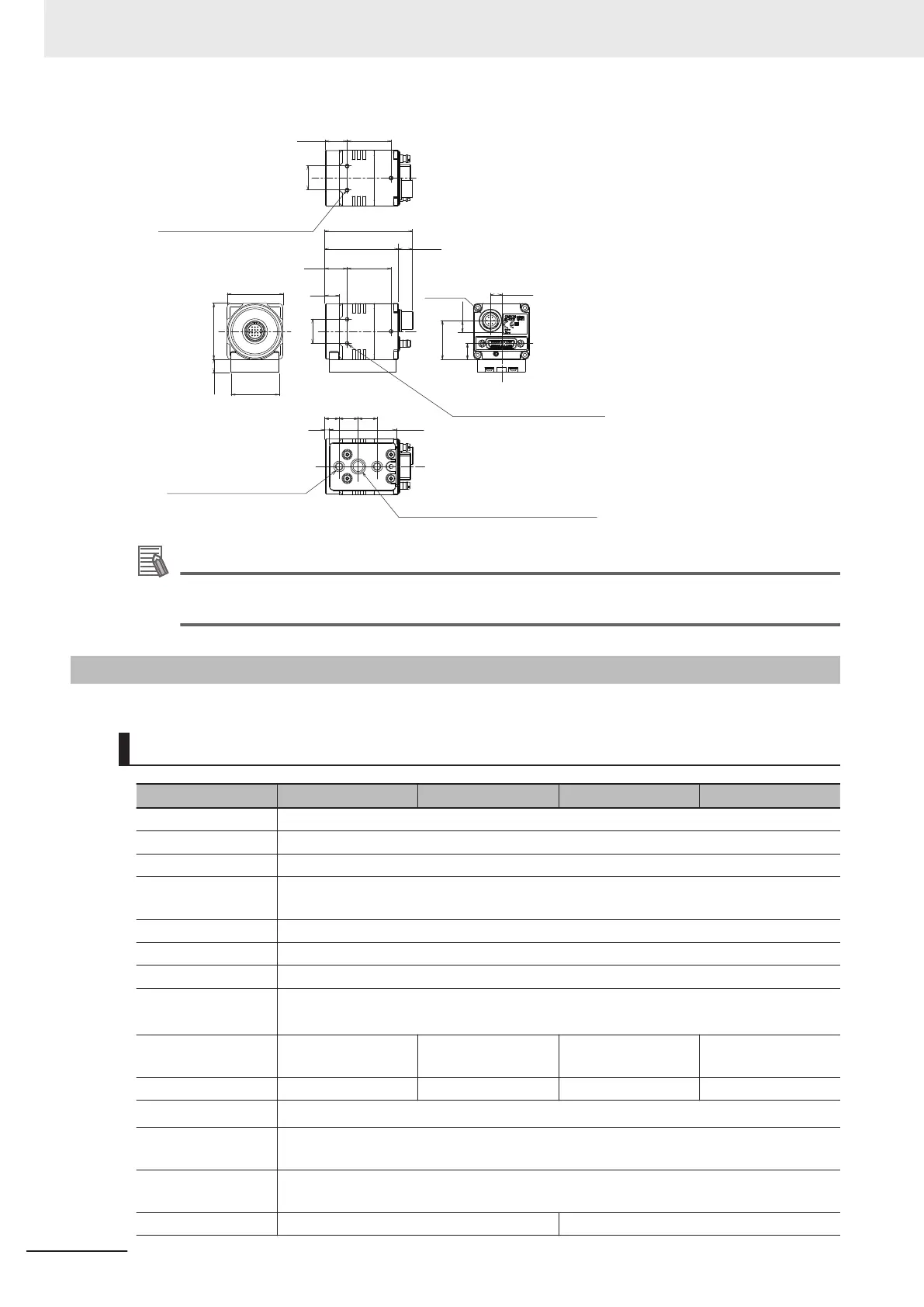

Three, M2 mounting holes
with a depth of 3.0 mm
Two, M4 mounting holes
with a depth of 5.5 mm
Three, M2 mounting holes
with a depth of 3.0 mm
(Unit: mm)
1/4” 20UNC with a depth of 5.5 mm
11 22
(43.8)
28
24
36.5
(6.5)
5.4
5.4
(8.8 dia.)
11
7
7
9.5 9.5
2
33.5
22
12
12
286.5
(8.5)
(20.7)
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
3-2-6
Intelligent Compact Digital CMOS Camera: FZ-S camera Series
Specification
Model FZ-SQ010F FZ-SQ050F FZ-SQ100F FZ-SQ100N
Image elements CMOS color image elements (1/3-inch equivalent)
Color/Monochrome Color
Effective pixels 752 (H) x 480 (V)
Imaging area H x V
(opposing corner)
4.51 x 2.88 (5.35 mm)
Pixel size 6.0 (μm) x 6.0 (μm)
Shutter function 1/250 to 1/32258
Partial function 8 to 480 lines
Frame rate (Image
Acquisition T
ime
*1
)
60 fps (16.7 ms)
Field of vision 7.5 x 4.7 to 13 x 8.2
mm
13 x 8.2 to 53 x 33
mm
53 x 33 to 240 x 153
mm
29 x 18 to 300 x 191
mm
Installation distance 38 to 60 mm 56 to 215 mm 220 to 970 mm 32 to 380 mm
LED class
*2
Risk Group2
Ambient tempera-
ture range
Operating: 0 to +50°C, Storage: -25 to +65°C
Ambient humidity
range
Operating and Storage: 35 to 85% (with no condensation)
Weight Approx. 150g Approx. 140g
3 Configuration
3-36
FH Series Vision System Hardware Setup Manual (Z366-E1)
