Omron FH-L550 Setup Manual

l

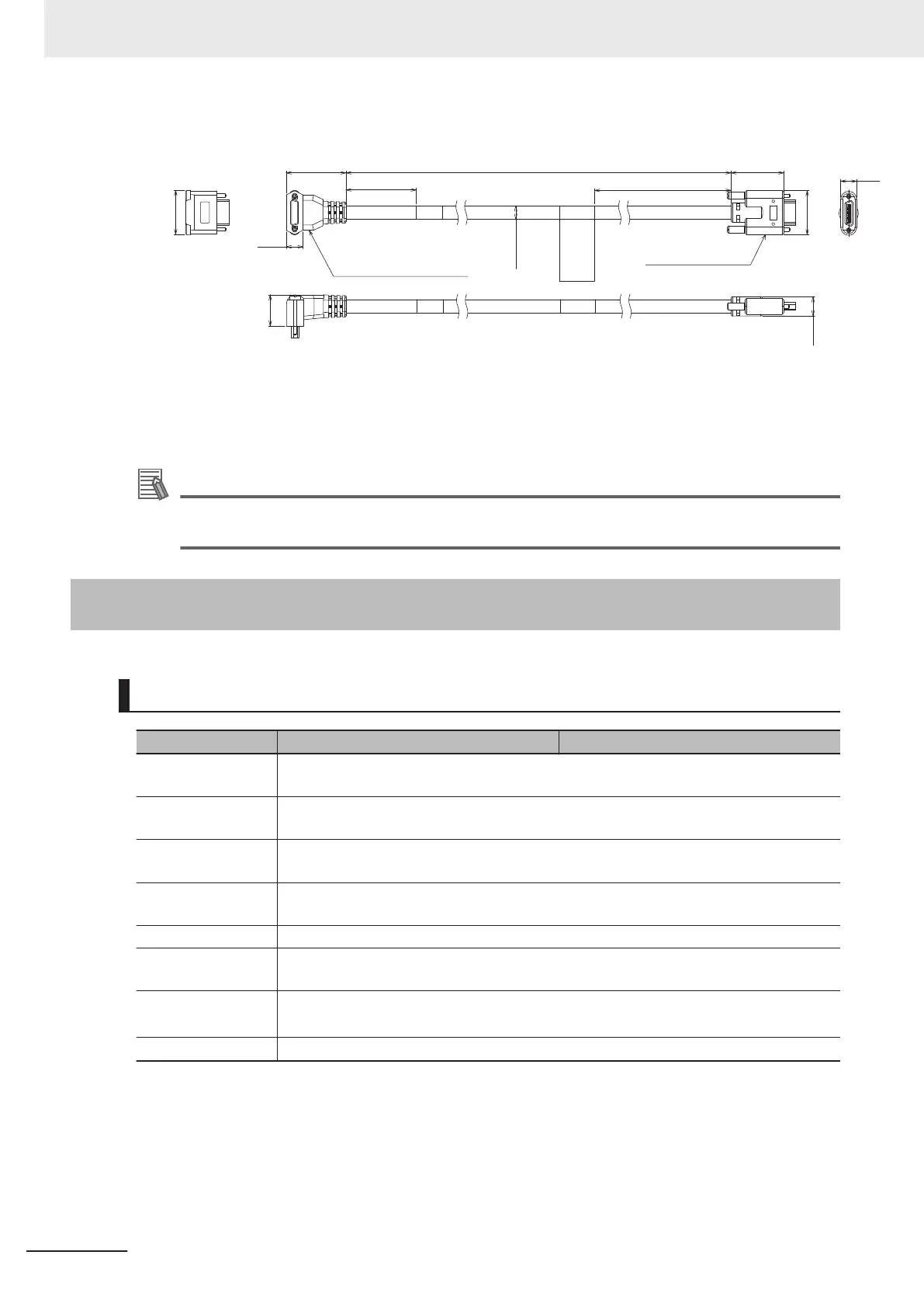

Right-angle Camera Cable: FZ-VSL3
(25)
(18)
(11)
26-pin
rectangular connector
26-pin
rectangular connector
L (*1)
(34)
7.5 dia.
(40) (100)
(10)
(30)
(25)
(9)
(*2)
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity
. Please ensure that the name plate side of the cable is con-
nected to the controller.
(Unit: mm)
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
3-3-2
Bend resistant Camera Cable and Bend resistant Right-angle
Camera Cable
Specification
Model FZ-VSB3 (2m) FZ-VSLB3 (2m)
Vibration (resisnt-
ance)
10 to 150 Hz, Single amplitude 0.15 mm, 3 directions, 8 strokes, 4 times
Ambient tempera-
ture range
Operation and storage: 0 to +65°C (with no icing or condensation)
Ambient humidity
range
Operation and storage: 40 to 70% (with no condensation)
Ambient atmos-
phere
No corrosive gases
Material Cable sheath, connector: PVC
Minimum bending
radius
69 mm
Bend performance
*1
U-bend flexing: 1 million times or more, Bending radius: 50 mm, Stroke: 300 mm, Speed:
30/minute
Weight Approx. 180g
*1. This data values are for reference only and not guaranteed values.
3 Configuration
3-40
FH Series Vision System Hardware Setup Manual (Z366-E1)
