Omron FH-L550 Setup Manual

3-3-5
Cable Extension Units
You can extent the distance between the Sensor Controller and Camera by using cable extension
units.
Specification
Model FZ-VSJ
Supply Voltage
*1
11.5 to 13.5 VDC
Current consump-
tion
*2
1.5 A max.
Ambient tempera-
ture range
Operating: 0 to +50°C; Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity
range
Operating and Storage: 35 to 85% (with no condensation)
Weight Approx. 240g
Accessories Instruction Sheet and 4 mounting screws
*1. A 12-VDC power supply must be provided to the Cable Extension Unit when connecting the Intelligent Com-
pact Digital Camera, or the Lighting Controller
.
*2. The current consumption shows when connecting the Cable Extension Unit to an external power supply.

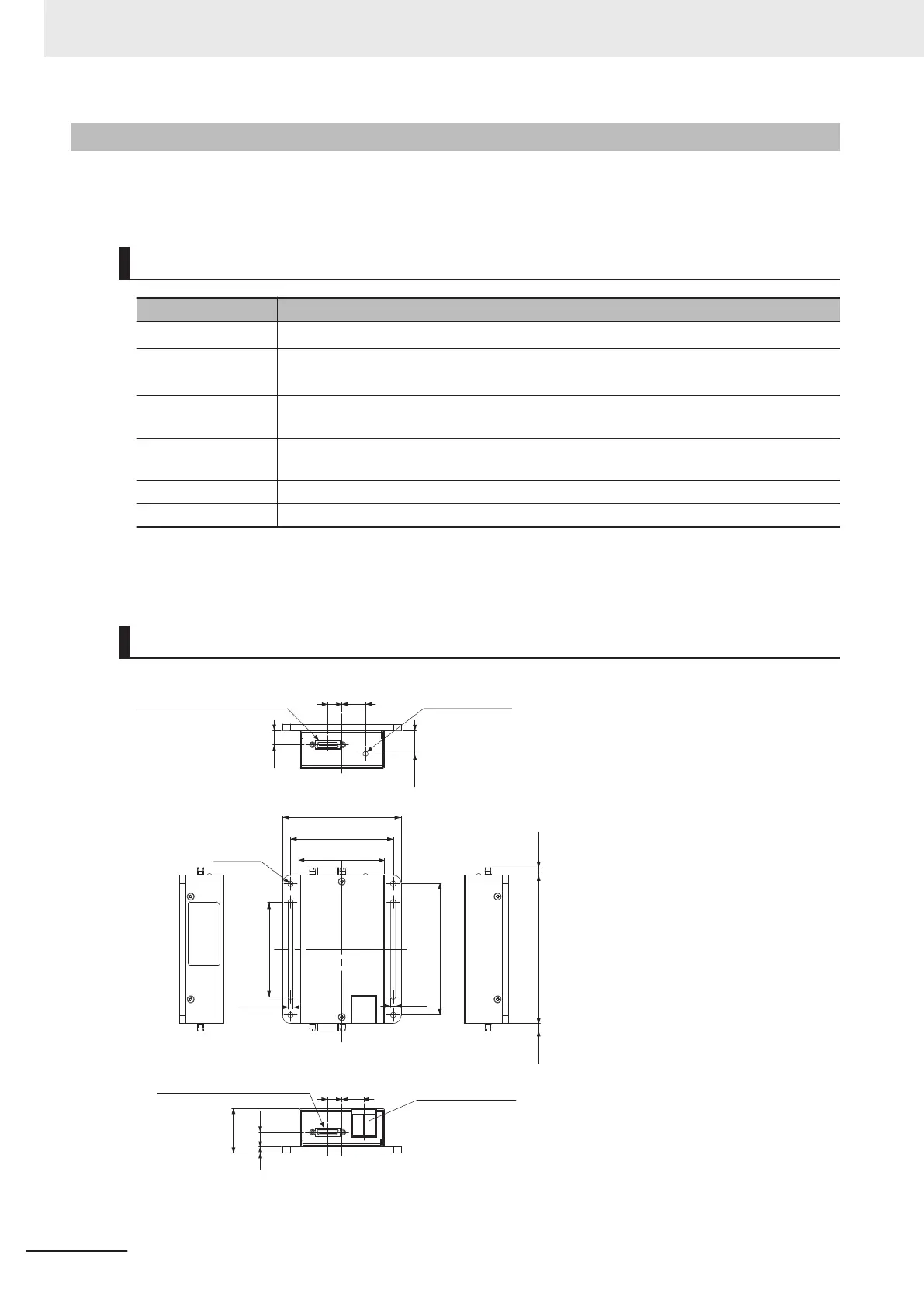

Dimensions
83
65
60
3.2
3.2
75
54
28
4
149
9.1
Camera Cable Connector
(Controller side)
Power terminal
14.9
15
9
9.1
Camera Cable Connector
(Camera side)
POWER LED
Indicator
93.8 4.854.85
φ4-3.4
(Unit: mm)
