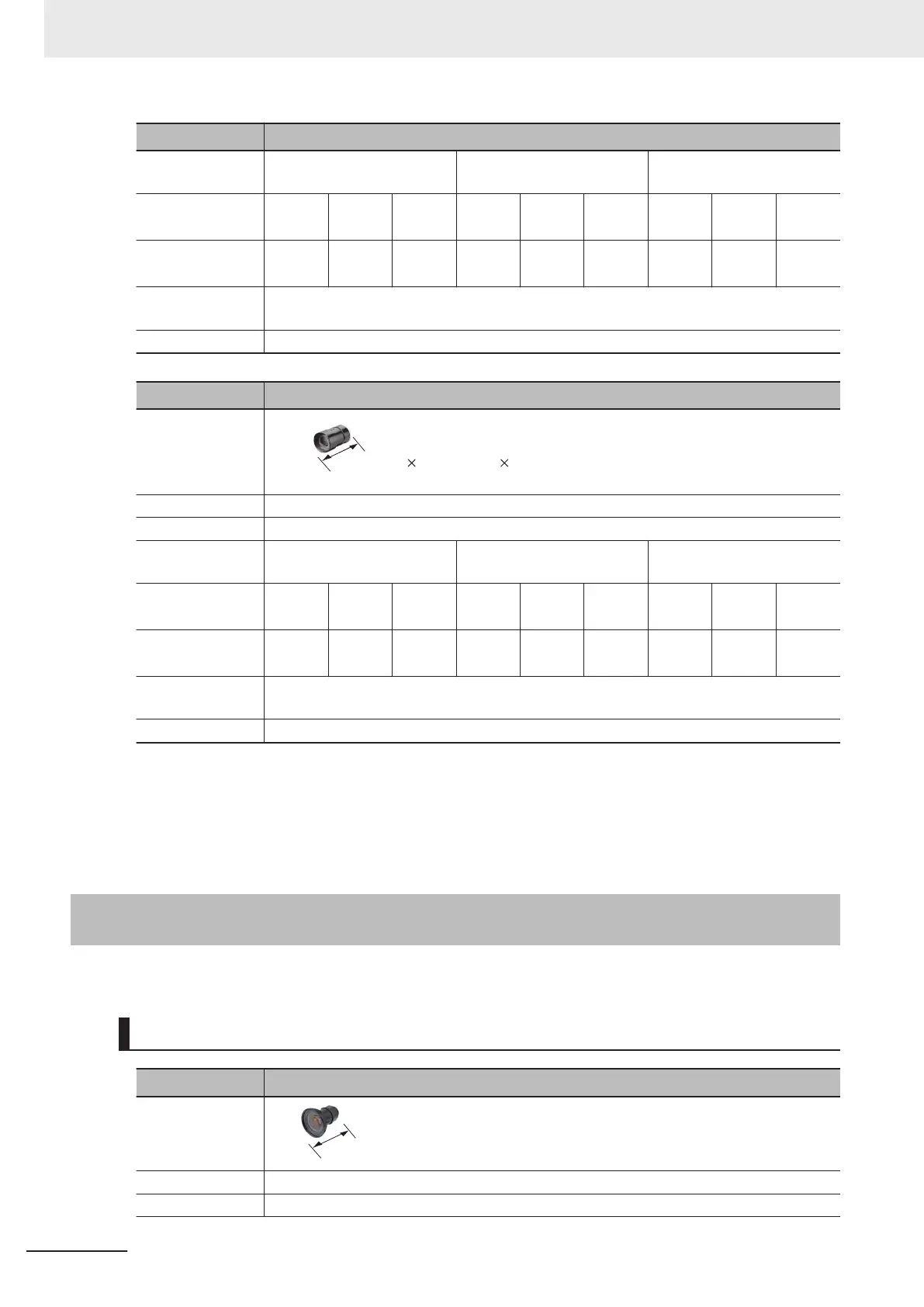

Model
3Z4S-LE VS-MCH75-£££££
*1
Optical magnifica-
tion
0.025x 0.10x 0.15x
Aperture (fixed F
No.)
*2
2.5 5.6 8 2.5 5.6 8 2.5 5.6 8
Depth of field
(mm)
*3
262.0 735.0 1050.0 17.6 49.3 70.4 8.2 22.9 32.7
Maximum sensor
size
1 inch
Mount C mount
Model
3Z4S-LE VS-MCH100-£££££
*1
Appearance/
Dimensions
(Unit: mm)
66.5 [0.025 ] to 76.3 [0.10 ]
40dia.
Focal length (mm) 100
Filter size M35.5 P0.5
Optical magnifica-
tion
0.025x 0.05x 0.10x
Aperture (fixed F
No.)
*2
2.8 5.6 8 2.8 5.6 8 2.8 5.6 8
Depth of field
(mm)
*3
262.0 735.0 1050.0 94.1 188.2 268.8 17.6 49.3 70.4
Maximum sensor
size
1 inch
Mount C mount
*1.
Insert the aperture into £££££ in the model number as follows.
F = 2.0 to 2.8: blank
F = 5.6: FN056
F = 8: FN080
*2. F-number can be selected from maximum aperture, 5.6, and 8.0.
*3. When circle of least confusion is 40 μm.
3-4-9
Vibration and Shock Resistant C-mount Lens for 1-inch Image
Sensor (VS-MCH1 Series)
FH-S£02, FH-S£04, or FH-S£21R are recommended.
Specification
Model
3Z4S-LE VS-MC08H1-£££££
*1
Appearance/
Dimensions
(Unit: mm)
59.0[0.025x] to 60.2[0.15x]
59dia.
Focal length (mm) 8
Filter size M55.0 P0.75
3 Configuration
3-60
FH Series Vision System Hardware Setup Manual (Z366-E1)
