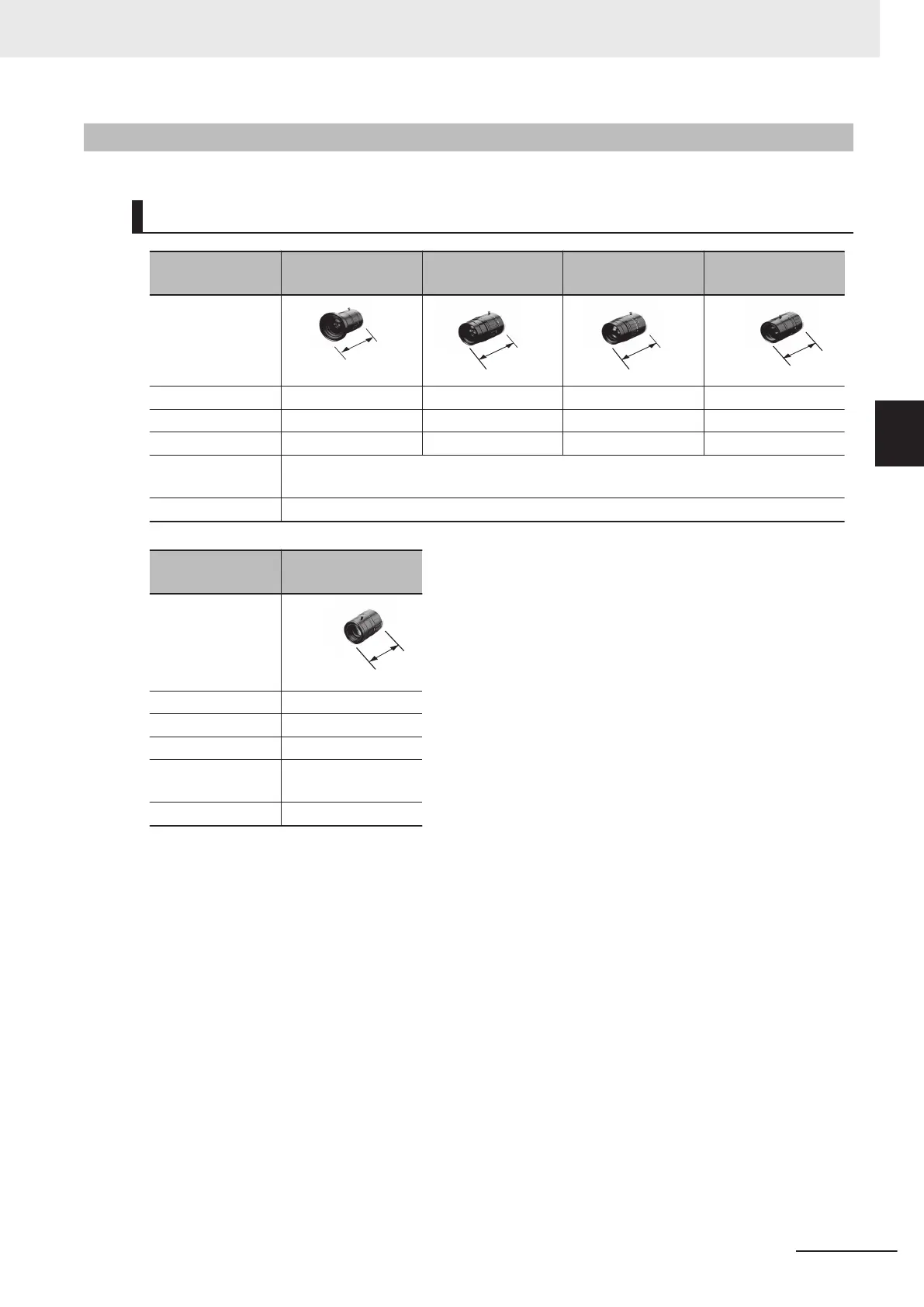

C-mount Lens for 4/3-inch Image Sensor (VS-LLD Series)
Specification
Model
3Z4S-LE
VS-LLD12.5
3Z4S-LE
VS-LLD18
3Z4S-LE
VS-LLD25
3Z4S-LE
VS-LLD50
Appearance/
Dimensions
(Unit: mm)
84.3 to 86.1
66 dia.
82.8 to 84.9
50.5 dia.
82.8 to 84.9
50.5 dia.
82.5
50.5 dia.
Focal length (mm) 12.5 18 25 35
Aperture (F No.) 2.5 to 16 2.1 to 16 2.1 to 16 2.2 to 16
Filter size M62.0 P0.75 M43.0 P0.75 M43.0 P0.75 M46.0 P0.75
Maximum sensor
size
4/3 inch
Mount C mount
Model
3Z4S-LE
VS-LLD50
Appearance/
Dimensions
(Unit: mm)
73
50.5 dia.
Focal length (mm) 50
Aperture (F No.) 2.2 to 16
Filter size M46 P0.75
Maximum sensor
size
4/3 inch
Mount C mount
3 Configuration
3-53
FH Series Vision System Hardware Setup Manual (Z366-E1)
3-4 Lens
3
3-4-4 C-mount Lens for 4/3-inch Image Sensor (VS-LLD Series)
